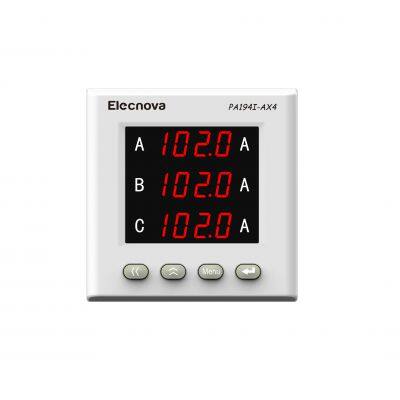

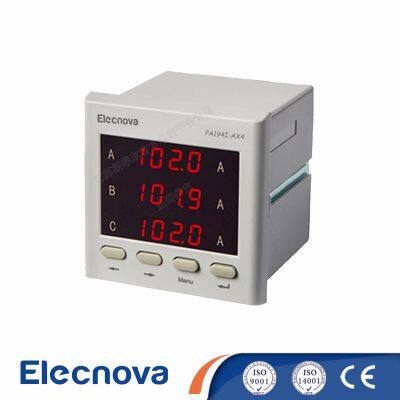

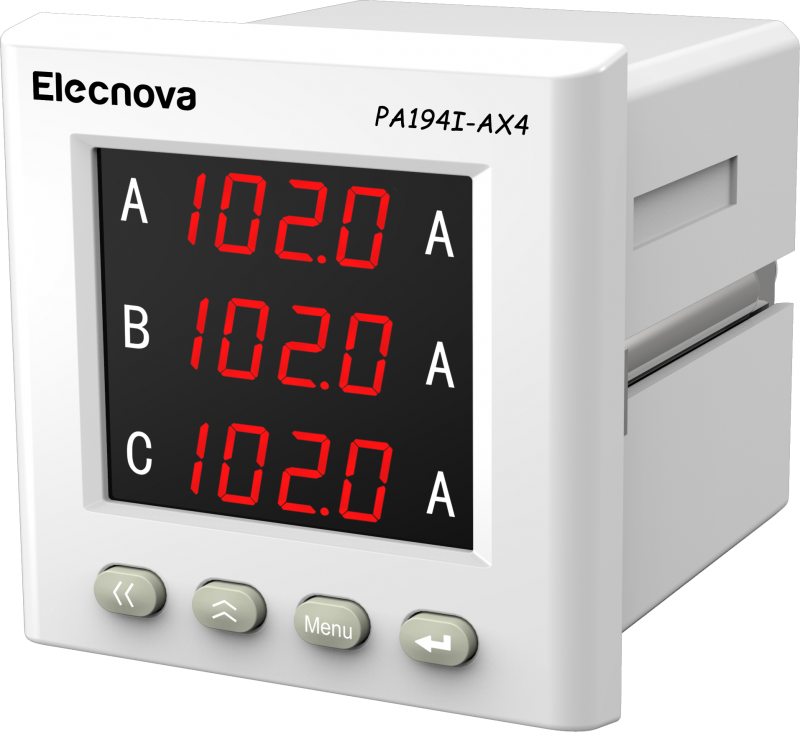

PA194I-AX4 74*74mm high precision three phase LED digital display AC ampere meter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

This series digital display AC voltage meters have high environment adaptability because their working temperature range is-40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.

Technical Parameter

Accuracy			0.2%, 0.5%(defaulted)
Data refresh rate			1s
Input	Rated value	AC 1A, 5A
		Range	(0.005 ~ 1.2)In
		Overload	Continuous 1.2In,Instantaneous 10In/5s
		Frequency	45~65Hz
Power supply	Working range	AC 80~270V (50/60Hz), DC 80~270V,DC 24V
Power supply		Consumption	≤5VA
Digital input			Dry contact mode
Relay output			Contact capacity (resistive):AC 5A/250V, DC 5A/30V
Analog output	Current output	DC 4~20mA, 0~20mA etc., load ≤350Ω
Analog output		Voltage output	DC 0~5V, 1~5V etc., load ≥20kΩ
Communication			RS485 interface,Modbus-RTU protocol,baud rate 2400~9600bps
Environment
Protection degree			Panel IP64, case IP20
Working temperature			-40~70℃(LED), -25~70℃(LCD)
Storage temperature			-40~85℃
Relative humidity			≤93%RH
Insulating ability			Between power and input or output≥AC2kV,
Between input and output≥AC1kV			Between input and output≥AC1kV

Monitoring Solution

PD194E-2H4 smart energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.

Recommend Products

Packing & Delivery

1. Bubble film packaging

2. Suitable boxes packaging

3. Carton packaging

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?

A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?

A: Free sample is available, freight collect.

Q: What is your terms of payment ?

A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
