Product Description

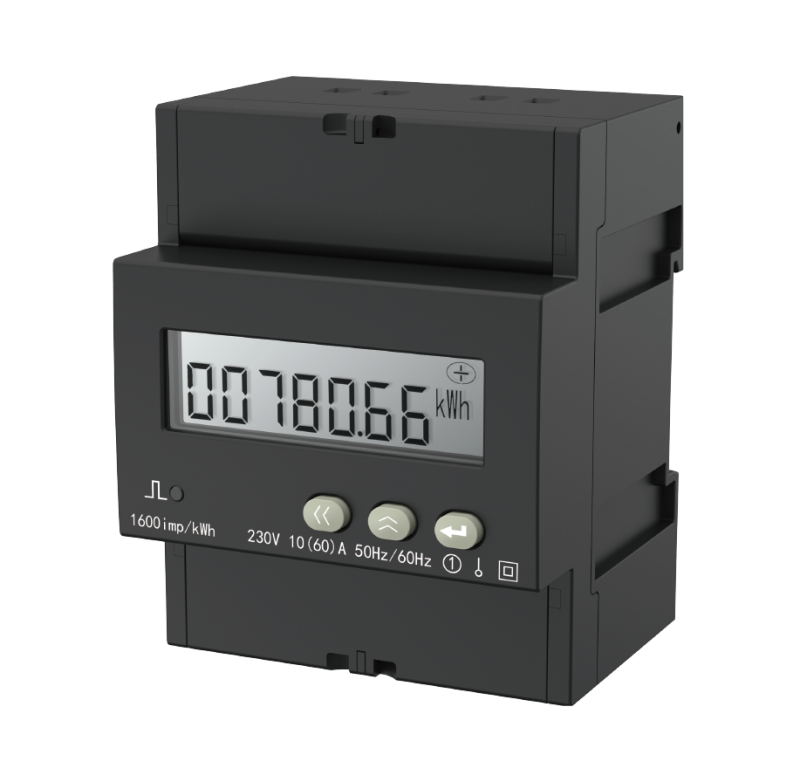

Product Name: DDS1946-L 4P single phase din rail 5-100A direct input power meter
The rail-mounted meter uses an modular design, which has the advantages of small size, easy installation, and easy networking.It is easy to achieve terminal lighting energy measurement,and it is convenient to retrofit the lighting system with an electric meter.
Technical Parameter
DDS1946-1P DDSF1946-1P | DDS1946-2P DDSF1946-2P | DDS1946 DDSF1946 | DSS1946 DSSF1946 | DTS1946 DTSF1946 | |||||||
Normal Voltage | 230V | 230V | 230V | 3*400V | 3*230/400V | ||||||
Current | Direct input | 5(40)A | 5(100)A | 5(100)A | 5(100)A | 5(100)A | |||||
Via CT input | - | - | 1.5(6)A | 1.5(6)A | 1.5(6)A | ||||||
Accuracy | Class 1(Optional:Class 0.5S) | ||||||||||
Frequency | 45Hz~65Hz | ||||||||||
Voltage Range | 0.8Un~1.2Un | ||||||||||
Start Current | Direct input | 0.004Ib | |||||||||
Via CT input | 0.002In | ||||||||||
Consumption | <2VA | ||||||||||
Energy Pulse | 1 output, pulse width (80±20%) ms | ||||||||||
RTC Error | ≤0.5s/day | ||||||||||
Communication | RS485, Modbus-RTU, 2-wire, up to 9600bps | ||||||||||
IP Degree | Front: IP51 | ||||||||||
Operating Temperature | -10℃ ~ 55℃ | ||||||||||
Storage Temperature | -25℃ ~ 70℃ | ||||||||||
Relative Humidity | ≤93% | ||||||||||
Certificate | CE ISO9001,MID | ||||||||||
Related Products
COMM Module Selection
PD194Z-C10
Communication：LoRa wireless transmission module
S12 Gateway
Communication：Modbus-RTU/DLT645 to Modbus-TCP
S15 Gateway
Communication：2/3/4G, NB-IoT, WiFi, Bluetooth, LoRaWAN, ZigBee
Application
■ Energy management
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter
