DTS1946-L 3P4W Factory Price Real Time Power Monitoring Digital Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DDSF1946-1P Time Usage Register ToU Din Rail Mounted Energy MeterNegotiableMOQ: 1 -
DDSF1946-1P+ ToU Din Rail Mounted Bi-directional KW-hour MeterNegotiableMOQ: 1
-
GPRS Communication 31st Harmonic Remote Power Monitoring Energy MeterNegotiableMOQ: 1
-
NB-IoT Data Acquisition Energy Management Power MeterNegotiableMOQ: 1
-
LoRa Communication All Parameter Measuring Bi-directional Energy MeterNegotiableMOQ: 1
Product Description

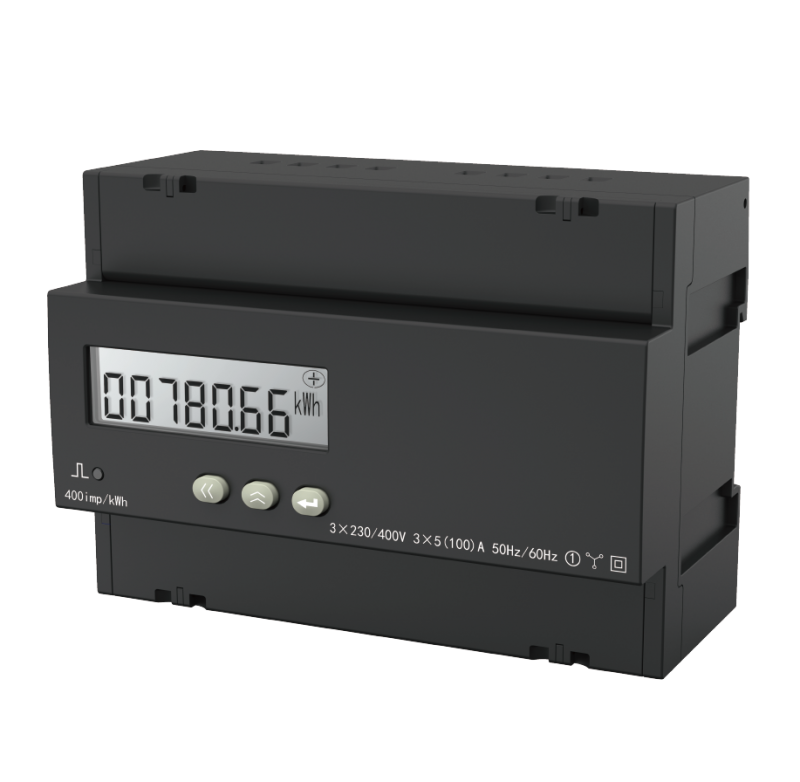

Product Name: DTS1946-L 3P4W factory price real time power monitoring digital energy meter
The rail-mounted meter uses an modular design, which has the advantages of small size, easy installation, and easy
networking.It is easy to achieve terminal lighting energy measurement,and it is convenient to retrofit the lighting system
with an electric meter.
Technical Parameter
DDS1946-1P DDSF1946-1P
|
DDS1946-2P DDSF1946-2P
|
DDS1946 DDSF1946
|
DSS1946 DSSF1946
|
DTS1946 DTSF1946
|
|||||||
Normal Voltage |
230V |
230V |
230V |
3*400V |
3*230/400V |
||||||
Current |
Direct input |
5(40)A |
5(100)A |
5(100)A |
5(100)A |
5(100)A |
|||||
Via CT input |
- |
- |
1.5(6)A |
1.5(6)A |
1.5(6)A |
||||||
Accuracy |
Class 1(Optional:Class 0.5S) |
||||||||||
Frequency |
45Hz~65Hz |
||||||||||
Voltage Range |
0.8Un~1.2Un |
||||||||||
Start Current |
Direct input |
0.004Ib |
|||||||||
Via CT input |
0.002In |
||||||||||
Consumption |
<2VA |
||||||||||
Energy Pulse |
1 output, pulse width (80±20%) ms |
||||||||||
RTC Error |
≤0.5s/day |
||||||||||
Communication |
RS485, Modbus-RTU, 2-wire, up to 9600bps |
||||||||||
IP Degree |
Front: IP51 |
||||||||||
Operating Temperature |
-10℃ ~ 55℃ |
||||||||||
Storage Temperature |
-25℃ ~ 70℃ |
||||||||||
Relative Humidity |
≤93% |
||||||||||
Certificate |
CE ISO9001 |
||||||||||
Related Products
COMM Module Selection
PD194Z-C10
Communication：LoRa wireless transmission module
S12 Gateway
Communication：Modbus-RTU/DLT645 to Modbus-TCP
S15 Gateway
Communication：2/3/4G, NB-IoT, WiFi, Bluetooth, LoRaWAN, ZigBee
Application
■ Energy management
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter
