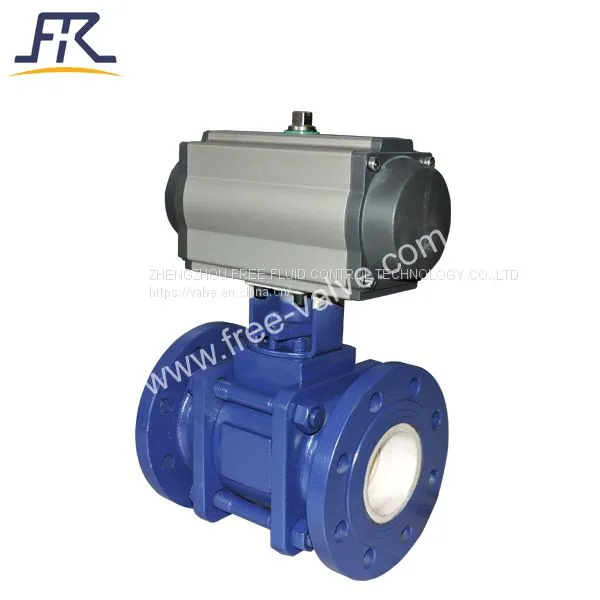

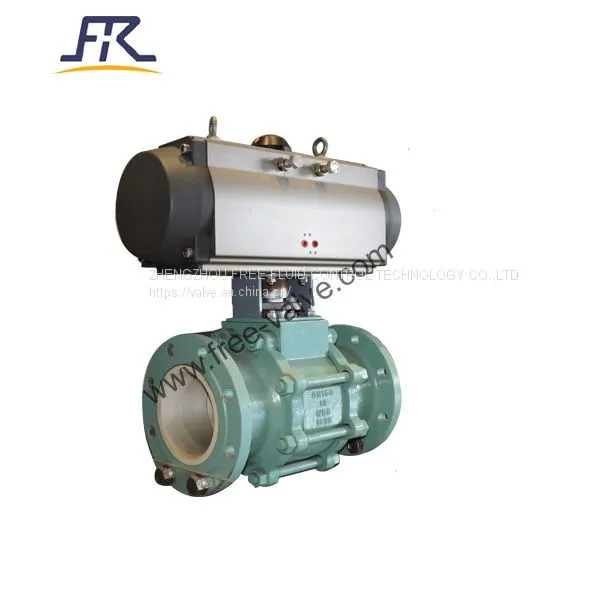

Help CenterQ641TC A105 WCB Double Flanged Ceramic Seat Ball Valve
Related Products
-
Corrosion Resistant SS304 CF8 Body Double Flanged Pneumatic Ceramic Lined Ball ValveUS$ 500 - 800MOQ: 2 Sets -
Stainless Steel Ceramic Shut off Knife Gate Valve DN100 With Handwheel PneumaticUS$ 500 - 5000MOQ: 1 Piece
-
Manual Handwheel Operation Ceramic Knife Gate Valve Ceramic Discharge Valve for Fly Ash SystemUS$ 500 - 5000MOQ: 1 Piece
-
FRZ643TC Flanged Ceramic Gate Valve Pneumatic Rotating Type for Coal Fired Power PlantUS$ 600 - 1000MOQ: 2 Sets
-
DN200 DN150 Pneumatic Ceramic Feeding Swing Disc Valve for Power PlantUS$ 600 - 1000MOQ: 2 Sets
FREE-VALVE’s WCB ceramic lined ball valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids .
Features:
1.The hardness of the ceramic material can be higher than HRC80.

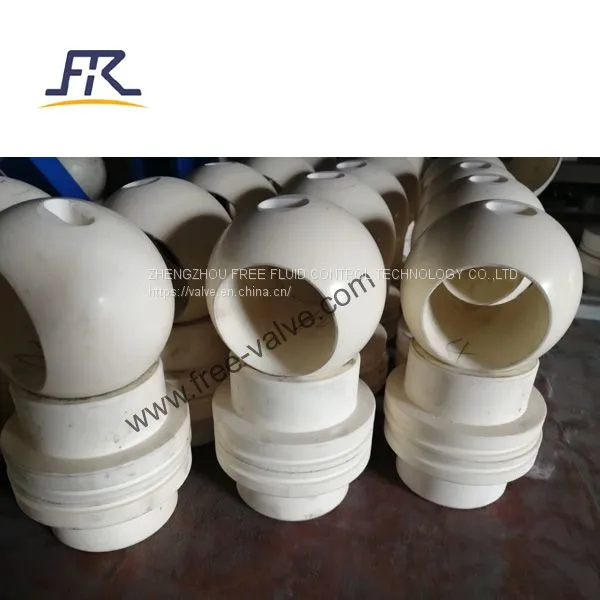

2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Customized actuation types are installed on the ceramic ball valve, the manual lever or worm gear, as well as with pneumatic and electric actuators.
4.Carbon steel valve body material make you reduce the maintaining cost compare to stainless steel ball valve body material.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
6.The valve body is designed as 3-PCS type .
Technical Specification
Nominal Pressure 1.0MPa,Class150
Size Range :DN10~DN 150 NPS1” to NPS 6”
Connection type:Thread end,Flange end
Working Temperature ≤200℃
Operating Type:Manual operation, Pneumatic ,Electric
Sealing surface material:Engineering ceramic
Valve body material :WCB
Ball material:Engineer ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application
FREE-VALVE’s carbon steel ceramic lined ball valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment,Glue industry,chemical industry and food industry.
Model：FRQ641TC
Price terms:FOB,CIF,FCA,CFR
Price:100-500USD/set
Origin:China
Brand:FREE-VALVE
Zhengzhou Free Fluid Control Technology Co.,Ltd
Wechat ID:Free_Valve
Email:marketing@free-valve.com / sales@free-valve.com
Skype:marketing@free-valve.com
Mobile:+8619937155563
Whatsapp:+8613460250295
