Metal Lined Vertical Slurry Pump SV/40

Metal Lined Vertical Slurry Pump SV/40 thumbnail-1
Metal Lined Vertical Slurry Pump SV/40 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CNSME
Place of Origin:
China
Model Number:
SV/40P
Contact Supplier Request Quote Chat Now
Shijiazhuang Minerals Equipment Co. Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNSME
Place of Origin China
Model Number SV/40P
Power Electric
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump

Certificate: CE/ISO

Place of Origin: Hebei, China

Color: Blue Material: A05 Function: It is designed for delivering abrasive, large particle, and high-density slurries.

Introduction:

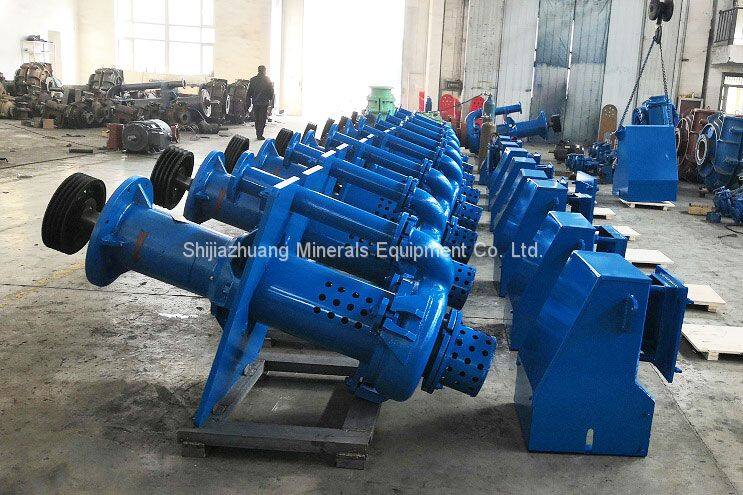

The SV heavy-duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy-duty cantilever design makes the SV sump pump ideally suited for heavy continuous handling of abrasive liquids and slurries whilst submerged in sumps or pits. The rugged SV heavy-duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:

Minerals Processing

Coal Preparation

Chemical Processing

Effluent Handling

Sand and Gravel

and almost every other tank, pit or hole-in-the-ground slurry handling situation.

Material Construction:

Description

Standard Material

Optional Material

Impeller

A05

A33, A49

Casing

A05

A33, A49

Back Liner

A05

A33, A49

Shaft

Carbon Steel

SUS304, SUS316(L)

Discharge Pipe

20# Mild Steel

SUS304, SUS316(L)

Column

20# Mild Steel

SUS304, SUS316(L)

Specifications:



Pump

Model

Allowable

Max. Power

(kw)

Material

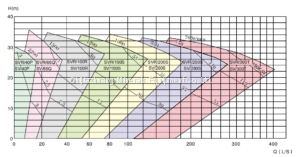

Clear Water Performance

Impeller

Capacity Q

Head

H(m)

Speed

n(r/min)

Max.Eff.

η%

Length

Shaft (mm)

No. of

Vanes

Vane Dia.

(mm)

Impeller

m3/h

SV/40P

15

Metal

(A05)

19.44-43.2

4.5-28.5

1000-2200

40

900

5

195

SV/65Q

30

23.4-111

5-29.5

700-1500

50

1200

290

SV/100R

75

54-289

5-35

500-1200

56

1500

390

SV/150S

110

108-479.16

8.5-40

500-1000

52

1800

480

SV/200S

110

189-891

6.5-37

400-850

64

2100

550

SV/250T

200

180-1080

10-35

400-750

60

2400

605

SV/300T

200

180-1440

5-30

350-700

62.1

2400

610

Product Tags: Warman Pump , Slurry Pump , Vertical Slurry Pumps , Metal Lined Slurry Pump , SV Slurry Pump
