Certificate: CE/ISO
Place of Origin: Hebei, China
● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 150ZGB
Introduction:
SME offers pumping solutions for refuse, tailings, and high volume concentrate in the mining industry. We also offer equipment sales, complete system designs and high-quality engineering.
ZGB Series is a high performance, high capacity, high head one and can be multi-set slurry pumps, widely used for carrying abrasive or corrosive slurry in industrial sectors such as electricity, metallurgy, mine, coal, building material, and chemical engineering
SME products include centrifugal slurry pump and spares, horizontal slurry pump and spares, submersible slurry pumps, electric motors and control panels, vertical spindle slurry pumps and spares, dewatering pumps, and spares.
Characteristics:
1. High efficiency and low abrasion
2. Can be connected to the multi-step series under the allowable pressure (3.6MPa)
3. The bearings are lubricated with thin oil can work under low temperature by placing the lubrication and cooling system intelligently
Specifications:
Model |
150ZGB |
Capacity |
100-900m3/h |
TDH |
60-94m |
Max. Allowable Motor Power |
560Kw |
Speed |
980r/min or 1480r/min |
Max. Efficiency |
78% |
Lubrication |
Oil |
Construction of ZGB Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

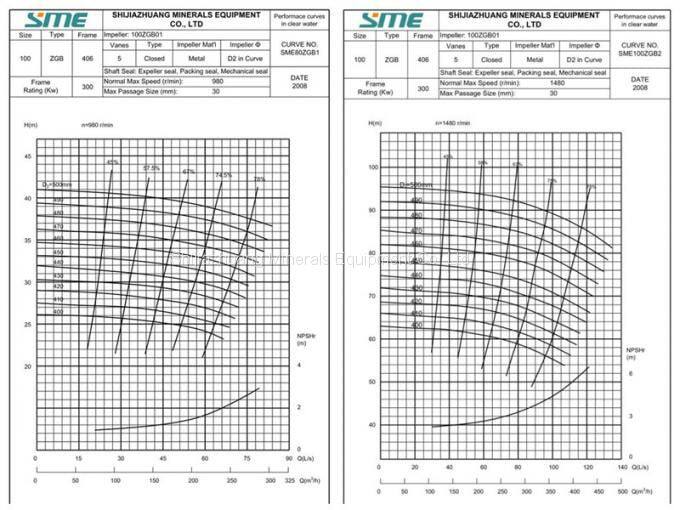

Performance Curve:
Projects of ZGB Heavy Duty Slurry Pump:
