Help CenterRubber Lined Vertical Slurry Pump SVR/65Q
Related Products
Certificate: CE/ISO
Place of Origin: Hebei, China
Introduction:
Pump Model: SVR/65Q

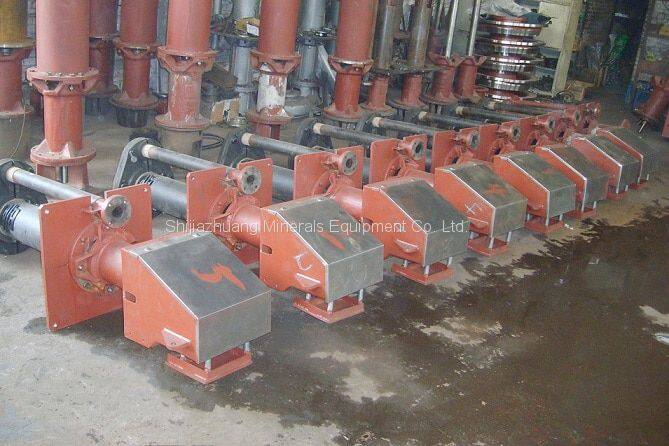

The SVR heavy-duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy-duty cantilever design makes the SVR sump pump ideally suited for heavy continuous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged SVR heavy-duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
and almost every other tank, pit, or hole-in-the-ground slurry handling situation. The SVR design with elastomer-covered components makes it ideal for Corrosive slurries; Large Particle sizes; High-density slurries; Heavy duties demanding cantilever shafts.
Material Construction:
Description |
Standard Material |
Optional Material |
Impeller |
Natural Rubber R55 |
|
Casing |
Natural Rubber R55 |
|
Back Liner |
Natural Rubber R55 |
|
Shaft |
Carbon Steel |
SUS304, SUS316(L) |
Discharge Pipe |
20# Mild Steel |
SUS304, SUS316(L) |
Column |
20# Mild Steel |
SUS304, SUS316(L) |
Specifications:
|
Pump Model |
Allowable Max. Power (kw) |
Material |
Clear Water Performance |
Impeller |
|||||
Capacity Q |
Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
Length Shaft (mm) |
No. of Vanes |
Vane Dia. (mm) |
|||
Impeller |
m3/h |
||||||||
SVR/40P |
15 |
Rubber (R55) |
19.44-43.2 |
4.5-28.5 |
1000-2200 |
40 |
900 |
5 |
195 |
SVR/65Q |
30 |
23.4-111 |
5-29.5 |
700-1500 |
50 |
1200 |
290 |
||
SVR/100R |
75 |
54-289 |
5-35 |
500-1200 |
56 |
1500 |
390 |
||
SVR/150S |
110 |
72-504 |
10-35 |
500-1000 |
56 |
1800 |
480 |
||
