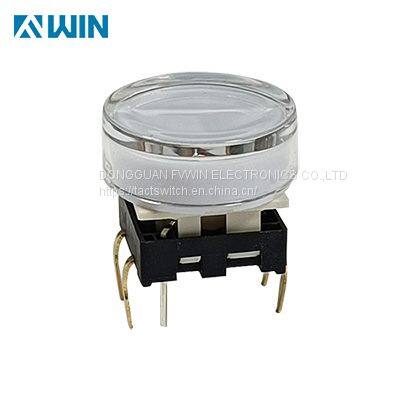

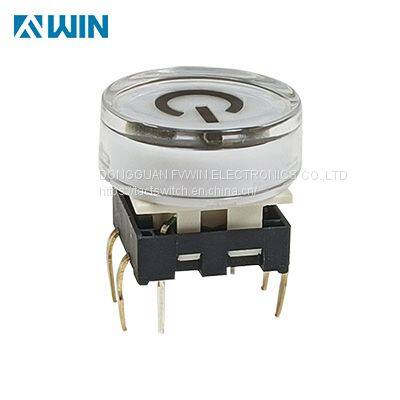

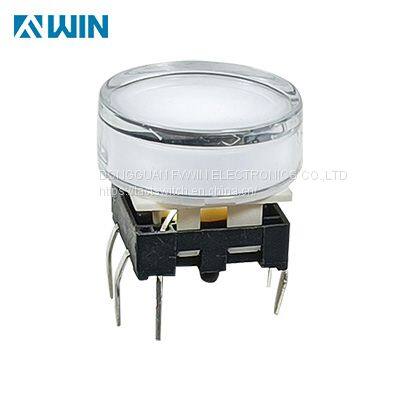

Help CenterControl Panel Illuminated 16mm Transparent Button Switch
Related Products
-
15*15mm Illuminated LED Color Broadcast Style Push ButtonUS$ 1.8 - 2.8MOQ: 1000 Pieces -
12*12 Matrix Front Panel Illuminated LED Push Button ControlUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
16 Matrix Illuminated Controller Front Panel Button SwitchUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
Broadcasting Front Panel Illuminated Push Button SwitchUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
Illuminated LED Panel ButtonsUS$ 1.8 - 2.9MOQ: 1000 Pieces
Concave Transparent Crystal illuminated Control Panel Button
The TS15 series of illuminated pushbuttons is widely usder for controller panel function keys,the front panel features illuminated push-buttons that can be laser etched with text or graphics, Button icons can be customized as your design.these features makes it an ideal for control panel,AV Solutions,video synthesizer,and LED console.
Size：12x12x13.1mm
Rated：12VDC ,50mA
Contact Resistance：100mΩ（max）
Insulation Resistance：100MΩ（min）
Withstand Voltage：250VAC for 1 minute
Operation Force：250±50gf
Total Travel：0.4±0.15mm
Function：OFF-(ON)
Soldering Temperature：260℃ for 3 seconds
Using Temperature：-20℃ ~ 70℃
Life：2000,000 cycles

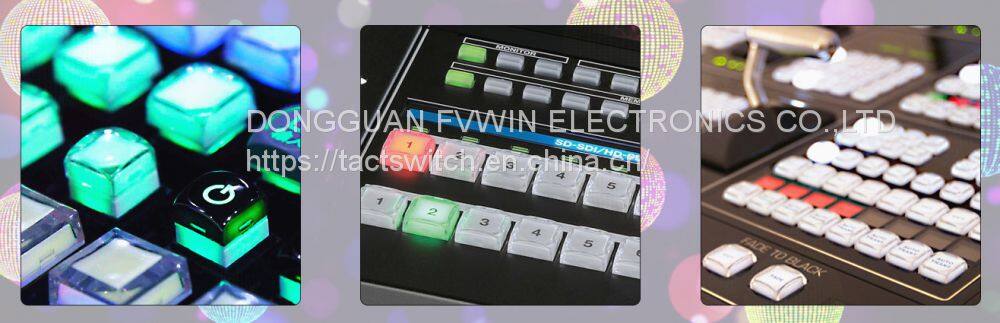

Application:video processor,Teaching recording and broadcasting system,Medical equipment, consumer electronics, audio equipment, communications equipment
These Audio/Video illumianted push buttons switches features concave, engraved, square caps in three common sizes 12*12mm and 15*15mm and 16mm for design flexibility in LED System Solutions applications
