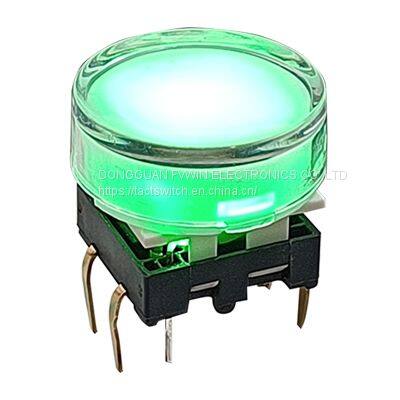

16mm Illuminated LED Button Bricklet
US$ 1.8 - 2.9
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
FVWIN
Place of Origin:
China
Model Number:
TS15-12W58WTX
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
35 days
Related Products
-
Pro Audio Interface Panel Illuminated PushbuttonUS$ 1.8 - 2.9MOQ: 1000 Pieces -
Broadcast Style Illuminated Control Panel Push ButtonsUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
Concave Transparent Crystal Illuminated Control Panel ButtonUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
Control Panel Illuminated 16mm Transparent Button SwitchUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
15*15mm Illuminated LED Color Broadcast Style Push ButtonUS$ 1.8 - 2.8MOQ: 1000 Pieces
Brand Name
FVWIN
Place of Origin
China
Model Number
TS15-12W58WTX
Max. Voltage
12
Max. Current
50mA
16mm illuminated LED Button Bricklet
Size：12x12x13.1mm
Rated：12VDC ,50mA
Contact Resistance：100mΩ（max）
Insulation Resistance：100MΩ（min）
Withstand Voltage：250VAC for 1 minute
Operation Force：250±50gf
Total Travel：0.4±0.15mm
Function：OFF-(ON)
Soldering Temperature：260℃ for 3 seconds
Using Temperature：-20℃ ~ 70℃
Life：2000,000 cycles
Application:video processor,Teaching recording and broadcasting system,Medical equipment, consumer electronics, audio equipment, communications equipment
These Audio/Video illumianted push buttons switches features concave, engraved, square caps in three common sizes 12*12mm and 15*15mm and 16mm for design flexibility in LED System Solutions applications
