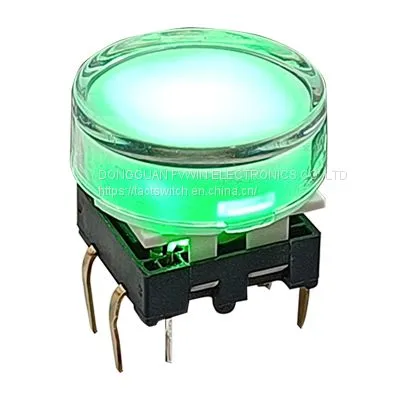

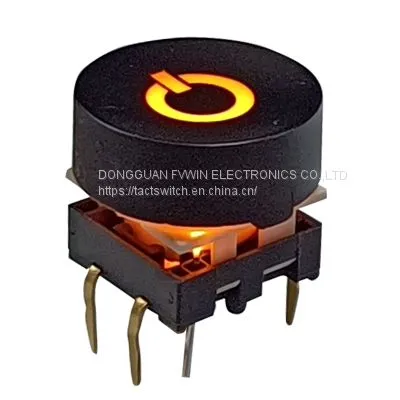

16 Matrix Illuminated Controller Front Panel Button Switch
US$ 1.8 - 2.9
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
FVWIN
Place of Origin:
China
Model Number:
TS15-12W58WTX
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
35 days
Related Products
-
Broadcasting Front Panel Illuminated Push Button SwitchUS$ 1.8 - 2.9MOQ: 1000 Pieces -
Illuminated LED Panel ButtonsUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
Illuminated Buttons Function Keys on Broadcast PanelUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
Illuminated LED Broadcast Backlit ButtonsUS$ 1.8 - 2.9MOQ: 1000 Pieces
-
15mm Square Illuminated Broadcast Style Push Button SwitchUS$ 1.8 - 2.8MOQ: 1000 Pieces
Brand Name
FVWIN
Place of Origin
China
Model Number
TS15-12W58WTX
Max. Voltage
12
Max. Current
50mA
16mm Matrix Front Panel Illuminated LED Push Button Control

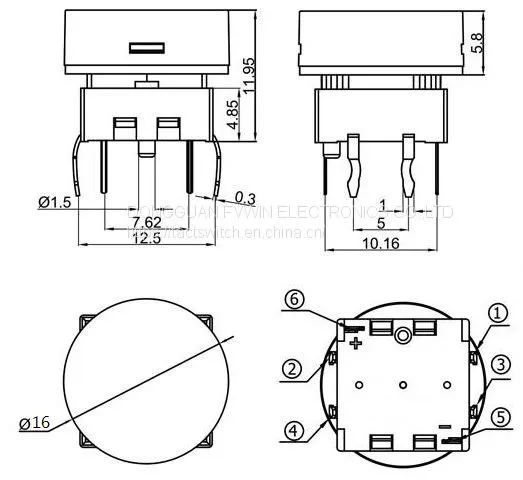

Size：12x12x13.1mm
Rated：12VDC ,50mA
Contact Resistance：100mΩ（max）
Insulation Resistance：100MΩ（min）
Withstand Voltage：250VAC for 1 minute
Operation Force：250±50gf
Total Travel：0.4±0.15mm
Function：OFF-(ON)
Soldering Temperature：260℃ for 3 seconds
Using Temperature：-20℃ ~ 70℃
Life：2000,000 cycles
Application:video processor,Teaching recording and broadcasting system,Medical equipment, consumer electronics, audio equipment, communications equipment
