illuminated buttons Function Keys on panel
The TS15 series illuminated push button switches is ideal for front panel button of LED video processor, our TS15 series illuminated transparent switch is professional broadcast quality crosspoint buttons are back lit with brightness control.
high quality concave buttons that help reduce incorrect key presses. The illuminated clear buttons also have color backlighting to help you quickly recognize function keys.

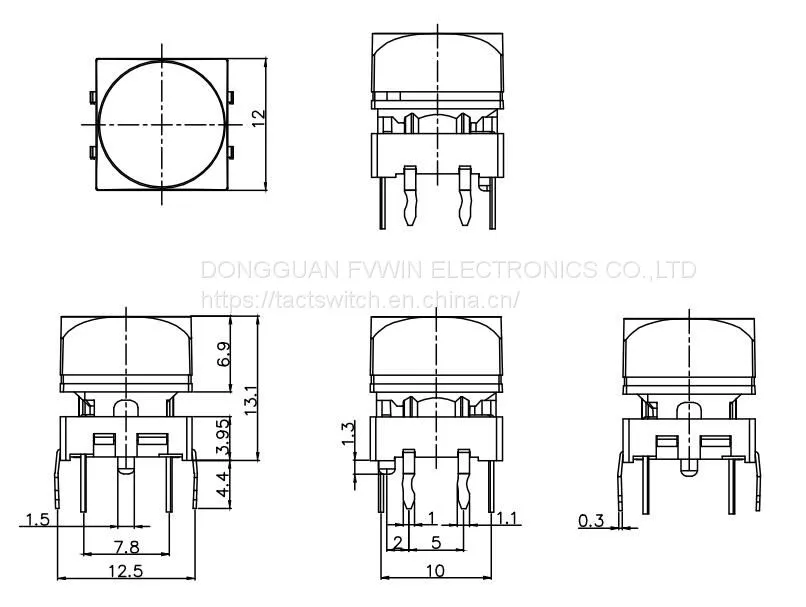

Size：12x12x13.1mm
Rated：12VDC ,50mA
Contact Resistance：100mΩ（max）
Insulation Resistance：100MΩ（min）
Withstand Voltage：250VAC for 1 minute
Operation Force：250±50gf
Total Travel：0.4±0.15mm
Function：OFF-(ON)
Soldering Temperature：260℃ for 3 seconds
Using Temperature：-20℃ ~ 70℃
Life：2000,000 cycles
Application:video processor,Teaching recording and broadcasting system,Medical equipment, consumer electronics, audio equipment, communications equipment
