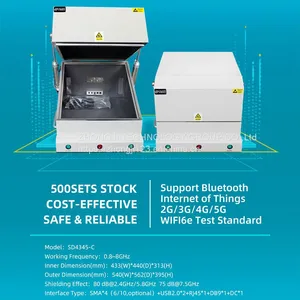

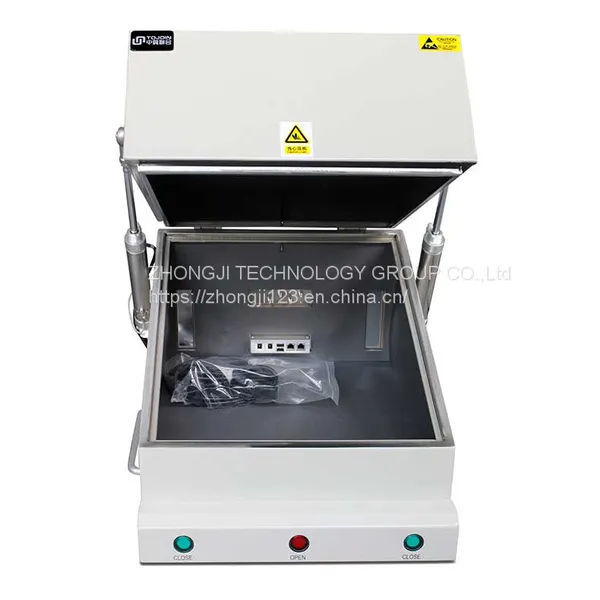

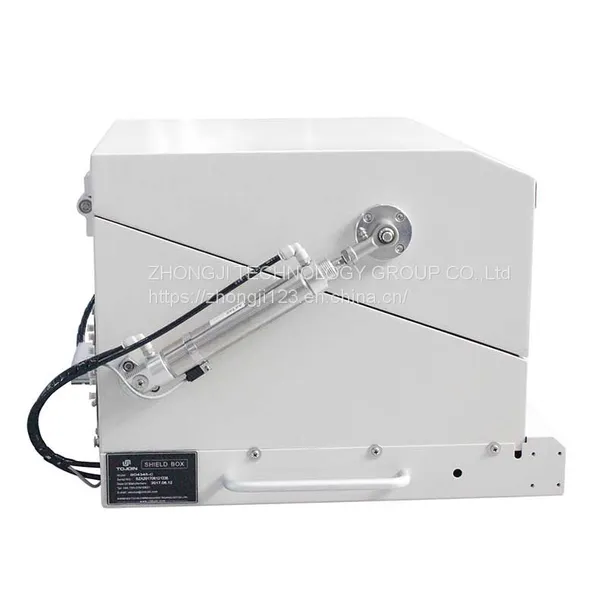

SD4345-C is an economical pneumatic single-layer shielding box, it is suitable for building module and terminal test solution platforms in the fields of smart phone, Wi-Fi, Bluetooth, smart grid equipment, automotive electronics, UAV, smart home
SD4345-C is an economical pneumatic single-layer shielding box, it is suitable for building module and terminal test solution platforms in the fields of smart phone, Wi-Fi, Bluetooth, smart grid equipment, automotive electronics, UAV, smart homes and so on.
Features
① The working size meets most of the test requirements of smart mobile terminals on the market.
② New wave-absorbing materials are used to reduce the refracted and reflected wave signal in the box, thereby reducing the probability of false detection caused by the environment.
③ Various filters are available according to requirements.
④ Various interface types can be combined according to needs.
⑤ Double protection measures, coming from the high-sensitivity magnetic ring sensors and photoelectric sensors.
⑥ It supports RS232 serial communication command control and PLC online programming control.
Technical Parameter:
Working frequency（GHz） |
0.8～8GHZ |
Shielding effect |
80dB@2.4GHz/5.8GHz 75 dB@7.5GHz |
Interface type |
SMA*4(6/10,optional)+USB2.0*2+RJ45*1+ DB9*1+DC*1 ( Could be customized and optional) |
Numbers of filters |
4 pcs |
Control mode |
Pneumatic (controlled by buttons) |
working temperature（°C） |
Normal working temperature |
Working size(mm) |
433(W)*440(D)*313(H) |
Dimensions（mm） |
540(W)*562(D)*395(H) |
Weight（kg） |
Approximately 25 |
Appearance of color |
Beige (Could be customized) |
