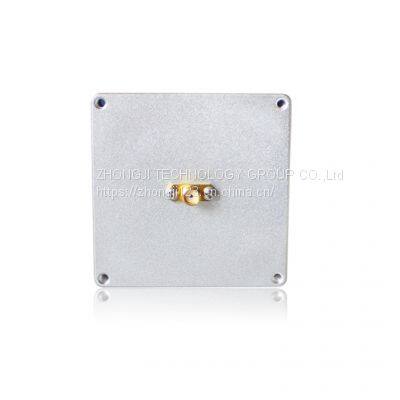

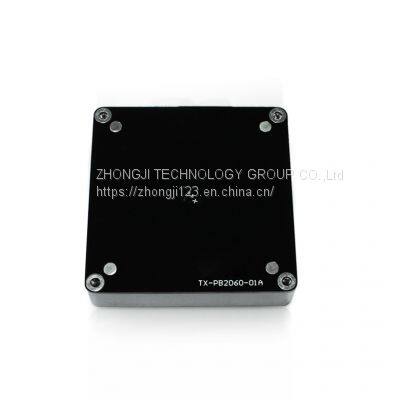

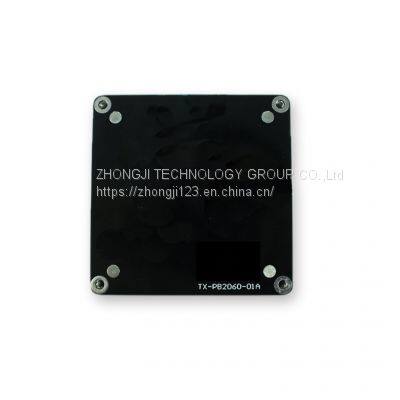

Coupled Antenna SMA Connector Small for Wifi Power Test
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TOJOIN
Place of Origin:
China
Model Number:
TX-PB2060-01A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Near Field Test of Flat Plate Antenna Coupler Small for Wifi Power Test 2~6GHzNegotiableMOQ: 1 Piece -
0.8~6GHz Coupled Antenna Small for Wifi Power Test 130×106×16mmNegotiableMOQ: 1 Piece
-
Near Field Test of Flat Plate Antenna Coupler Small for Wifi Power Test 6000MHzNegotiableMOQ: 1 Piece
-
Signal Repeater GNSS-101 for GNSS Navigation Product Development/productionNegotiableMOQ: 1 Piece
-
Signal Repeater GNSS-5000-001 for GNSS Navigation Product Development/productionNegotiableMOQ: 1 Piece
Brand Name
TOJOIN
Place of Origin
China
Model Number
TX-PB2060-01A

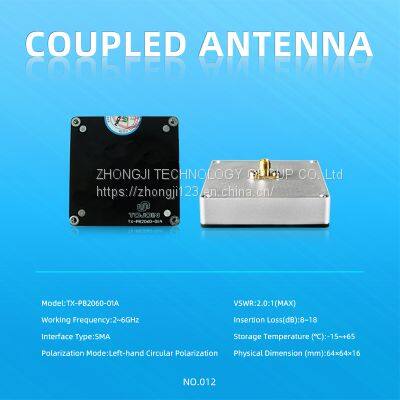

Technical Parameter:
| Parameter | Min. | Typ. | Max. |
| Frequency Range (GHz) | 2.0 | — | 6.0 |
| Insertion Loss (dB) | 8 | — | 18 |
| Polarization Mode | — | left-hand circular polarization | — |
| VSWR | — | 1.6 | 2.0 |
| Nominal Impedance (Ω) | — | 50 | — |
| Connectors | — | SMA | — |
| Operating Temperature (°C) | -10 | normal temperature | +50 |
| Storage Temperature (°C) | -15 | — | +65 |
| Physical Dimension (mm) | — | 64×64×16 | — |
| Weight (g) | — | 250 | — |
