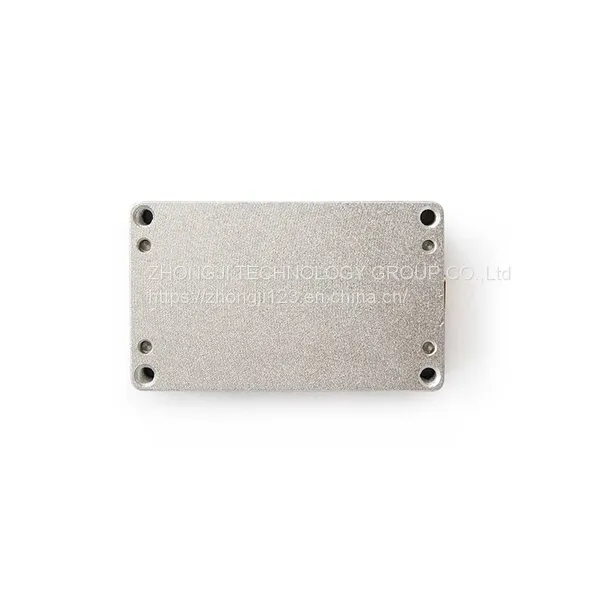

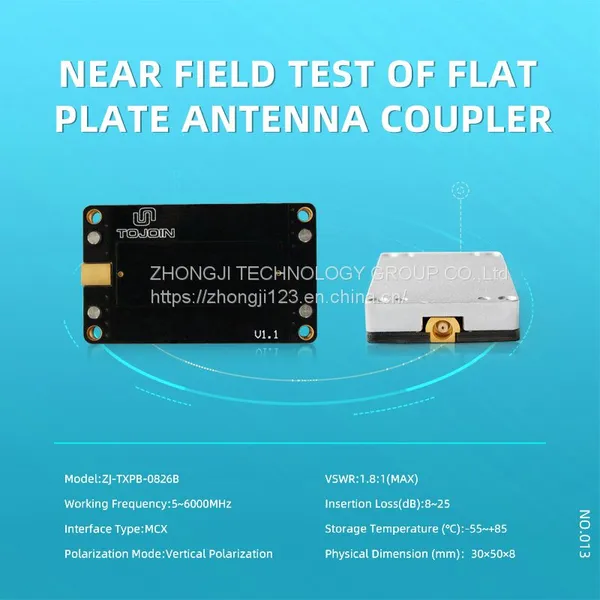

Near Field Test of Flat Plate Antenna Coupler Small for Wifi Power Test 6000MHz
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TOJOIN
Place of Origin:
China
Model Number:
ZJ-TXPB-0826B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Coupled Antenna SMA Connector Small for Wifi Power TestNegotiableMOQ: 1 Piece -
Near Field Test of Flat Plate Antenna Coupler Small for Wifi Power Test 2~6GHzNegotiableMOQ: 1 Piece
-
0.8~6GHz Coupled Antenna Small for Wifi Power Test 130×106×16mmNegotiableMOQ: 1 Piece
-
Signal Repeater GNSS-101 for GNSS Navigation Product Development/productionNegotiableMOQ: 1 Piece
-
Signal Repeater GNSS-5000-001 for GNSS Navigation Product Development/productionNegotiableMOQ: 1 Piece
Brand Name
TOJOIN
Place of Origin
China
Model Number
ZJ-TXPB-0826B
Technical Parameter:
| Parameter | Min. | Typ. | Max. |
| Frequency Range (MHz) | 5 | — | 6000 |
| Insertion Loss (dB) | 8 | — | 25 |
| Polarization Mode | — | vertical polarization |
— |
| VSWR | — | — | 1.8 |
| Input Impedance (Ω) | — | 50 | — |
| Connectors | — | MCX | — |
| Operating Temperature (°C) | -45 | normal temperature | +70 |
| Storage Temperature (°C) | -55 | — | +85 |
| Installation Mode | — | screw retention |
— |
Physical Dimension(mm) |
— | 30*50*8 | — |
| Weight (g) | — | 25 | — |
