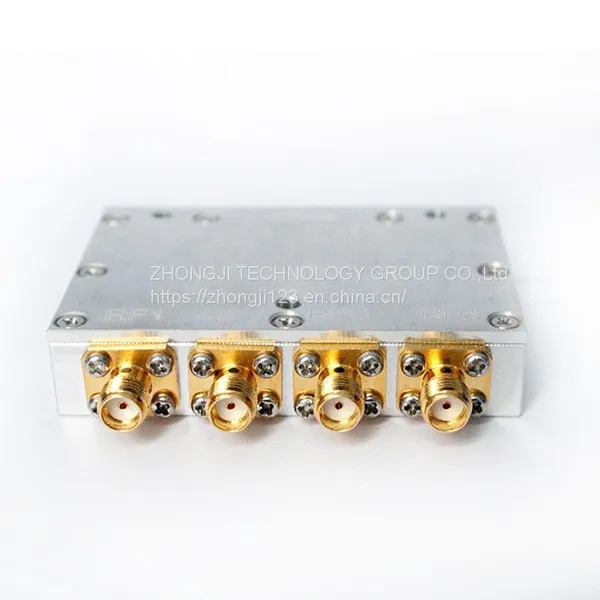

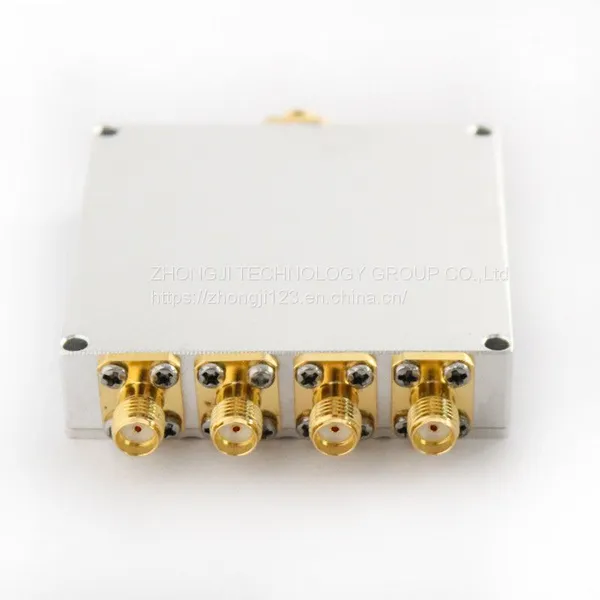

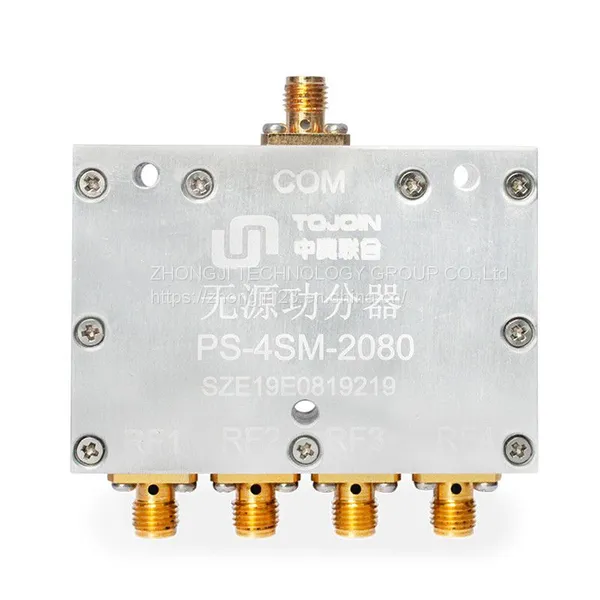

4 Way Power Splitter Power Divider With SMA Connector 0.8-8GHz
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TOJOIN
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
2 Way Power Splitter Power Divider With SMA Connector 0.8-8GHzNegotiableMOQ: 1 Piece -
Precise SMA-K Calibrator for Network Analyzers With Open, Short & LoadNegotiableMOQ: 1 Piece
-
Coupled Antenna SMA Connector Small for Wifi Power TestNegotiableMOQ: 1 Piece
-
Near Field Test of Flat Plate Antenna Coupler Small for Wifi Power Test 2~6GHzNegotiableMOQ: 1 Piece
-
0.8~6GHz Coupled Antenna Small for Wifi Power Test 130×106×16mmNegotiableMOQ: 1 Piece
Brand Name
TOJOIN
Place of Origin
China
Technical Parameter:
| Parameter | Min. | Typ. | Max. |
| Frequency Range(GHz) | 2 | — | 8 |
| Insertion Loss(dB) 2.4-2.5GHz (With distribution ratio ) |
— | 6.5 | 6.8 |
| Insertion Loss(dB) 5.7-5.9GHz (With distribution ratio ) |
— | 6.8 | 7.2 |
| Isolation(dB) | 20 | — | — |
| Input VSWR | — | 1.25 | 1.5 |
| Output VSWR | — | 1.25 | 1.35 |
| Amplitude Balance(dB) | - | - | 0.5 |
| Phase Balance(°) | - | - | 5 |
| Impedance(Ω) | - | 50 | - |
| Connectors | - | SMA | - |
| Power Capacity(W) | — | 10 | - |
| Operating Temperature(°C) | -30 | normal temperature | +70 |
| Physical Dimension(mm,+/-0.1) | — | 72.1×55×13.2 | — |
