Product Details
Brand Name: | NANYANG | Place of Origin: | China | Model Number: | 500L |
Type: | Sauce Machine | After-sales Service Provided: | No overseas service provided | Warranty: | NANYANG |
Weight: | 300kg | Dimension(L*W*H): | 1000*1000*1700mm | Voltage: | 500L |
Certification: | NANYANG | Condition: | New | Power(W): | 1500W |
Automatic Grade: | Semi-Automatic |
Product Description

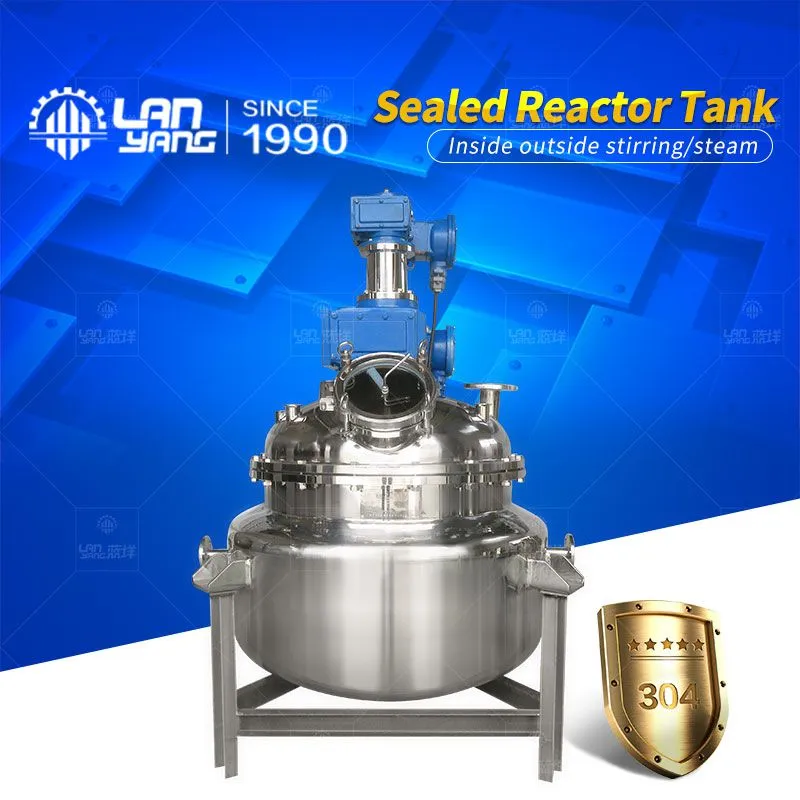

Automatic Stirred Tank Reactor
1. Brief Introduction :
(1)Reaction pot consists of pot body, pot, mixer, jacket, bearing and gear, shaft sealing device, etc, the material and open hole can be formulated according to the requirements of the user process.Heating with electric heating, oil heating, gas heating, water heating (or cooling), firing, etc.Jacketed form is divided into: model and the outer tube type, jacket type oil heating have guiding device.Is usually stirring paddle,
anchor, box type, screw type, wall, etc.High speed class has dispersion impeller type, turbine, high shear type, propeller type, for the customer to choose according to the craft.Drive mode with general motors, explosion-proof motor, electromagnetic speed regulating motor, frequency converter, heat exchanger has a cycloidal needle wheel, worm gear, planetary CVT.Shaft seal for the common water cooling packing seal, combined ptfe packing seal, mechanical seal.Have a ball valve, the valve discharge form. Widely used in medicine, building materials, chemicals, paint, resin, food industries, heat quickly, high temperature resistant, corrosion resistance, health, no environmental pollution, no automatic boiler heating, convenient use, etc.
(2) The reaction kettle type contains the following elements:
1)Seal: mechanical seal, packing seal, oil seal, etc
2)Form: round head, single-layer, up and down jacket, outside dish tube, inside dish tube
3)Heating, heating, hot water, steam, heat conduction oil heating electrical heating, far red heat resistance
5)Mixing: generally speaking, there are the anchor type, impeller and turbine, pusher, or frame
2. Reaction Vessel Machine Parameters:
model | NY-FYF-1 | HT-FYF-2 | HT-FYF-3 | HT-FYF-4 | HT-FYF-5 | HT_FYF-6 |
Type | 50L | 100L | 300L | 500L | 1000L | 2000L |
actual capacity | 78 | 127 | 327 | 509 | 1017 | 2154 |
heating power | 2*4 | 2*6 | 4*6 | 4*9 | 4*12 | 4*15 |
motor power | 1.1 | 1.1 | 2.2 | 3 | 4 | 5.5 |
Speed/speed ratio | 85/17 | 85/17 | 85/17 | 85/17 | 85/17 | 85/17 |
Speed ratio/speed ratio | 63/23 | 63/23 | 63/23 | 63/23 | 63/23 | 63/23 |
H | 1550 | 1690 | 1910 | 2320 | 2650 | 3200 |
3. Contact Information:
Welcome to contact us freely if u want to buy , we will do our best to meet ur production requirements.
4.Our Company Introduction:
We eastablished since the early nineties inception , the introduction of advanced technology and scientific research institutions at home and abroad , and has a number of advanced processing equipment , and design professional and technical personel.
Our spirit of "professionalism , integrity , development and win-win" business philosophy , to science and technology , customer requirements for the guidelines to a comprehensive service for the protection for different customer need in different production conditions and capabilities .
Welcome to visit our factory where is in beautiful city , Guangzhou , China.
Pls contact us if you are interested in our machine.
Guangzhou Lanyang Machinery Equipment Co., Ltd. / Guangzhou Panyu District Yi Nanyang Food Machinery Equipment Factory has been engaged in the production of food, pharmaceutical and chemical machinery and equipment for 30 years. It belongs to the earlier machinery and equipment manufacturers in China, with high quality and excellent service. Welcome to new Old customers call to discuss. Specializing in the production and manufacture of various customized pharmaceutical/food/chemical machinery and equipment, the main products are: filling machine, mixer, emulsifier, jacketed pot, mixing tank, mixing barrel, conveyor belt, reaction kettle, colloid mill, capping machine , Sterilization pot, plate and frame filter, thick slurry pump, cam rotor pump, durian meat shaker, filling production line, large mixer, small mixer, oral liquid filling machine, chemical filling machine manufacturer, bottle washing machine Machine, capping and capping machine, automatic filling machine, paste/oil/liquid/concentrated slurry filling machine, semi-automatic filling machine, sauce filling machine, cream filling machine, paste filling machine , Edible oil filling machine, powder filling machine, granule filling machine, can filling machine, carbonated beverage filling machine, automatic beverage filling machine, beverage filling machine three in one, aerated beverage filling machine, Small beverage filling machine, fruit juice beverage equipment, mineral water production line, carbonated beverage equipment, tea beverage equipment, protein beverage production line, can production line, beverage mixer filling production line, soy milk beverage filling machine, quantitative filling machine, isobaric Filling machine, weighing filling machine, peanut filling machine, horizontal mixer, trough mixer, vertical mixer, V-type mixer, stainless steel dry powder/particle mixer, cone mixer, sealed anti-corrosion Dust mixer, high-power convection effect mixer, food-grade sanitary stainless steel mixer, W-type mixer, mixer, tiltable mixer, custom-made mixer design, vacuum drying mixer, double spiral cone mixer, Mixing machinery and equipment, high-shear emulsifier manufacturers, laboratory emulsifiers, emulsifiers, complete models and specifications, stable power, intermittent emulsifiers, professional customized emulsifiers, homogeneous emulsifiers, high shear dispersing emulsifiers, pipeline type Emulsifier, vacuum emulsifier, high-speed emulsifier, pipeline emulsifier, cosmetics, shower gel, sunscreen, cream emulsifier, electric heating mixing barrel, single layer mixing barrel, mixing barrel manufacturer, stainless steel mixing tank, stainless steel Mixing tank, rubber conveyor belt, heat-resistant conveyor belt, conveyor belt, stainless steel conveyor system, automatic conveyor belt assembly line, small colloid mill, laboratory colloid mill, split colloid mill, horizontal colloid mill, stainless steel colloid mill, food colloid mill , Production of stainless steel reactor, electric heating reactor, steam jacketed pot, electric heating jacketed pot, all stainless steel jacketed pot, perfume bottle capping machine, beer bottle cap sealing machine, semi-automatic capping machine, oral liquid bottle capping machine, aluminum cap Capping machine, Xilin bottle capping machine, welcome customers to come to consult.
