Horizontal Mud Agitator Drilling Mud Agitator Mud Agitator Manufacturer
PRODUCT DESCRIPTION
DC mud agitator is used for the mixing and agitation of drilling fluid, preventing the settlement of solid phase particles in the tank recycling system.
（1） Speed reducer combined with explosion-proof motor , which is easy maintenance and suitable for using in wild harsh working conditions.
（2） Customers can choose single layer or double layers impellers according to site conditions.Agitator shaft centering guide can be added according to the increase of tank depth.

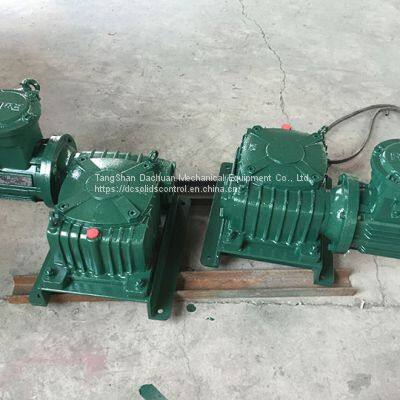

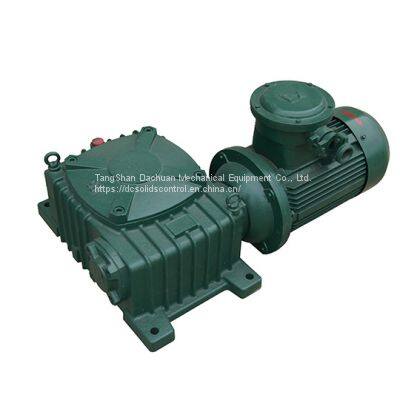

（3） The motor is placed horizontally , convenient for installing ,adjusting and replacing.
（4） Adopt worm wheel and worm gear reducer drive , which have the advantages of large transmitted torque,smooth operation, reliable performance,etc.
（5） Optional ATEX , IEC and marine explosion-proof certified motors according to customers'requirements.
Mud Agitator Parameters
Model |
DCJBQ5.5 |
DCJBQ7.5 |
DCJBQ11 |
DCJBQ15 |
|
Motor Power |
5.5kW |
7.5kW |
11kW |
15kW |
|
Impeller Speed |
60rpm（50HZ）/72rpm（60HZ） |
||||
Shaft Length |
1500mm or According to tank internal height |
||||
Single Impeller Dia. |
850mm |
950mm |
1050mm |
1100mm |
|
Double Impeller Dia.r |
|||||
Electric Specs |
380V/50HZ or 460V/60 or Customized |
||||
EX Standard |
Ex dⅡBT4 |
||||
Motor and reducer |
Dimension |
910×600×560mm |
1080×650×630mm |
1250×720×690mm |
|
Weight |
252kg |
255 kg |
340 kg |
430 kg |
|
Single Impeller |
Dimension |
850×850×1500mm |
950×950×1500mm |
1050×1050×1500mm |
1100×1100×1500mm |
Weight |
45 kg |
50 kg |
55 kg |
60 kg |
|
Double Impeller |
Dimension |
N/A |
800×800×1500 |
850×850×1500 |
900×900×1500 |
Weight |
65 kg |
75 kg |
85 kg |
||
Remark |
1、Righting set provided if impeller shaft length is above 1800mm. |
||||
