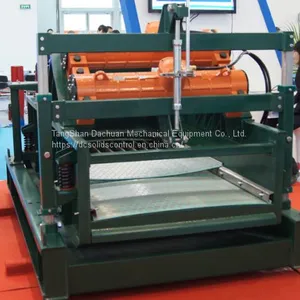

Linear motion shale shaker is the primary processing equipment of solid control system, it is used for separating the large drilling cuttings from drilling fluid, and it plays an important role in protecting drilling fluid performance.
( 1） Adopt Italy OLI brand motors which have the advantages of high strength vibration, large screening area, adjustable screen box angle, little noise and high efficiency.
（2） Heat treatment of the complete shaker deck.Surface painting with heavy anticorrosion to extend the service life of shale shaker.
（3） Use the full adhesive hookstrip rigidity screen or steel frame screen, the fixed tensioning plate can make to replace screen more convenient and easier and also can replaced into many kinds of screens.
（4） Reasonable designing the cofferdam height of shale shaker logging tank can make mud buffer is uniformity flow, reduce direct impact on screen and effective extend the screen service life.
（5） We can manufacture dual or thribble shale shaker according to clients' requirements.
Linear Motion Shale Shaker Parameters
Model |
DCZS850-2K |
DCZS700-3G |
DCZS630-3K |
DCZS830-3G |
DCZS585-4K |
Vibrating Mode |
Linear Motion |
||||
Motor Power |
2×1.5kW |
2×1.5kW |
2×1.5kW |
2×1.72kW |
2×1.72kW |
Vibrating Strength |
≤7.0G |
||||
Amplitude |
5~6mm |
||||
Treating Capacity |
80 m3/h |
110 m3/h |
120 m3/h |
130 m3/h |
130 m3/h |
Deck Adjustment |
-1°~5° |
||||
Electric Specs |
380V/50HZ or 460V/60HZ or Customized |
||||
EX Standards |
Ex dⅡ BT4 |
||||
Screen Qty |
2 panel |
3 panel |
3 panel |
3 panel |
4 panel |
Screen Specification |
850×1250mm40～200 mesh |
700×1050mm40～200 mesh |
630×1250mm40～200 mesh |
830×1080mm40～200 mesh |
585×1165mm40～200 mesh |
Screen Area |
2.12 m2 |
2.2m2 |
2.36m2 |
2.7m2 |
2.73 m2 |
Screen Type |
Steel Frame |
Hookstrip |
Steel Frame |
Hookstrip |
Steel Frame |
Dimension |
2260×1860×1380mm |
2700×1620×1500mm |
2510×1720×1500mm |
3310×1650×1580mm |
2900×1700×1500mm |
Weight |
1280kg |
1580kg |
1680kg |
1750kg |
1800kg |
Remark |
Specific gravity of mud treated by shale shaker is 1.2g/cm3 ,viscosity:45S,API 40 |
||||
