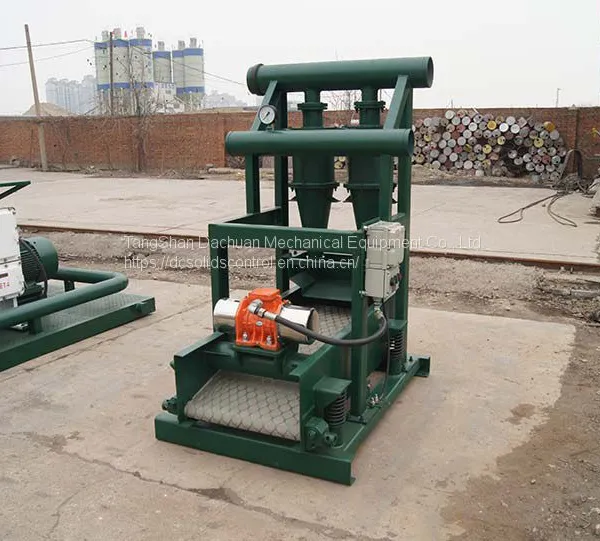

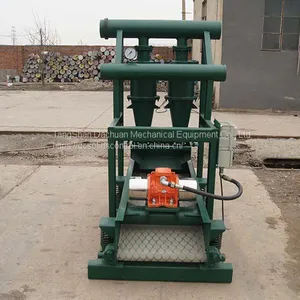

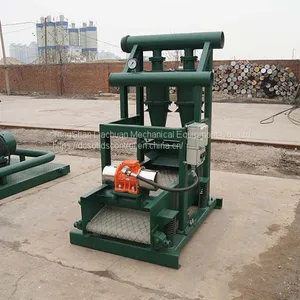

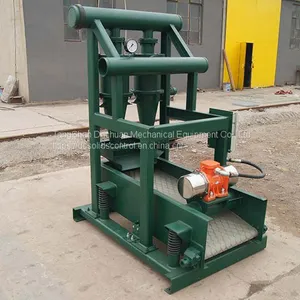

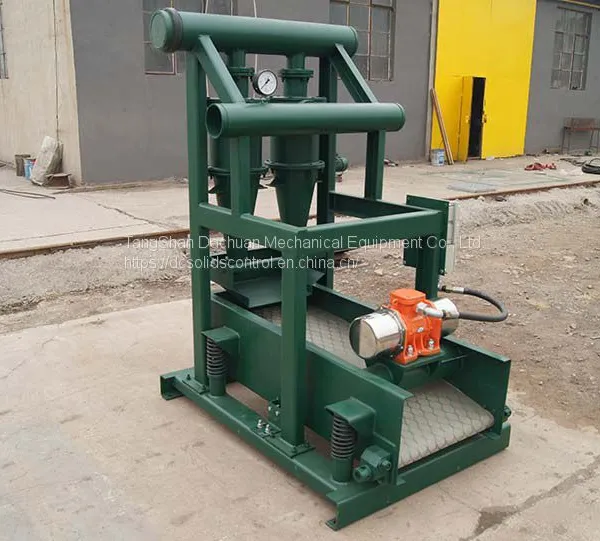

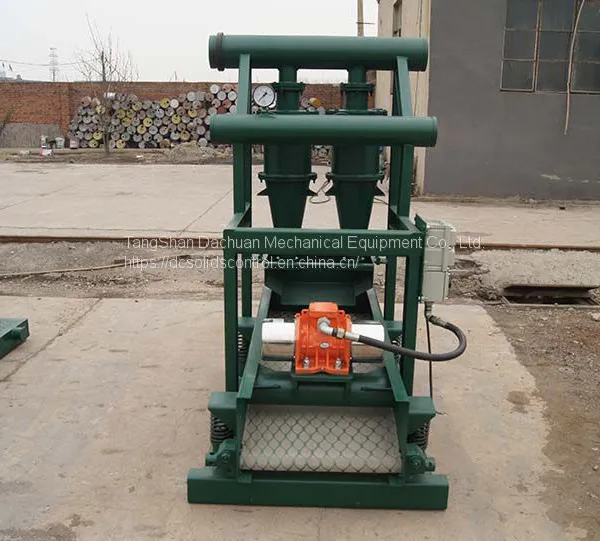

Drilling Mud Desander China Oilfield Drilling Equipment Oilfield Solids Control Equipment
PRODUCT DESCRIPTION
Desander is the second equipment in solids control system，it is used to separate solid phase particles whose diameter is 40～75μm.
（1）Select Special wear-resistant polyurethane material hydrocyclones.
（2）Inlet tangential feeding,smooth transition ,which help to improve separation efficiency and have a wide range of separation sizes.
（3）Symmetrical feeding design can make the liquid distribution to be more reasonable and stable.
（4）Size of the underflow hole of the hydrocyclone can be adjusted in order to control the handling capacity of the equipment.
（5）Different specifications and quantities of hydrocyclones can be matched according to the handling capacity that customer required.
Desander Parameters
Model |
DCCSQ250×1 |
DCCSQ250×1 |
DCCSQ250×2 |
DCCSQ300×2 |
|
Treating Capacity |
90m³/h396GPM |
120m³/h528GPM |
240m³/h1056GPM |
300m³/h1320GPM |
|
Separation Size |
40～75μm |
||||
Cone Size |
10"（250） |
10"（250） |
10"（250） |
12"（300） |
|
Cone Number |
1 |
1 |
2 |
2 |
|
Pressure |
0.25～0.40Mpa |
||||
Matching Pump |
DCSB5×4-12-22kW |
DCSB6×5-12-30kW |
DCSB8×6-13-55kW |
DCSB8×6-13-55kW |
|
Electric Specs |
380V/50HZ or 460V/60HZ or Customized |
||||
EX standard |
Ex dⅡ BT4 |
||||
Inlet Diameter |
DN150 |
||||
Outlet Diameter |
DN200 |
||||
Matching Shaker |
Screen Specification |
600×1600mm,120-300 mesh |
|||
Screen Type |
Soft Hookstrip |
||||
Motor Power |
0.4kW |
||||
Dimension |
1200×1200×2000mm |
1470×1400×2000mm |
1500×1750×2020mm |
||
Weight |
585kg |
615kg |
610kg |
||
Remark |
1.10"Cones=90~120m3/h ，12" Cones＞120m3/h 2.The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3 |
||||
