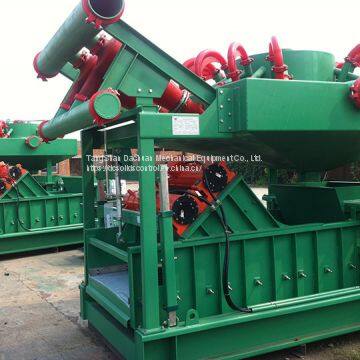

Mud Cleaner

Solid Control Equipment

High Quality Mud Cleaner

Mud Cleaneris the mud cleaning equipment combination of desander,desilter hydrocyclone and an underflow shale shaker.

（1）Compact structure, powerful function and small footprint area.

（2）The material of hydrocyclone use the wear-resistant special polyurethane.

（3）Underflow shaker equips the DC different model shale shakers.

（4）We can design and manufacture the different numbers of desander and desilter hydrocyclone for clients'requirements.

Mud Cleaner Parameters

Model		DCQJ250×1/100×6	DCQJ250×1/100×8	DCQJ250×2/100×12	DCQJ300×2/100×16
Treating Capacity		90m³/h 396GPM	120m³/h 528GPM	240m³/h 1056GPM	300m³/h1320GPM
Separation Size		15-75μm
Desander Cones		10"（250）×1	10"（250）×1	10"（250）×2	12"（300）×2
Desilter Cones		4"（100）×6	4"（100）×8	4"（100）×12	4"（100）×16
Inlet Diameter		DN150
Outlet Diameter		DN200
Pressure		0.25～0.40MPa
Matching Pump		DCSB5×4-12-22kW	DCSB6×5-12-30kW	DCSB8×6-13-55kW	DCSB8×6-13-55kW
Matching Shaker	Model	DCZS850-2K	DCZS700-3G	DCZS630-3K
	Vibrating Model	Linear Motion
	Motor Power	2×1.5kW	2×1.5kW	2×1.5kW
	Screen Qty	2 panel	3 panel	3 panel
	Screen Specification	850×1250mm×2 panel，120～300mesh	700×1050mm×3 panel，120～300mesh	630×1250mm×3 panel，120～300mesh
	Screen Area	2.12m²	2.2 m²	2.36 m²
	Screen Type	Steel Frame	Hookstrip	Steel Frame
	Electric Specs	380V/50HZ or 460V/60HZ or Customized
	EX Standard	Ex dⅡBT4
Dimension		2530×1750×2210 mm	2530×1750×2210 mm	2530×1750×2210 mm		2530×1750×2210 mm
Weight		1780kg	2080kg	2200kg		2350kg
Remark		1、4" Cones =10～20m³/h, 10" Cones =90~120m³/h ，12" Cones＞120m³/h 2、The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3
