Brand Name DC Solid Control
Place of Origin China

Oilfield Mud Cleaner         Mud Cleaning Equipment     Mud Cleaning Machine       Mud Cleaning System



PRODUCT DESCRIPTION

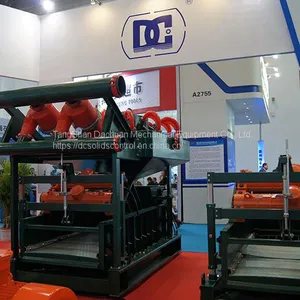

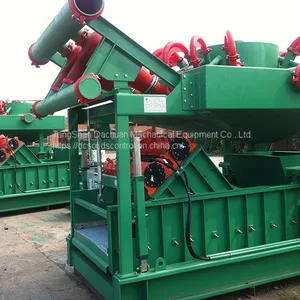

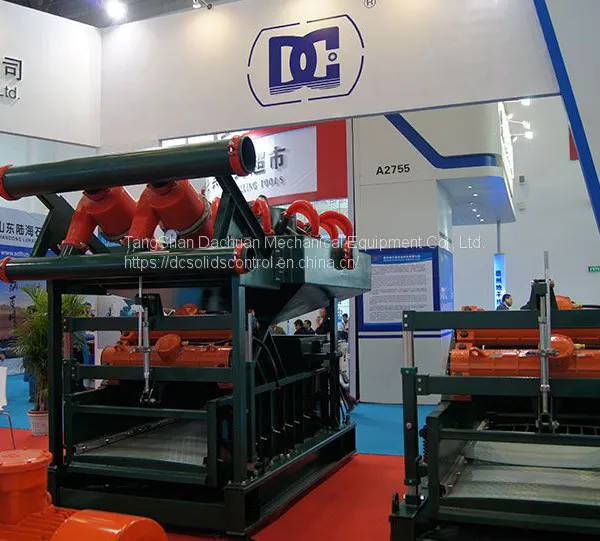

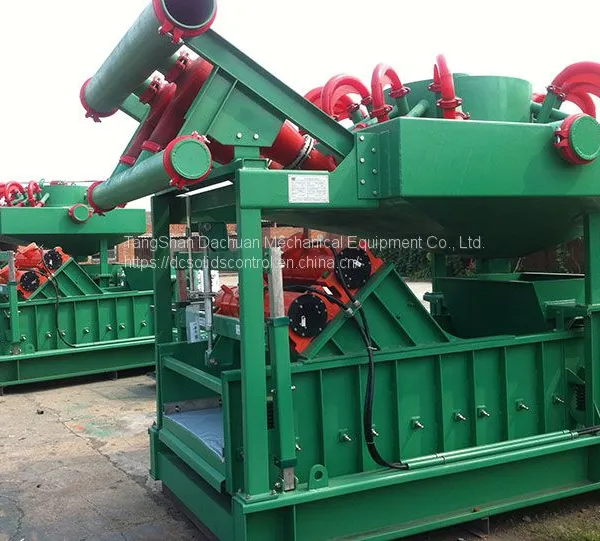

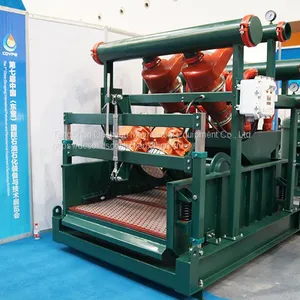

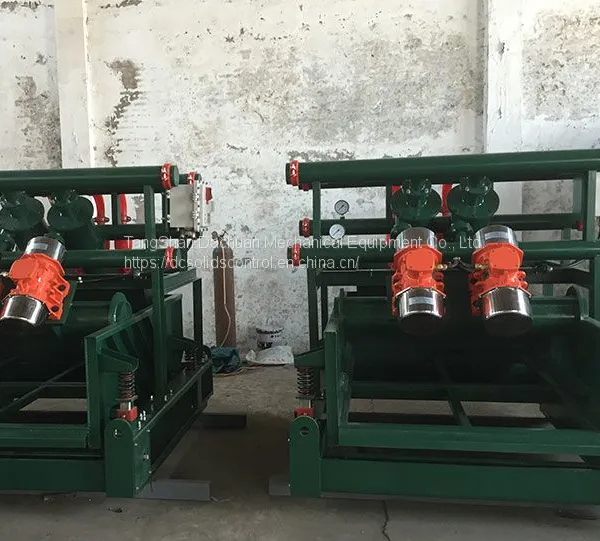

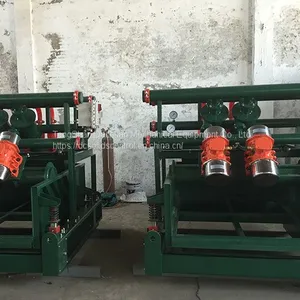

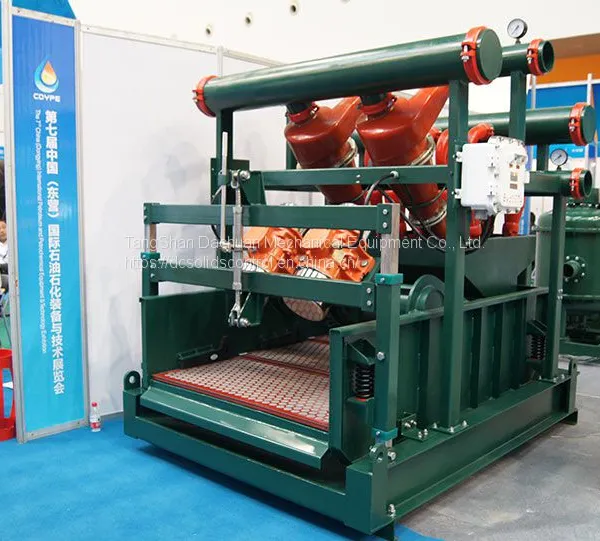

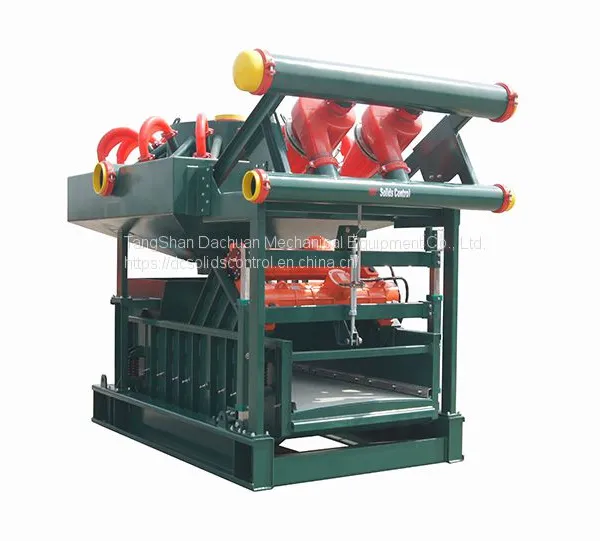

Mud Cleaner is the mud cleaning equipment combination of desander,desilter hydrocyclone and an underflow shale shaker.

（1）Compact structure, powerful function and small footprint area.

（2）The material of hydrocyclone use the wear-resistant special polyurethane.

（3）Underflow shaker equips the DC different model shale shakers.

（4）We can design and manufacture the different numbers of desander and desilter hydrocyclone for clients'requirements.



Mud Cleaner Parameters

Model

DCQJ250 × 1/100 × 6

DCQJ250 × 1/100 × 8

DCQJ250 × 2/100 × 12

DCQJ300 × 2/100 × 16

Treating Capacity

90m3/h
396GPM

120m3/h
528GPM

240m3/h
1056GPM

300m3/h1320GPM

Separation Size

15-75μm

Desander Cones

10"（250） × 1

10"（250） × 1

10"（250） × 2

12"（300） × 2

Desilter Cones

4"（100） × 6

4"（100） × 8

4"（100） × 12

4"（100） × 16

Inlet Diameter

DN150

Outlet Diameter

DN200

Pressure

0.25～0.40MPa

Matching Pump

DCSB5 × 4-12-22kW

DCSB6 × 5-12-30kW

DCSB8 × 6-13-55kW

DCSB8 × 6-13-55kW

Matching Shaker

Model

DCZS850-2K

DCZS700-3G

DCZS630-3K

Vibrating Model

Linear Motion

Motor Power

2 × 1.5kW

2 × 1.5kW

2 × 1.5kW

Screen Qty

2 panel

3 panel

3 panel

Screen Specification

850 × 1250mm × 2 panel，120～300mesh

700 × 1050mm × 3 panel，120～300mesh

630 × 1250mm × 3 panel，120～300mesh

Screen Area

2.12m2

2.2 m2

2.36 m2

Screen Type

Steel Frame

Hookstrip

Steel Frame

Electric Specs

380V/50HZ or 460V/60HZ or Customized

EX Standard

Ex dⅡBT4

Dimension

2530 × 1750 × 2210 mm

2530 × 1750 × 2210 mm

2530 × 1750 × 2210 mm

2530 × 1750 × 2210 mm

Weight

1780kg

2080kg

2200kg

2350kg

Remark

1、4" Cones =10～20m3/h, 10" Cones =90~120m3/h ，12" Cones＞120m3/h 2、The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3
