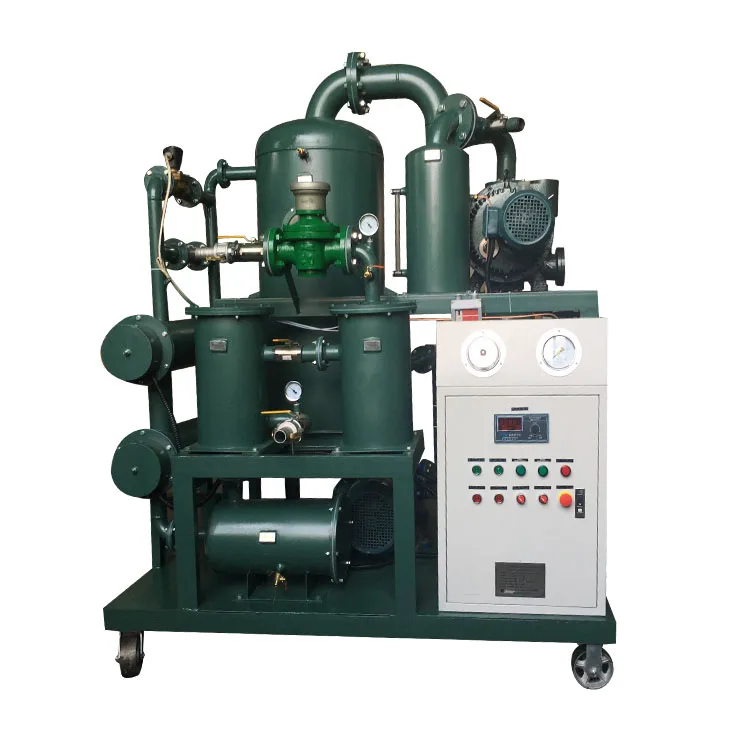

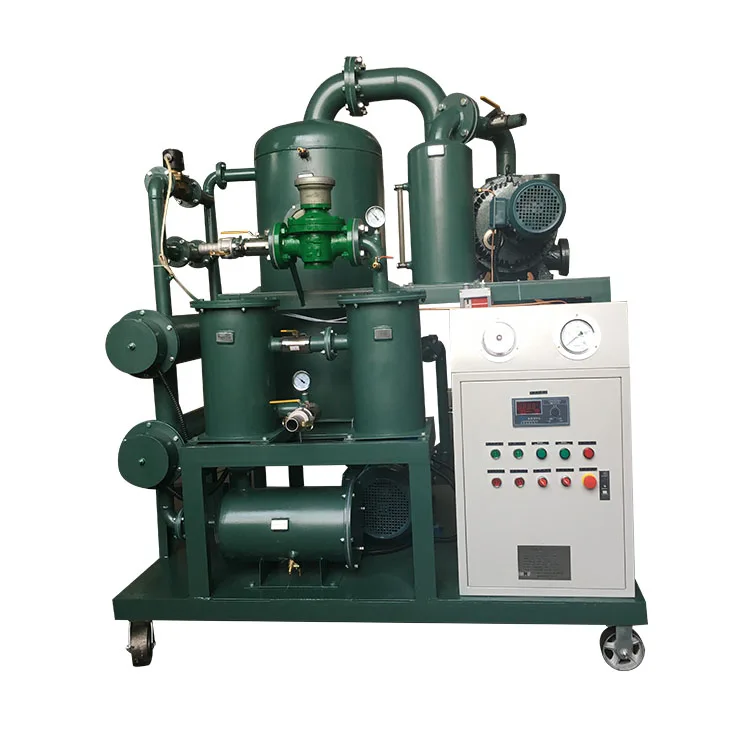

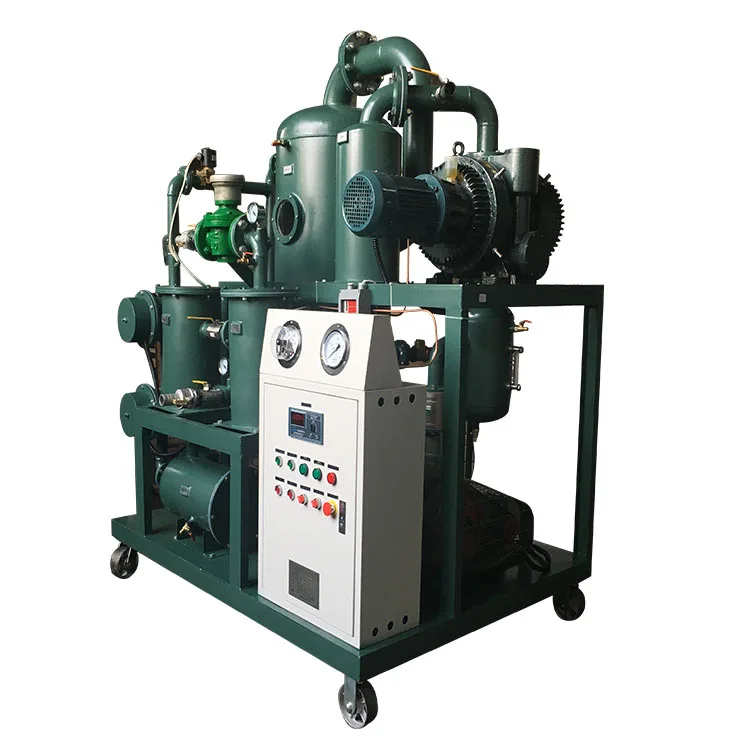

Help CenterZYD-150 Double Stage Transformer Oil Purification Machine
Related Products
-
ZYD-100 Ultra-high Voltage Oil Treatment EquipmeNegotiableMOQ: 1 Unit -
ZYD-50 Ultra-high Voltage Oil Treatment EquipmeNegotiableMOQ: 1 Unit
-
ZYD-100 Ultra-high Voltage Oil Treatment EquipmeUS$ 7000 - 10000MOQ: 1 Unit
-
ZYD-150 Ultra-high Voltage Oil Treatment EquipmeNegotiableMOQ: 1 Unit
-
ZYD-300 Ultra-high Voltage Oil Treatment EquipmeUS$ 8000 - 30000MOQ: 1 Unit
Double-Stage Vacuum Mini Used Oil Recycling Machine for Small Scale Oil Refinery
Double-Stage Vacuum Oil Purifier, Oil Filtration Machine with portable transformer oil tester quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally.
Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Technology
1.Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2.Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3.Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6.Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.If there is any fault, machine will be power off automatically.
8.Functions of live line work onsite, vacuum drying and vacuum oil filling.
Technical parameters
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working Vacuum |
Mpa |
-0.08 ~-0.099 |
|||||||
Working Pressure |
Mpa |
≤ 0.3 |
|||||||
Temp Range |
℃ |
20 ~80 |
|||||||
Power Supply |
380V/ 50Hz/ 3Phase( As per your requirement) |
||||||||
Working Noise |
Db |
60 - 80 (Depended on the configuation) |
|||||||
Heating Power |
KW |
30 |
30 |
48 |
72 |
72 |
90 |
120 |
|
Total Power |
KW |
33 |
35 |
55 |
80 |
82 |
102 |
135 |
|
Inlet/Outlet Diam |
MM |
25 |
32 |
42 |
50 |
50 |
60 |
60 |
|
Weight |
KG |
450 |
550 |
750 |
950 |
1200 |
1850 |
2000 |
|
Advantages
Comparing with the single-stage vacuum oil purifier,
1.This machine dewater, degas and removes the impurities more quickly, more completely, and Makes the oils limiting voltage-withstand value much higher.
2.As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply.
We are a leading oil purifier manufacturer all over the world.Chongqing Zhongneng Oil Purifier Manufacture Group engaged in developing, producing, selling a series of equipments that regenerate and purify all kinds of oils, such as engine oil, lubricating oil, transformer oil, turbine oil, insulating oil, fuel oil, mixed black oil and so on.Our oil purifiers have been exported to many countries and gain high reputation.
If This not your needing type, follow is our catalogue for your to choose:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier(Application Large Power Equipments Of Above110KV especially for those over 500 Meters Height Area).
Series ZYB Multiply-Function Insulating Oil Treatment Machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating Oil/Hydraulic Oil Purification unit(Apply to Degassing)
Series TYA-C Luricating Oil Purification Machine(Apply to Decolorization)
Series BOD Black Dirty Oil Regeneraion Equipment
Series DOD Waste Oil Distillation System
Series TYB Portable Light Fuel oil Purification Machine
Series LY Plate Pressure Oil Purifier
Series TYD Vacuum Dehydrator
Series JL Portable Oil Filtering and Oiling Machine
Series IIJ Oil Tester(BDV Tester)
Chongqing Zhongneng Oil Purifier Manufacture Co., Ltd is a leading oil purifier manufacturer in China, which engages in developing, producing, selling a series of oil purifier such as transformer oil purifier, turbine oil purifier, engine oil purifier, lube oil purifier and so on. We practice in this line for eight years, so we have a strong technology and gain rich experience. Our products have been exported to many countries, and get a high reputation.
Since the foundation of our company, under the duty of devoting our efforts to develop the advanced purifier for saving energy sources, adopting the advanced management like SUBI, and with the reliance on the strong technical force, advanced equipments of production, perfect quality check method, fast and outstanding after-sales service, our company has developed into a national big base specialized in producing oil purifier. Our products are outstanding because of its excellence in quality, stability in service, and diversity of products.
Within15-25 days of delivery time, or contingent on oil purifier machine quantity.
Standard wooden case package of export, it is suitable for long distance sea shipping and train transportation, and we will check carefully per packing process before shipment.
Since the foundation of our company, we have been devoting our efforts to developing better purifiers for energy saving. With the intellectual support form our first-rate oil purification experts and encouraged by the company's modern management mechanism, we have developed six series of products, including hundreds of oil purifier models with independent intellectual property and advanced purification technology. Our equipment can be applied to many fields, such as electric power, petroleum chemical, metallurgical industry, mining, aviation, shipping railway and so on.
We adhere to the tenet of mutual-benefit and win-win business. With the sincere and pragmatic work attitude, we would like to open up a new oil purification are with our customers.
We are offering practical and functional products with competitive Price!!
If you have any question, Please Contact with us directly!!
