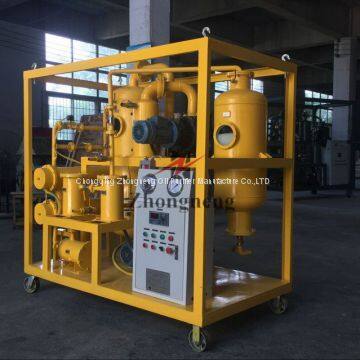

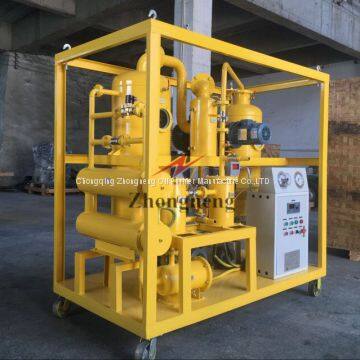

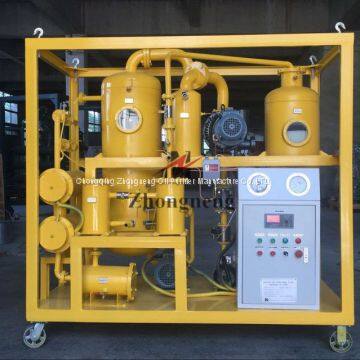

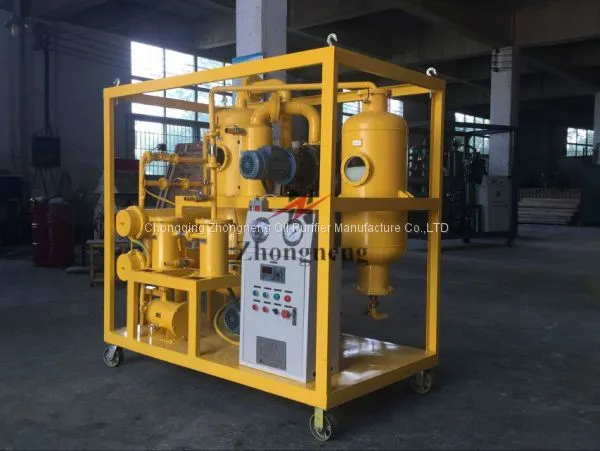

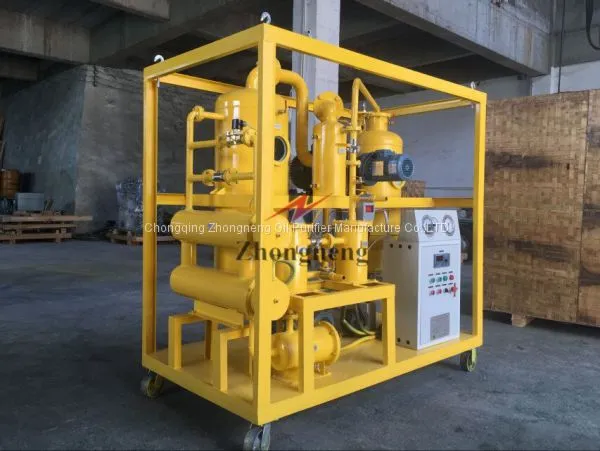

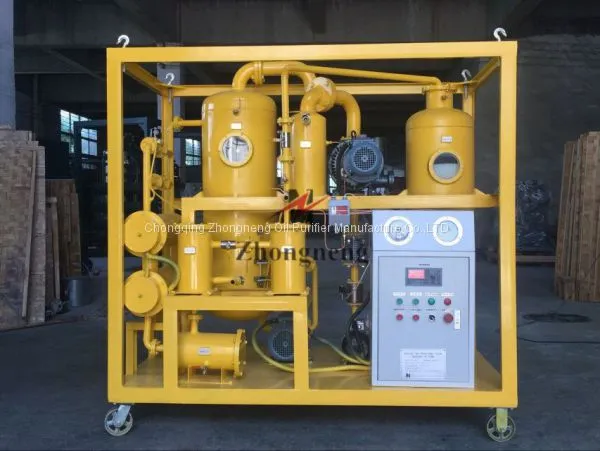

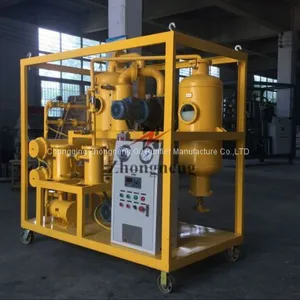

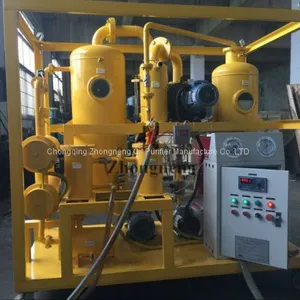

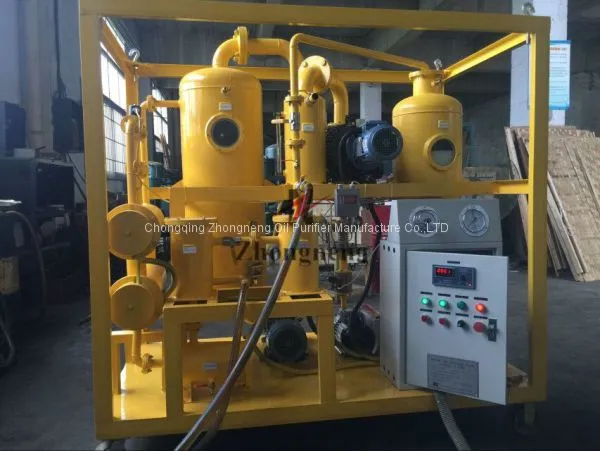

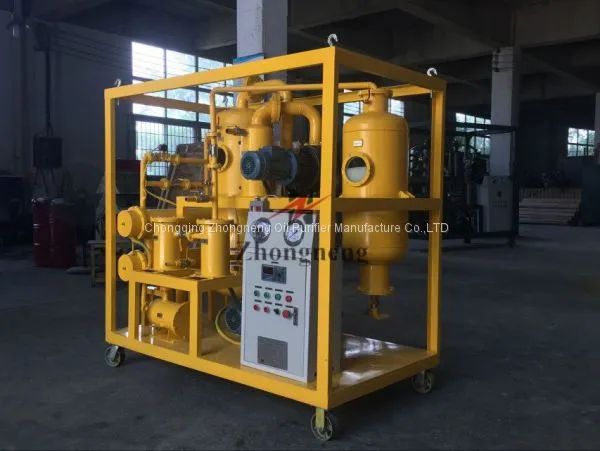

Help CenterWEINENG Profitable ZYD-100 Series Transformer Oil Filtration Plant, Whatsapp: +86 13668080522
Related Products
-
ZYD-150 Double Stage Transformer Oil Purification MachineNegotiableMOQ: 1 Unit -
ZYD-100 Ultra-high Voltage Oil Treatment EquipmeNegotiableMOQ: 1 Unit
-
ZYD-50 Ultra-high Voltage Oil Treatment EquipmeNegotiableMOQ: 1 Unit
-
ZYD-100 Ultra-high Voltage Oil Treatment EquipmeUS$ 7000 - 10000MOQ: 1 Unit
-
ZYD-150 Ultra-high Voltage Oil Treatment EquipmeNegotiableMOQ: 1 Unit
WORKING PRINCIPLE
when this machine start working, the used oil will be injected into the primary filter under the pressure, the primary filter will remove the big impurities, then the oil which just contains the particles is heated by the heater. Then the treated oil enter into the vacuum separator, the vapor is separated from the oil and refrigerate to water under the process of the lowest-vacuum pressure and the degassing equipments. The last procedure is that the fine filter removes the particles completely.
ADVANTAGE
Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and improves the oil breakdown voltage much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.
TECHNICAL DATA
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
Mpa |
-0.08 ～ -0.099 |
|||||||
Working Pressure |
Mpa |
≤0.3 |
|||||||
Temperature Range |
℃ |
20 ～ 80 |
|||||||
Power |
380V/ 50Hz/ 3Phase( Or as per customer’s request) |
||||||||
Working Noise |
Db（A） |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
KW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
KW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
After Filtration | |||||||||

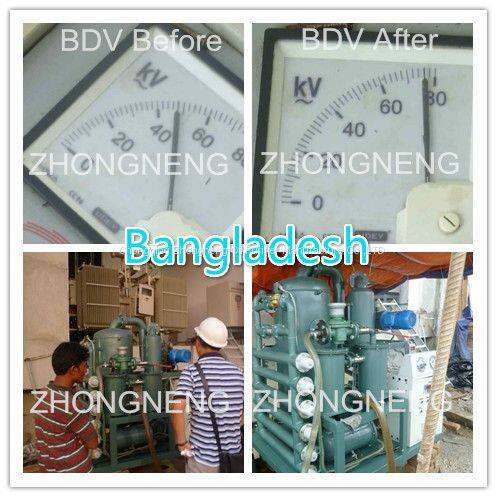

Breakdown Voltage |
KV |
＞70 |
|||||||
Water Content |
PPM |
＜5 |
|||||||
Gas Content |
% |
≤0.1% |
|||||||
Particle Size |
μ |
≤1 ～ 5(without free carbon) |
|||||||
Acid Value |
mgKOH/g ≤0.03 |
||||||||
