Twisted Strand Concertina Razor Barbed Wire Fencing Barbed Wire Mesh

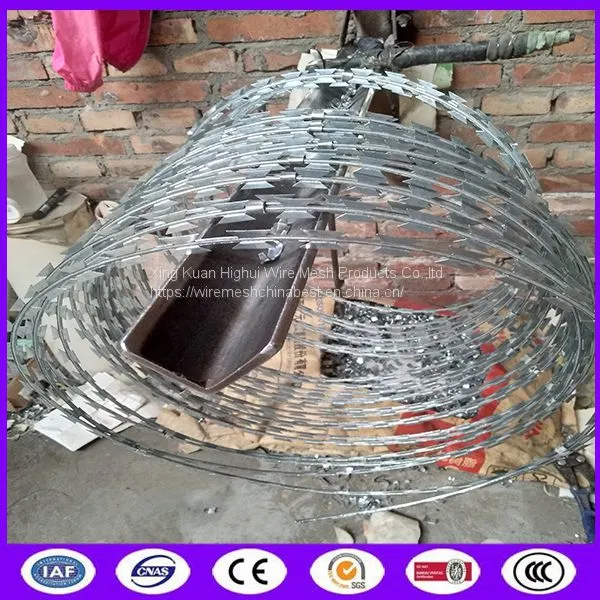

Concertina barbed wire, also called barbed wire concertina, is a combination of common barbed wire and concertina razor wire. Generally, it is made of high tensile single round steel wire and four twisted barbed wire spikes. The single round wire is made of steel wire or stainless steel wire with special surface treatment. While the twisted barbed wire spikes only can be made of iron wire. And the barb spikes are fixed at regular intervals. The same as concertina razor wire, concertina barbed wire is also widely used on top of the existing fences or solid walls, in border, emergence events
| Concertina barbed wire in coil specifications. | |||
| Coil diameter before stretching (mm) | Coil diameter after stretching (mm) | Spiral turns per coil | Clips per spiral |
| 300 | 260 | 33 | 3 |
| 450 | 400 | 54 or 55 | 3 |
| 730 | 600 | 54 or 55 | 3 |
| 730 | 620 | 54 or 55 | 5 |
| 980 | 820 | 54 or 55 | 5 |
| 980 | 850 | 54 or 55 | 7 |
| 1250 | 1150 | 54 or 55 | 9 |
Exampe size :
Twisted barbed spikes wire.
Diameter: 2.0 mm+/-0.05 mm.
Tensile strength: 350 N/m2.
Length of barbs: 13 - 20 mm.
Distance between barbs: 60 mm +/- 16 mm.

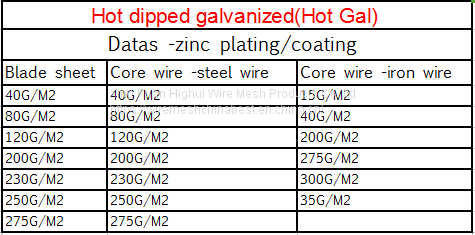

Galvanization: 240 g/m2
Advantage:
galvanized coated
select the high quality materials
good tensile strength
there is a professional team to test the products on regular
Packing and shipping
Simple packing: inside is water proof paper and outside is woven bags and then compression
Carton packing: razor mesh coils are loading into hard carton boxes.
