600mm 10 Mtrs Length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop

600mm 10 Mtrs Length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop photo-1
600mm 10 Mtrs Length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop photo-2
600mm 10 Mtrs Length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop photo-3
600mm 10 Mtrs Length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop photo-4
600mm 10 Mtrs Length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop photo-5
US$ 1 - 10 MOQ: 1 Roll
Key Specifications
Get Latest Price
Place of Origin:
China
Material:
Galvanized Iron Wire
Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Place of Origin China
Material Galvanized Iron Wire
Type Other
Application Fence Mesh
Wire Gauge 2.5mm
Material Galvanized Iron Wire

600mm 10 mtrs length Galvanized Steel Razor Barbed Wire Mesh Crossed Loop

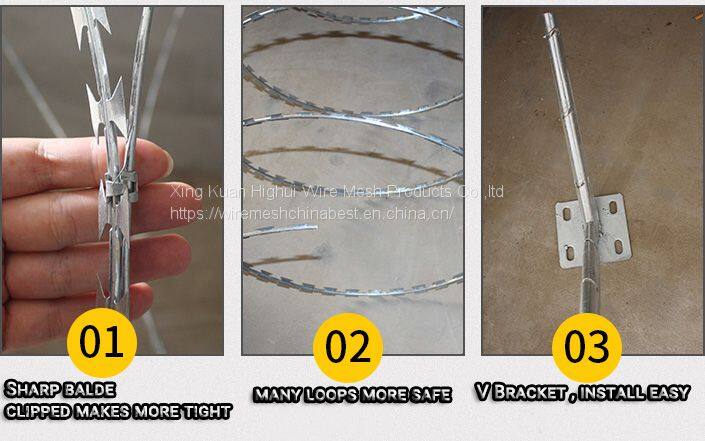

Two spirals of razor wire were bounded together by clips to make it more tight.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.


2. Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65.
3. Razor wire types: straight line razor wire, single coil concertina wire, double coil wire,
welded razor mesh fence.1. Material: Iron ,steel or stainless steel
4. Razor Loop Diameter:
300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
5. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 5KG 7KG 10KG, 12kg, 14kg 15 kg )
6. Meters of per coil Razor Barbed Wire:
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.

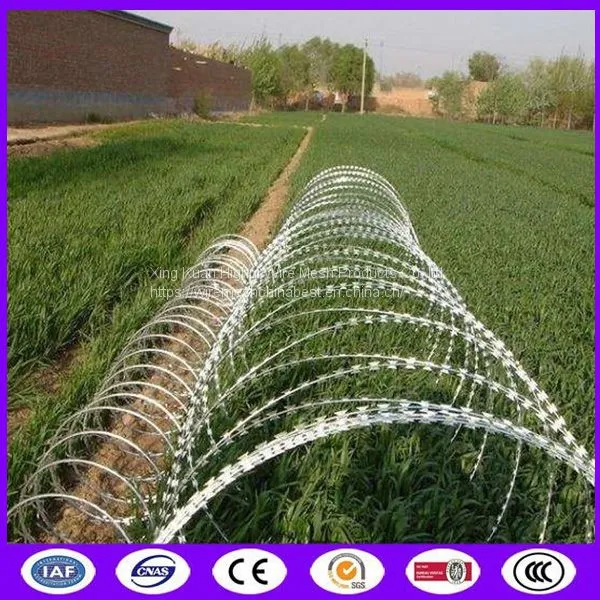

7. Application
    Industrial and mining enterprises
    garden apartment
    border posts
    military field
    prisons
    detention center
    government buildings
    other national security facilities.

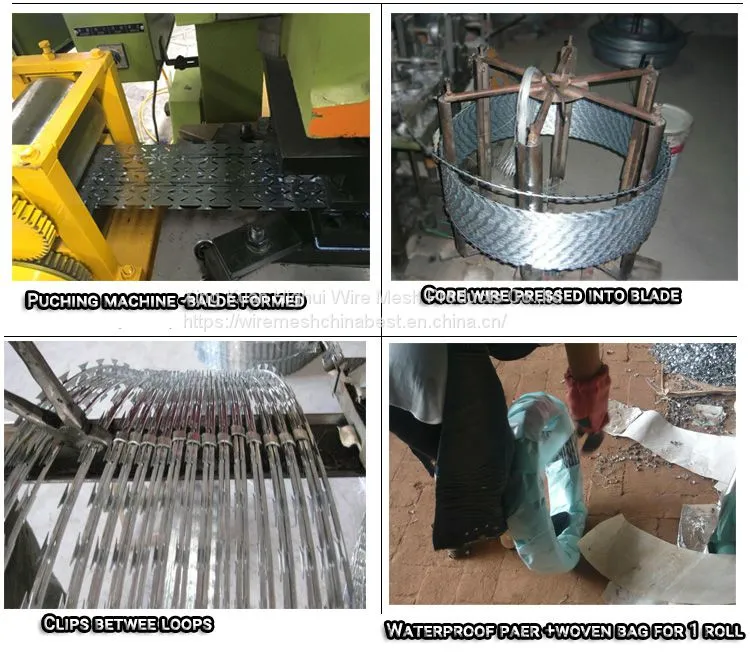

8. Package:
1> Per coil Razor Barbed Wire be packed waterproof paper inside with woven bag outside. Then 50 coils or 100 coils be a bundle with steel strip. Or as customers’ requirement to pack to pallet or carton box.
2> Razor Barbed Wire can be loaded to containers in bulk( that is one by one), but this package will lose the quantity for one container.
3> Also has customers’ request there are no waterproof paper inside. Only just let the Razor Barbed Wire be packed with woven bag then several coils Razor Barbed wire to pallet.
9. Shipping
Shipping time: after receiving deposit, 3-7 work days will sent out factory
Shipping Way: BY sea, by train, by plane

Razor Ribbon barbed tape Parameters:

Cross Razor Wire TypeBTO-10, 11, 22, 28, 30 CBT-60, 65
Spike Length

10mm, 11mm, 22mm, 28mm, 30mm, 60mm, 65mm



The error is within the international range

Regular colors Silver, green other color can be customized
Corrosion resistance Hot dipped galvanized razor, only inner wire has electro and hot dipped
Special CustomYes


Specification
Thickness

(mm)
Wire Dia.

(mm)
Barb Length

(mm)
Barb Width

(mm)
Barb spacing

(mm)
BTO-100.45±0.052.0-3.010±113±126±1
BTO-120.45±0.052.0-3.012±115±126±1
BTO-180.45±0.052.0-3.018±115±133±1
BTO-220.45±0.052.0-3.022±115±134±1
BTO-280.45±0.052.0-3.028±115±145±1
BTO-300.45±0.052.0-3.030±118±145±1
CBT-600.45±0.052.0-3.060±232±1100±2
CBT-650.45±0.052.0-3.065±221±1100±2
