Low Noise Rotary Air Blower

Low Noise Rotary Air Blower thumbnail-1
Low Noise Rotary Air Blower thumbnail-2
Low Noise Rotary Air Blower thumbnail-3
Low Noise Rotary Air Blower thumbnail-4
Low Noise Rotary Air Blower thumbnail-5
Low Noise Rotary Air Blower photo-1
Low Noise Rotary Air Blower photo-2
Low Noise Rotary Air Blower photo-3
Low Noise Rotary Air Blower photo-4
Low Noise Rotary Air Blower photo-5
US$ 500 - 2000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JSMY
Place of Origin:
China
Model Number:
SL
Contact Supplier Request Quote Chat Now
Jiangsu Ming Ye Machinery Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JSMY
Place of Origin China
Model Number SL

Rotary blower air pressure range:  0.1-0.5 kgf/cm2

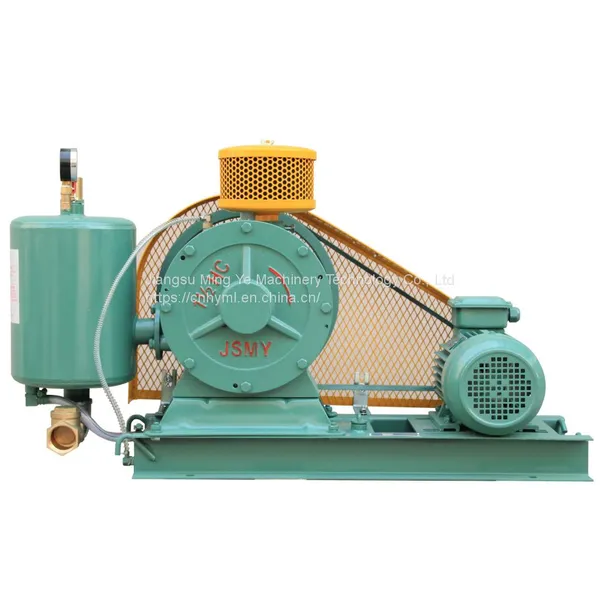

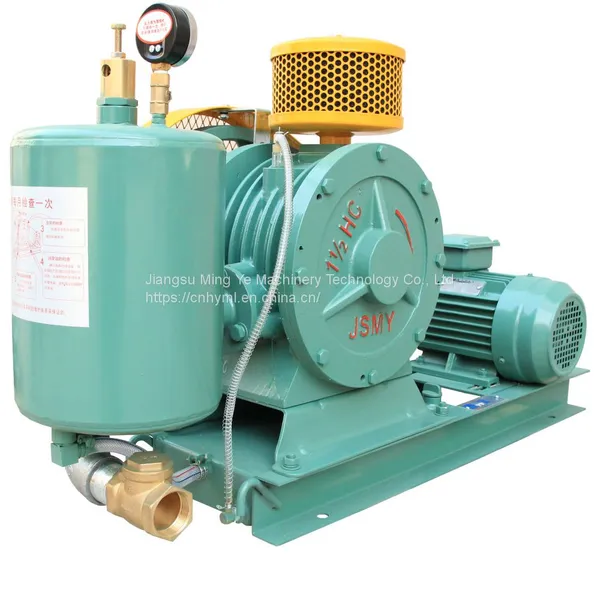

The rotary blower has an exquisite structure and is mainly composed of six parts: motor, air filter, blower main engine, air chamber, base (and oil tank), oil dripping nozzle



The blower operates on the eccentric rotor offset in the cylinder, it makes the volume change between the lobes in the rotor slot to suck in, compress, and discharge air



During operation, the pressure difference of the blower is used to automatically send the lubricating oil to the drip nozzle, drip into the cylinder to reduce friction and noise, and at the same time reduce the return of air in the cylinder




model

Exhaust port  Dia

(mm)



Motor

power



Frequency

Speed

               AIR FLOW

V  belt pulley

V  belt

Oil  tank

Oil storage

(Effective Oil quantity)

 Weight

RPM

0.1kgf/cm2

0.2kgf/cm2

0.3kgf/cm2

0.4kgf/

cm2

0.5kgf/cm2

blower

motor


Net weight

Gross weight

HC-25S

3/4” (20)

0.37KW

50HZ

430

0.278

0.265

0.250

0.237

0.225

8”

3”

A-889

1.2L (0.9L)

40KG

45KG

HC-251S

3/4” (20)

0.55KW

50HZ

450

0.32

0.31

0.3

0.29

0.29

8”

21/2”

A-1016

1.5L (1.1L)

44KG

51KG

HC-30S

1”(25)

0.55KW

50HZ

430

0.36

0.35

0.34

0.33

0.32

10”

3”

A-1118

1.5L (1.1L)

50KG

57KG

HC-301S

1”(25)

0.75KW

50HZ

520

0.43

0.425

0.42

0.41

0.4

10”

31/2”

A-1143

1.5L (1.1L)

50KG

57KG

HC-40S

11/4” (23)

0.75KW

50HZ

500

0.68

0.67

0.66

0.65

0.62

12”

4”

A-1321

2.5L (1.7L)

80KG

88KG

HC-401S

11/4”(32)

1.5KW

50HZ

580

0.84

0.82

0.8

0.74

0.7

12”

41/2”

A-1321

2.5L (1.7L)

85KG

93KG

HC-50S

11/2”(40)

1.5KW

50HZ

430

1.2

1.15

1.1

1.08

1.05

14”

4”

A-1600

3.5L (2.3L)

120KG

130KG

HC-501S

11/2”(40)

2.2KW

50HZ

500

1.5

1.47

1.45

1.41

1.4

14”

41/2”

A-1600

3.5L (2.3L)

125KG

135KG

HC-60S

2”(50)

2.2KW

50HZ

450

2

1.95

1.9

1.8

1.75

16”

5”

B-1880

5.5L (3.8L)

190KG

223KG

HC-601S

2”(50)

4KW

50HZ

540

2.5

2.45

2.4

2.3

2.25

16”

6”

B-1880

5.5L (3.8L)

200KG

233KG

HC-80S

21/2”(65)

4KW

50HZ

430

2.95

2.8

2.75

2.65

2.6

18”

51/2”

B-2108

8L (6L)

250KG

268KG

HC-801S

21/2”(65)

5.5KW

50HZ

500

3.65

3.6

3.5

3.4

3.3

18”

6”

B-2134

8L (6L)

275KG

293KG

HC-100S

3” (80)

5.5KW

50HZ

390

4.5

4.45

4.4

4.3

4.2

20”

51/2”

B-2362

20L (16L)

375KG

395KG

HC-1001S

3” (80)

7.5KW

50HZ

420

5.6

5.5

5.4

5.3

5.2

20”

6”

B-2362

20L (16L)

390KG

410KG
