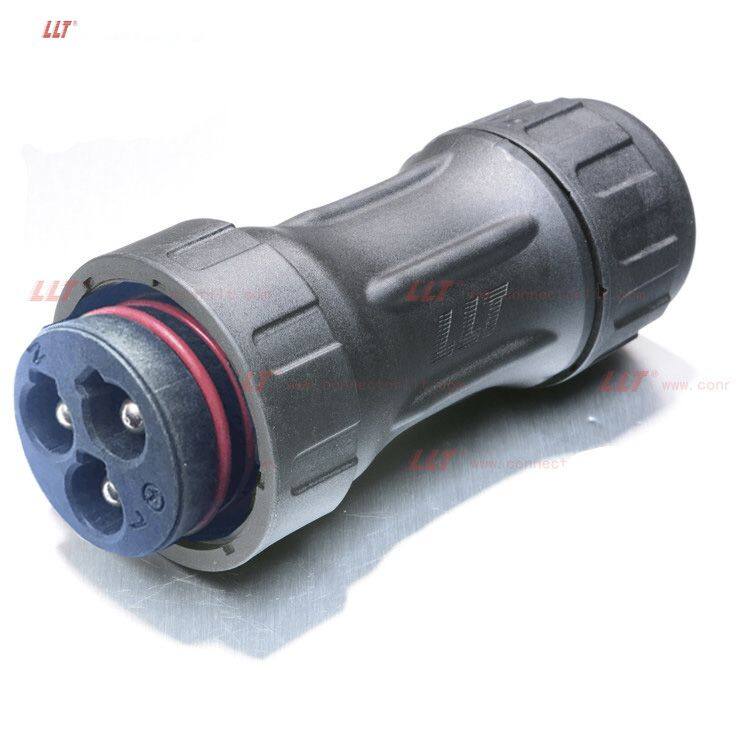

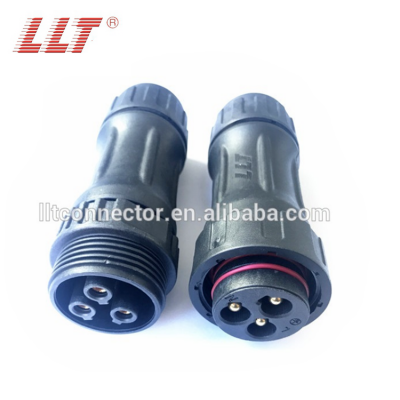

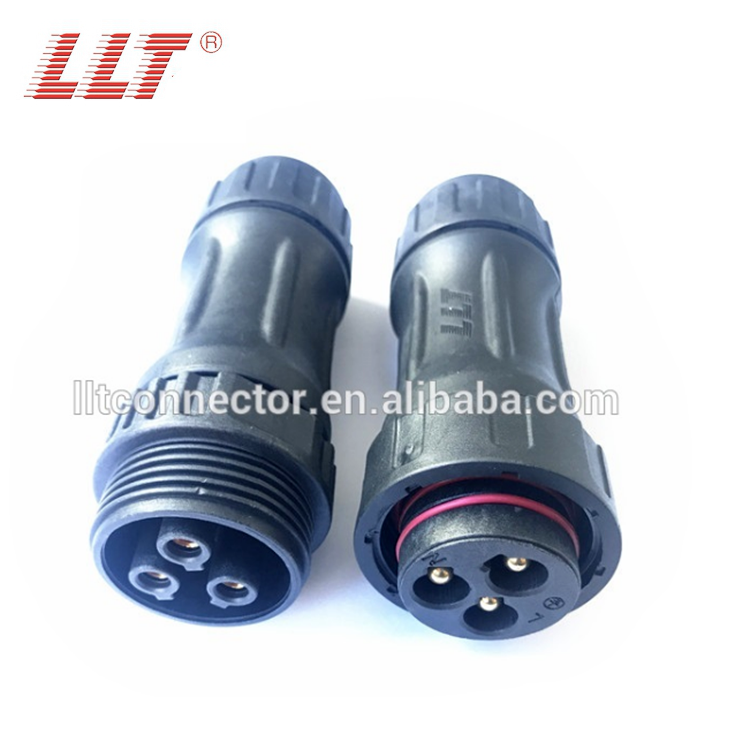

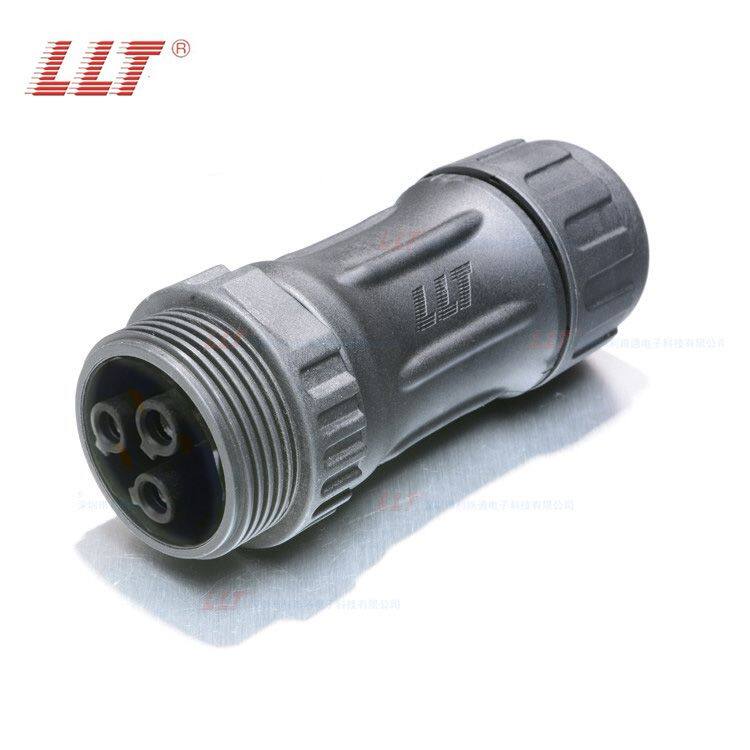

Ip68 Waterproof Power 3pin Connector 2 3 4Pin Waterproof Electrical Large Ampere Connector
US$ 10 - 14
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-M45-70003M1052
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Electronic Industrial M45 4Pin Power Insulated 2 3 4 Pin Waterproof Led ConnectorUS$ 10 - 14MOQ: 10 Pairs -
Led Plastic Waterproof 2+2pin Power Assembly Cable ConnectorUS$ 2 - 4MOQ: 10 Pairs
-
2pin Plug Socket Plastic Ip68 Plastic LED 2 3 4 5 6 8 12 18 20 24 36 37pin Waterproof ConnectorUS$ 2 - 4MOQ: 10 Pairs
-
3pin M29 Ip68 Assembled Waterproof Electrical Cable Connector Waterproof Connector PlugNegotiableMOQ: 10 Pairs
-
4 Wire Connector M29 Famale Male Lightning Waterproof 2 3 4 5 6 8 12 18 36pin Automotive Plug ConnectorUS$ 2 - 4MOQ: 10 Pairs
Brand Name
LLT
Place of Origin
China
Model Number
LLT-M45-70003M1052
Type
Other, M45 waterproof connector
Application
Power
Gender
Male
Specification:
Model number:LLT-M45-70003M1052
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°CCurrent rating:70A
Voltage rating:600V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4pin
Max Cable Range:28mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°CCurrent rating:70A
Voltage rating:600V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4pin
Max Cable Range:28mm
Terminal attach wire :Screw
