Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Llt L25 Cable Gland 3 Pin Connector,Ip67 Ip68 Waterproof Led Strip Light Cable Connector

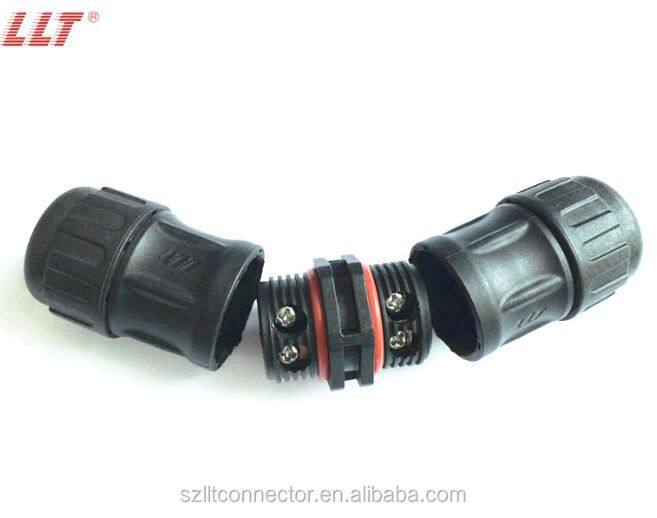

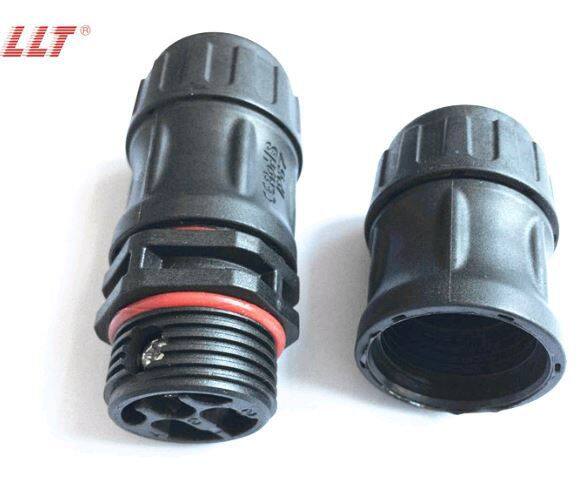

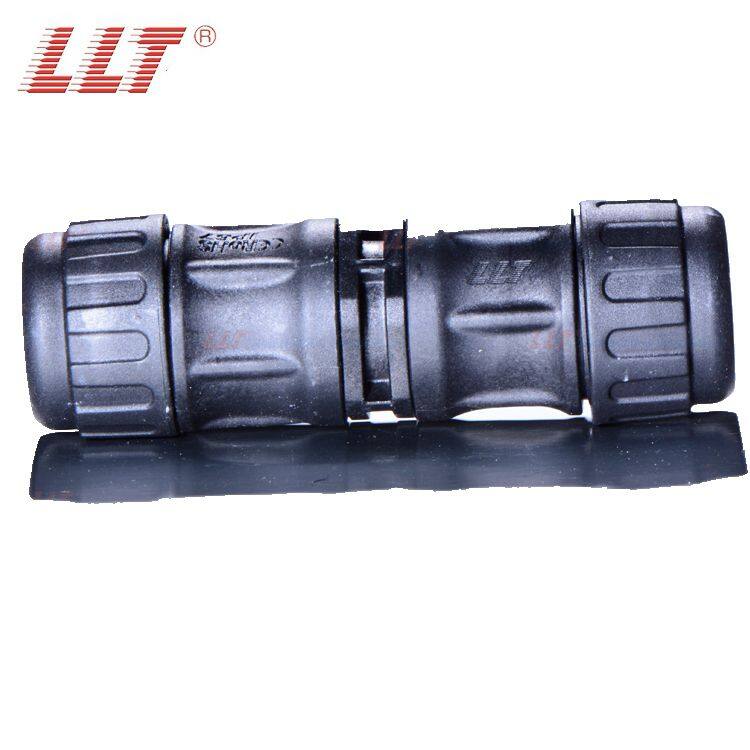

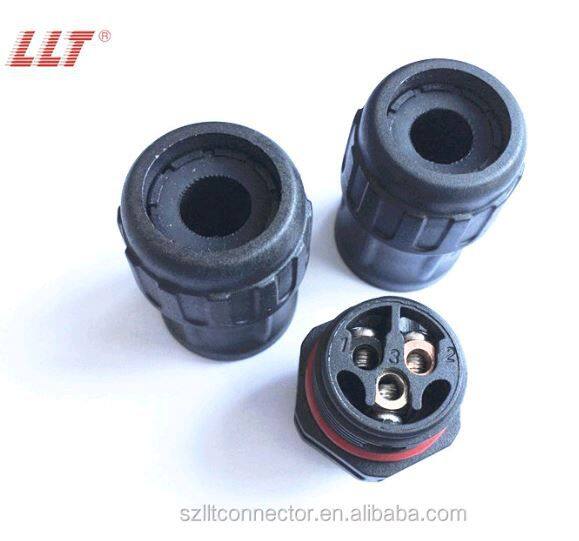

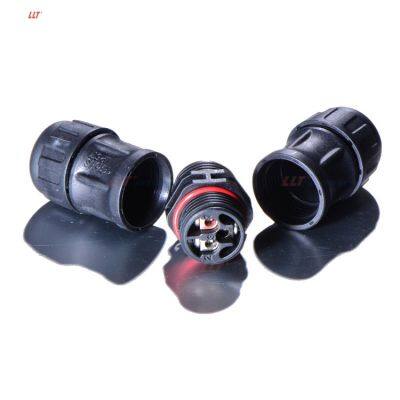

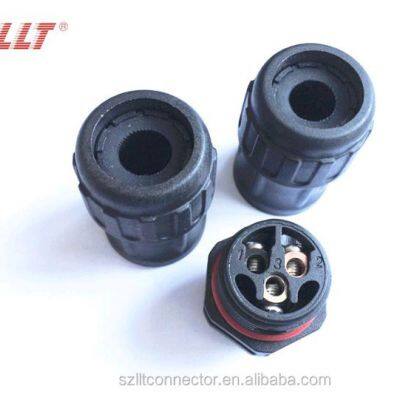

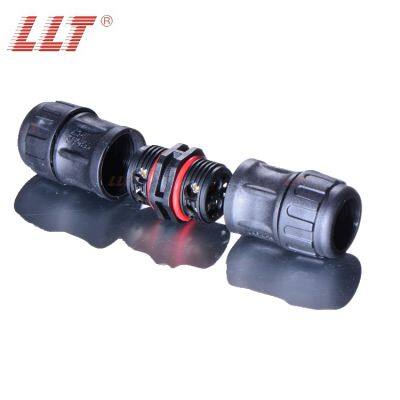

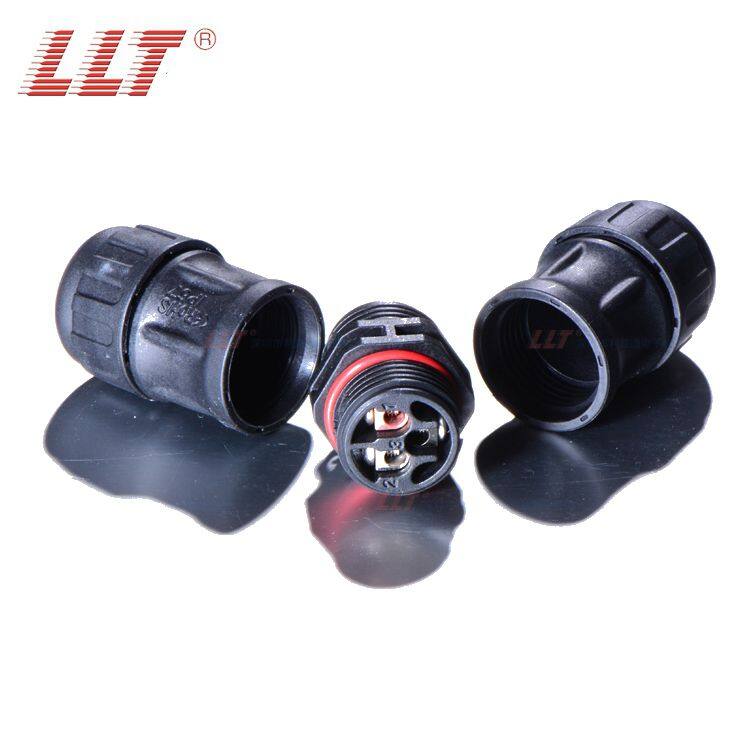

Llt L25 Cable Gland 3 Pin Connector,Ip67 Ip68 Waterproof Led Strip Light Cable Connector
US$ 2 - 3
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-L25-350003L0001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
4way Waterproof 3pin Connector 2 3 4 Pins 300V 35A IP67 Electric Distribution Led Outdoor Electrical ConnectorUS$ 2 - 4MOQ: 10 Pieces -
4way 3pin Waterproof Connector 2 3 4Pins 600V 35A IP67 Electric Distribution Led Display Automotive ConnectorUS$ 2 - 4MOQ: 10 Pieces
-
Llt L25 Ip67 Ip68 Waterproof 2 3 4 Pin High Power Screw Fixing Cross Waterproof 3pin ConnectorUS$ 3 - 4.5MOQ: 10 Pieces
-
Tuv L25 Screw Pins Electric Wire Connector Types,Ip67 Waterproof Power Adapter ConnectorUS$ 2 - 4MOQ: 10 Pieces
-
Waterproof Led Strip 3pin Connector M12 Industrial Circular LED Power Cable 2 4 5 6 7 8 Pin ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
Brand Name
LLT
Place of Origin
China
Model Number
LLT-L25-350003L0001
Type
Other, L25 waterproof connector
Application
Power
Gender
Other, Attach wire by screw
Specification:
Model number:LLT-L25-350003L0001
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:35A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4pin
Cable Range:9-16mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:35A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4pin
Cable Range:9-16mm
