Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Llt L20 Screw Type Waterproof Cable Connector,2 3 4 Pins Inline Cable Connector

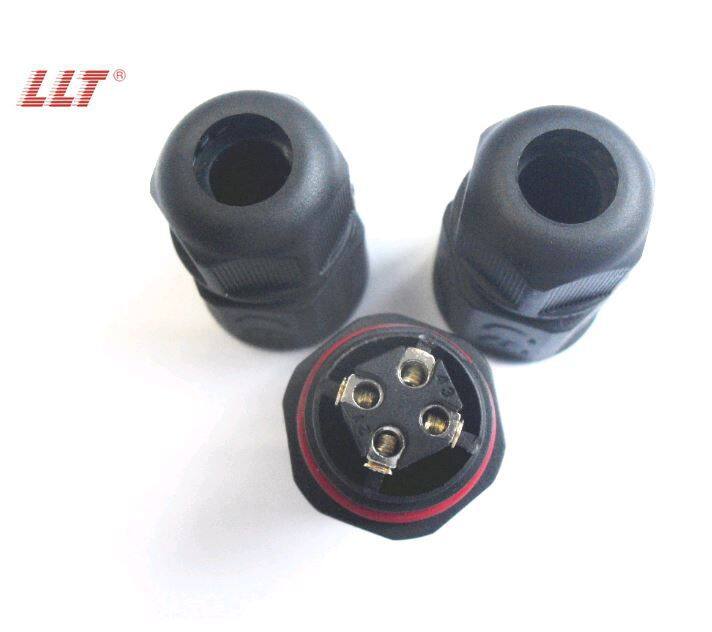

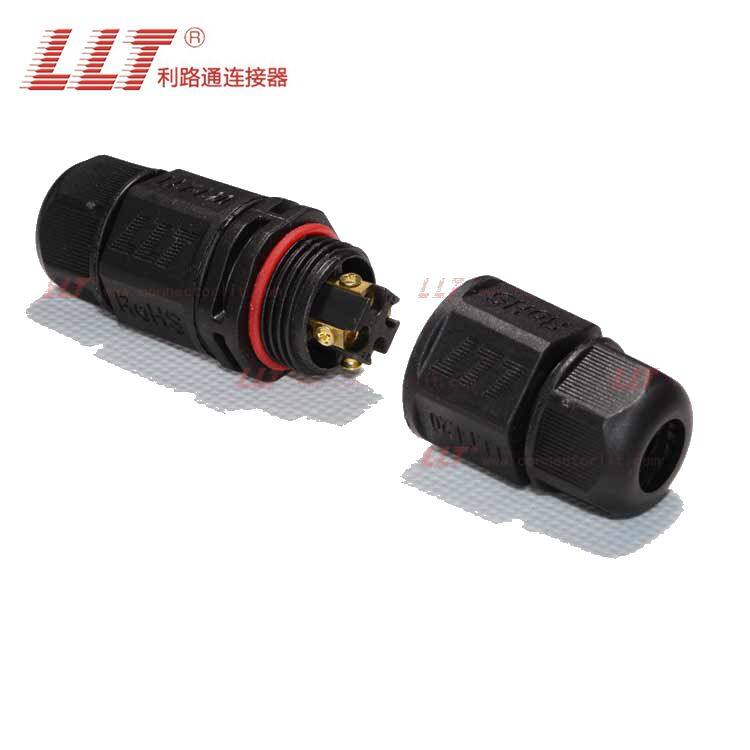

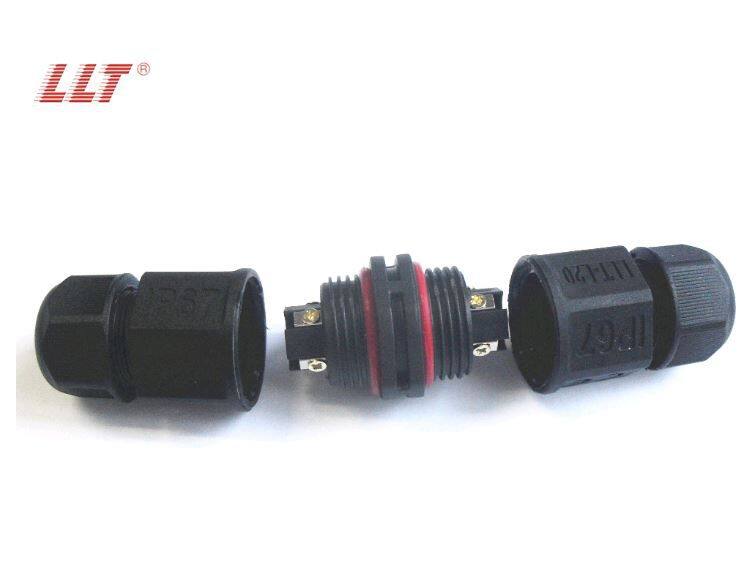

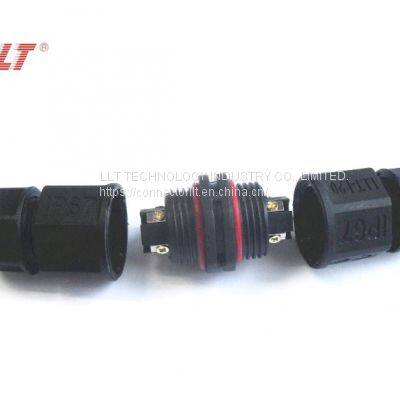

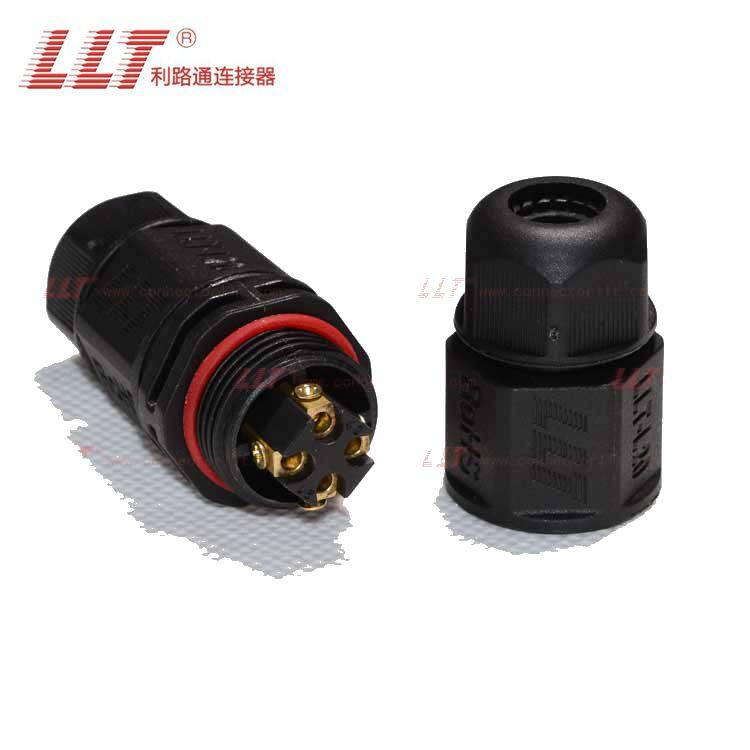

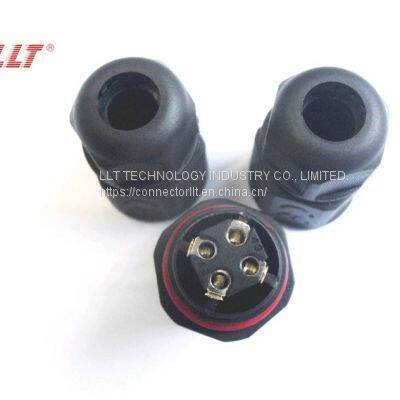

Llt L20 Screw Type Waterproof Cable Connector,2 3 4 Pins Inline Cable Connector
US$ 2 - 2.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
LLT
Model Number:
LLT-L20-20004L0001
Type:
Other, L20 waterproof connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Hot Selling IP68 3 Way T Splitter Waterproof Connector With Screw Fixing Cable 3pin Terminal ConnectorUS$ 2 - 4MOQ: 10 Pieces -
Power Cable T Connector 2 3 4 Pin Waterproof Ip68 Plastic Waterproof Electrical Wire 2pin 3way ConnectorUS$ 2.5 - 3MOQ: 10 Pieces
-
4 Way 2pin Corss L20 Connector Thread Waterproof Screw Wire 2 3 4pin Cross Electrical ConnectorUS$ 2 - 4MOQ: 10 Pieces
-
2 3 4 Pin 2 Way L Type L20 Screw Wire Circular Ip67 Waterproof Led Electrical ConnectorUS$ 1.7 - 2.2MOQ: 10 Pieces
-
Llt L25 Ip67 Ip68 Waterproof 2 3 4 Pin High Power Screw Fixing Cross Waterproof 3pin ConnectorUS$ 3 - 4.5MOQ: 10 Pieces
Brand Name
LLT
Model Number
LLT-L20-20004L0001
Type
Other, L20 waterproof connector
Application
Power
Gender
Other, Screw wire
Specification:
Model number:LLT-L20-20004L0001
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:20A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4 pin.
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:20A
Voltage rating:300V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4 pin.
Terminal attach wire:Screw
Max Cable OD:11mm
Max Cable OD:11mm
