Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Led Plastic Waterproof 2+2pin Power Assembly Cable Connector

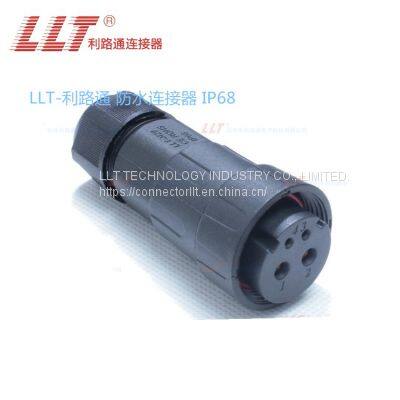

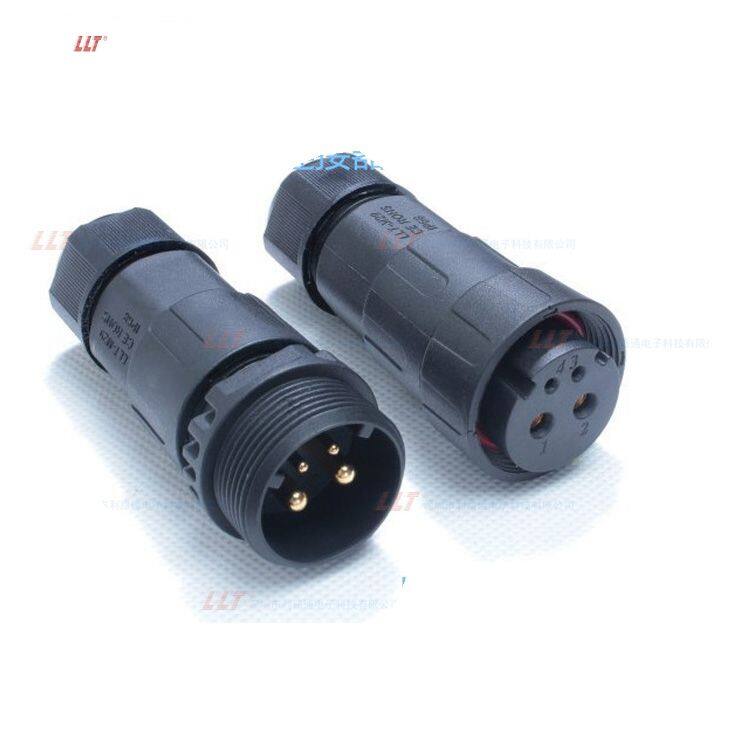

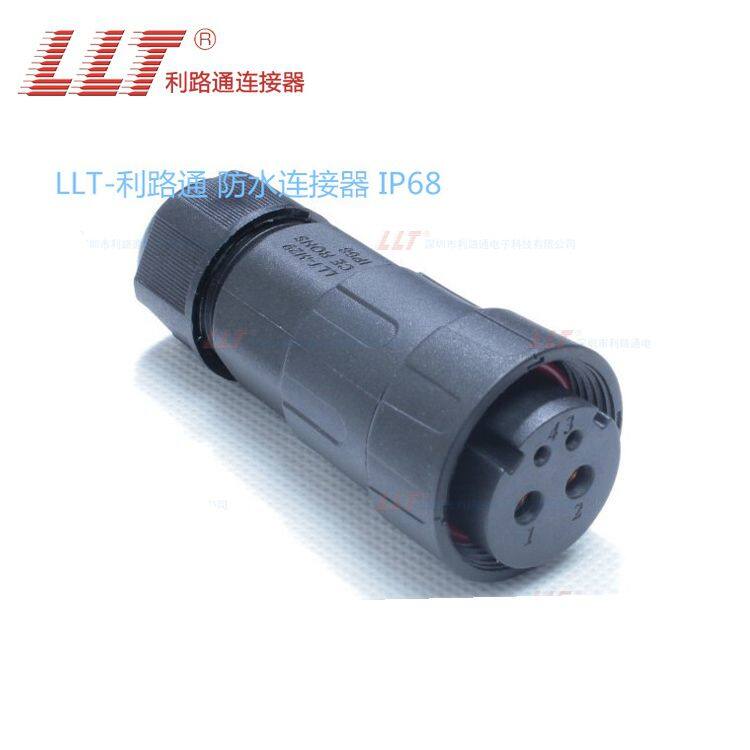

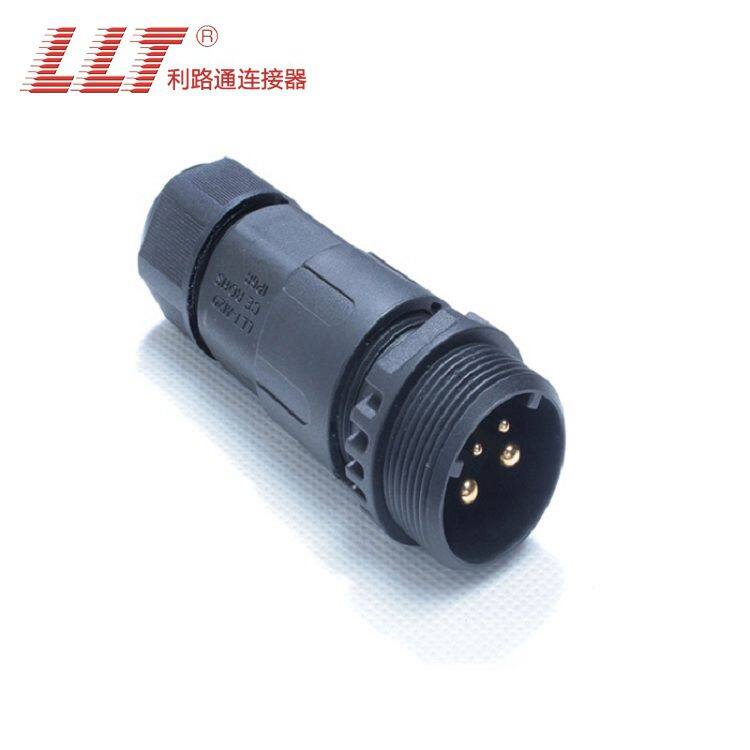

Led Plastic Waterproof 2+2pin Power Assembly Cable Connector
US$ 2 - 4
MOQ: 10 Pairs
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-M29-35202F1051
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
2pin Plug Socket Plastic Ip68 Plastic LED 2 3 4 5 6 8 12 18 20 24 36 37pin Waterproof ConnectorUS$ 2 - 4MOQ: 10 Pairs -
3pin M29 Ip68 Assembled Waterproof Electrical Cable Connector Waterproof Connector PlugNegotiableMOQ: 10 Pairs
-
4 Wire Connector M29 Famale Male Lightning Waterproof 2 3 4 5 6 8 12 18 36pin Automotive Plug ConnectorUS$ 2 - 4MOQ: 10 Pairs
-
Mini Sensor 3pin M12 Thread Lock IP68 Waterproof Solder Wire Connector 4 5 6 7pinUS$ 1 - 3MOQ: 10 Pairs
-
Power Cable T Connector 2 3 4 Pin Waterproof Ip68 Plastic Waterproof Electrical Wire 2pin 3way ConnectorUS$ 2.5 - 3MOQ: 10 Pieces
Brand Name
LLT
Place of Origin
China
Model Number
LLT-M29-35202F1051
Type
Other, M29 watereproof connector
Application
Power
Gender
Female
Specification:
Model number:LLT-M29-35202F1051
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:35A+10A
Voltage rating:500V+110V
Waterproof Rating:IP67
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 8 and12/18/20/24pin
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:35A+10A
Voltage rating:500V+110V
Waterproof Rating:IP67
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2 to 8 and12/18/20/24pin
36pin
Max Cable Range:15mm
Max Cable Range:15mm
