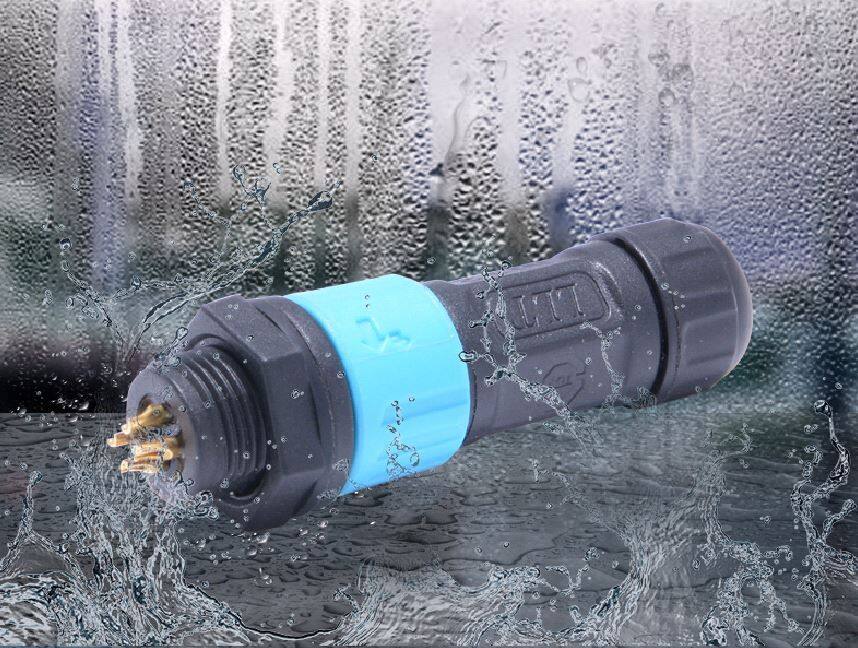

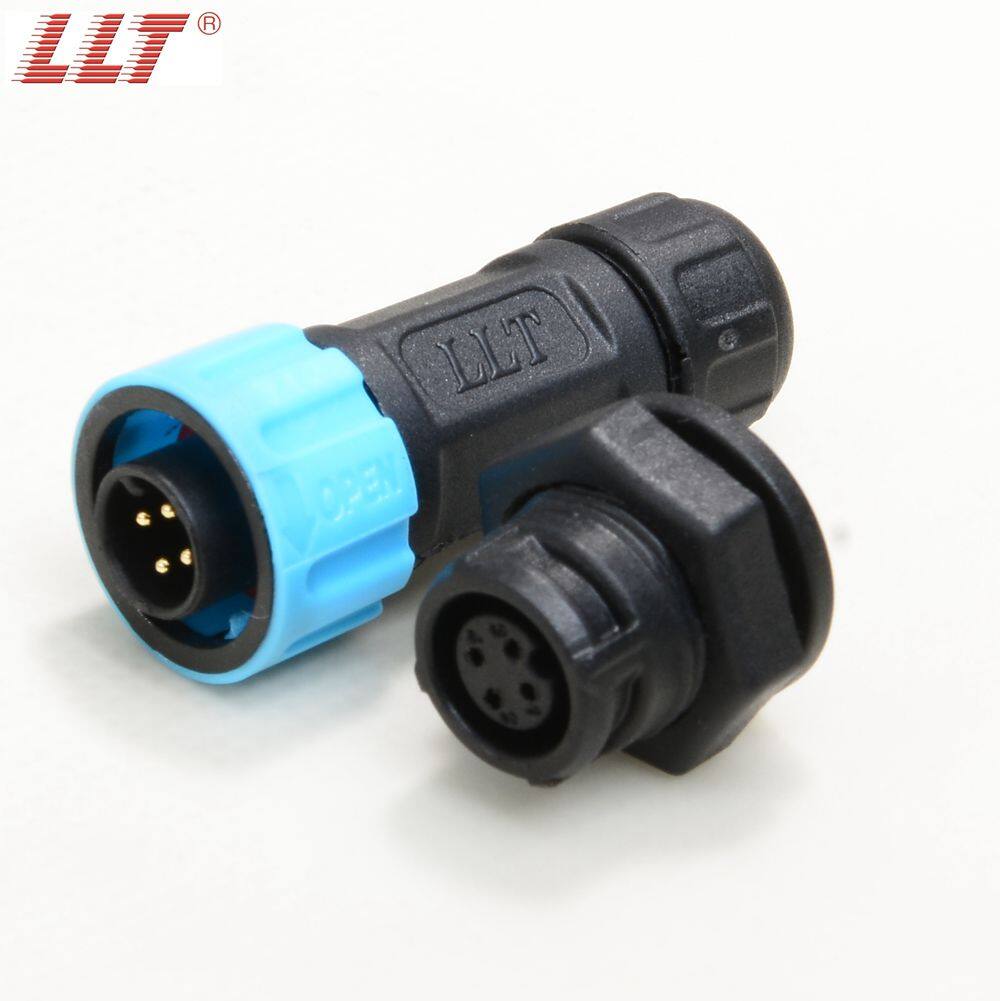

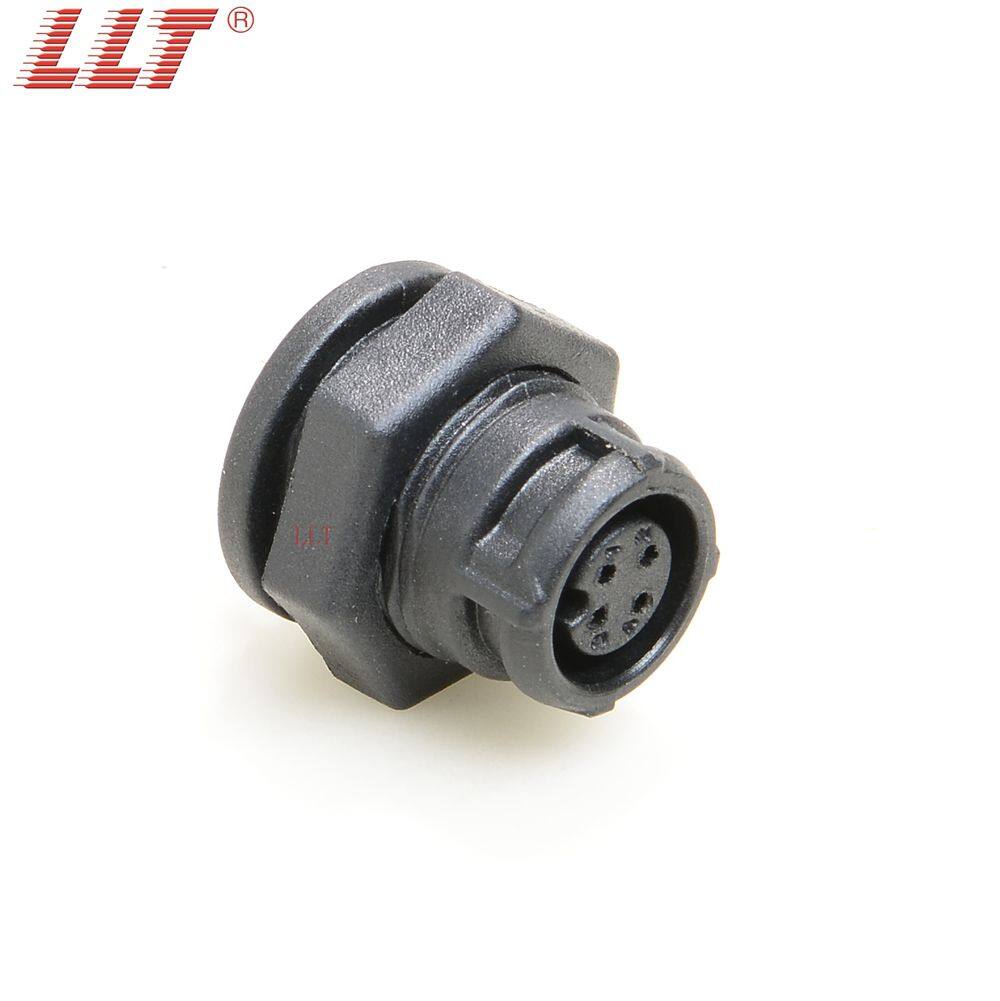

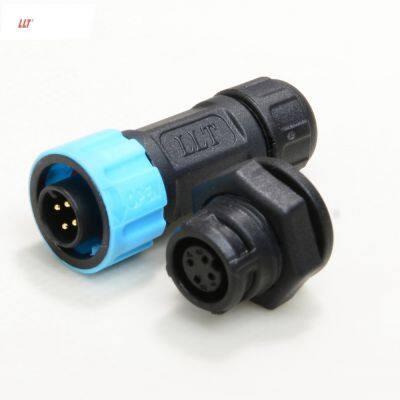

Led Strips Assembly Panel 4pin Connector Automotive Electric Plug Waterproof 2 3 4 5 6 7 8 2+4pin M12 Connector
US$ 1.5 - 3
MOQ: 10 Pairs
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-M12-10004F2841
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Waterproof Cable Connector 2pin Plug Socket IP67 Wire Electrical Wire 2 3 4 5 7 8 2+2pin Connector M12US$ 1.5 - 3MOQ: 10 Pieces -
Mini Sensor 3pin M12 Thread Lock IP68 Waterproof Solder Wire Connector 4 5 6 7pinUS$ 1 - 3MOQ: 10 Pairs
-
Waterproof Led Strip 3pin Connector M12 Industrial Circular LED Power Cable 2 4 5 6 7 8 Pin ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
Waterproof Connector Ip68 4pin Power Waterproof Watertight Low Voltage Sensor Led Cable Llt M12 ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
4pin Panel Mount M12 Waterproof Aviation Led IP67 ConnectorNegotiableMOQ: 10 Pairs
Brand Name
LLT
Place of Origin
China
Model Number
LLT-M12-10004F2841
Type
Other, M12 panel connector
Application
PCB
Gender
Female
Specification:
Model number:LLT-M12-10004F2841
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
