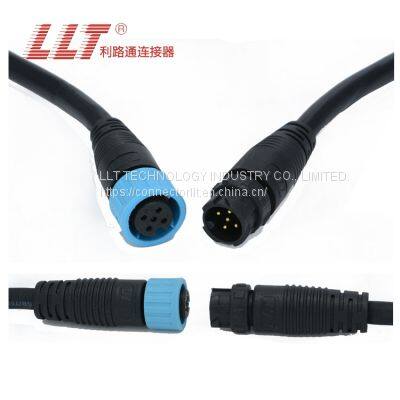

M12 5pin Waterproof Electr Connector Cable 2 3 4 5 6 7 8 Pin Push Lock Solder Led Light Connector
US$ 1.5 - 3
MOQ: 10 Pairs
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-M12-05005F3034
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days
Related Products
-
Hot Sell LLT M12 2 3 4 5 6 Pin Electrical Wire Motorcycle Connector Waterproof With Competition PriceUS$ 1.5 - 3MOQ: 10 Pairs -
Wire Waterproof Connector 6pin Solder Seal Wire Electrical Aviation M12 Connector for Electric BikeUS$ 1.5 - 3MOQ: 10 Pairs
-
Free Sample M12 2 3 4 5 6 7 8 Pin Ip65 Ip67 Ip68 Led Waterproof Connector 5pinUS$ 1.5 - 3MOQ: 10 Pairs
-
2 3 4 5 6 7 8 Pin Waterproof Male Female M12 Electrical Wire Ip67 20awg 22awg 24awg Cable ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
Led Connector 4 Pin Ip68 Circular Electric Automotive Solder Seal 3 4 5 6 7 8 2+4 Pin Wire Connector M12US$ 1.5 - 3MOQ: 10 Pairs
Brand Name
LLT
Place of Origin
China
Model Number
LLT-M12-05005F3034
Type
Other, M12 push lock cable connector
Application
Power
Gender
Female
Specification:
Model number:LLT-M12-05005F3034
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:5A
Voltage rating:60V
Waterproof Rating:IP67
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-8.0mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:5A
Voltage rating:60V
Waterproof Rating:IP67
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-8.0mm
