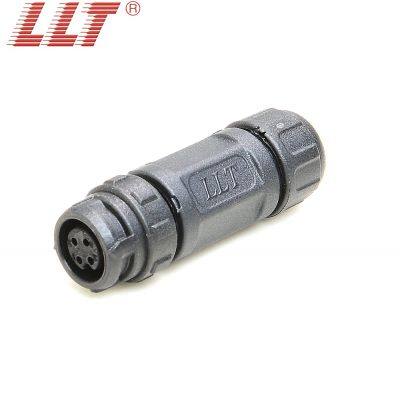

Led Connector 4 Pin Ip68 Circular Electric Automotive Solder Seal 3 4 5 6 7 8 2+4 Pin Wire Connector M12
US$ 1.5 - 3
MOQ: 10 Pairs
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-M12-10004M1031
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
M12 4pin Assembly Circular Electric Wire Cable Ip68 Waterproof Power ConnectorUS$ 1.5 - 3MOQ: 10 Pairs -
Street Light 2pin M12 Connector Llt Waterproof Ip68 Power Led Cable 3 4 5 6 7 8 2+3pin ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
Ip68 Outdoor 3pin Cable M12 Connector 2 4 5 6 7 8 2+2 2+3pin Mini Waterproof Solder Seal Wire ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
LED Lighting Low Voltage Power Cable Screw Waterproof 5pin M12 Panel Mount ConnectorNegotiableMOQ: 10 Pairs
-
M12 Outdoor Led Strip dc ac 2 Pin Plug Led Wire Cable Waterproof Panel Mount ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
Brand Name
LLT
Place of Origin
China
Model Number
LLT-M12-10004M1031
Type
Other, M12 push lock field assembly connector
Application
Power
Gender
Male
Specification:
Model number:LLT-M12-10004M1031
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: push lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: push lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Terminal attach wire:Solder
