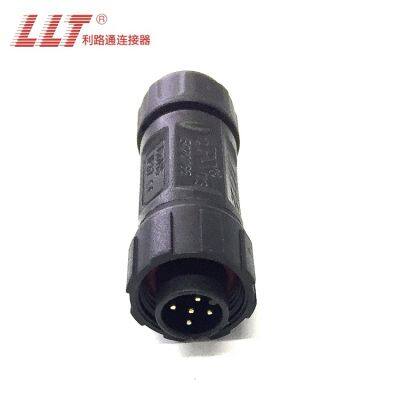

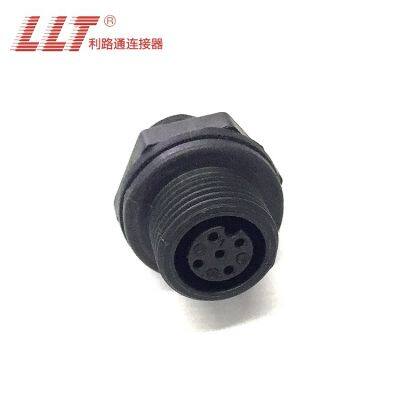

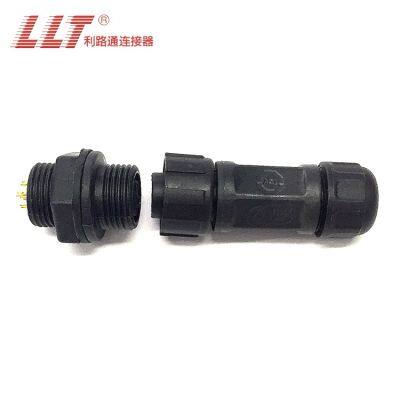

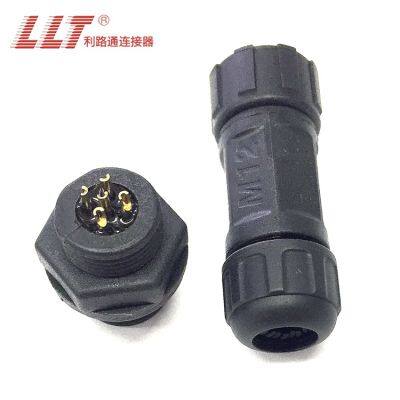

LED Lighting Low Voltage Power Cable Screw Waterproof 5pin M12 Panel Mount Connector
Negotiable
MOQ: 10 Pairs (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LLT
Place of Origin:
China
Model Number:
LLT-M12-05005F2961
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
M12 Outdoor Led Strip dc ac 2 Pin Plug Led Wire Cable Waterproof Panel Mount ConnectorUS$ 1.5 - 3MOQ: 10 Pairs -
Ip68 Waterproof Panel M12 Connector 4pin Plastic Electrical Wire 2 3 4 5 6 7 8 2+2pin Lighting ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
2Pin Ip67 Panel Mount Aviation Plug 2 3 4 5 6 7 8 2+4 Pin Waterproof Cable Car Connector M12US$ 1.5 - 3MOQ: 10 Pairs
-
IP68 4pin LED M12 Connector Lighting Outdoor 2 3 4 5 6 7 8 2+2 Pin Power Waterproof Panel ConnectorUS$ 1.5 - 3MOQ: 10 Pairs
-
IP68 2pin Push Lock Wire Waterproof Panel Power 2 3 4 5 6 7 8pin Socket and Plug M12US$ 1.5 - 3MOQ: 10 Pairs
Brand Name
LLT
Place of Origin
China
Model Number
LLT-M12-05005F2961
Type
Other, M12 panel connector
Application
PCB
Gender
Female
Specification:
Model number:LLT-M12-05005F2961
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:5A
Voltage rating:60V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:5A
Voltage rating:60V
Waterproof Rating:IP68
Contact resistance:Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Terminal attach wire:Solder
