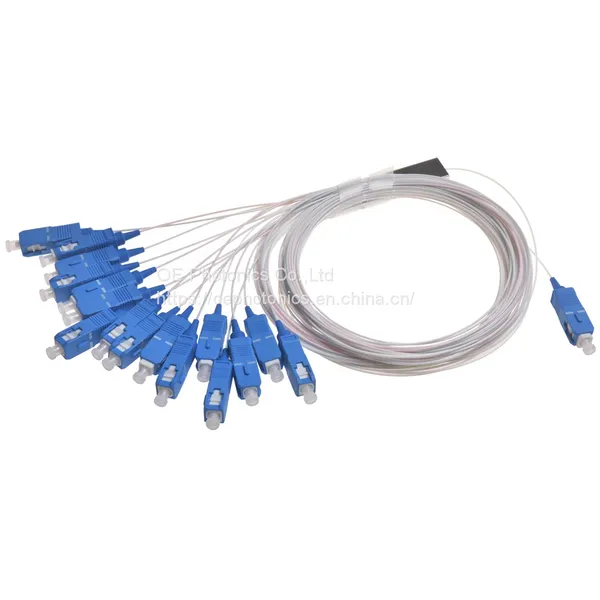

Help CenterMini Steel Tube SC/APC Connector Optical PLC Splitter1X2 1X4 1X8 Fiber Optic PLC Cable Splitter
Related Products
-
Optical Splitter Cassette With Sc Apc-connector 1x8 Fiber Optical Plc SplitterUS$ 2.8 - 16.8MOQ: 1 Piece -
0.9mm, 2.0mm, 3.0mm Cable and Ethernet Cctv Plc Splitter Tube Steel Optical Plc Splitter Ethernet Demarcation DeviceUS$ 2.8 - 16.8MOQ: 1 Piece
-
Fiber Optic Plc Splitter Mini With Sc Apc-connector 1X2 1X4 1x8 1X16 1X32 Steel-tube Fiber Optical Plc SplitterUS$ 2.8 - 16.8MOQ: 1 Piece
-
1x32 Planar Lightwave Circuit Splitter With Input Bare Fiber, Scattered Ribbon Fiber 1.9m Pigtail Without Connector PLC SplitterUS$ 2.8 - 16.8MOQ: 1 Piece
-
Cheap Price G657 A1 0.9mm Loose Tube 1*16 Optical Fibre Splitter SC/UPC sx Core Fiber Optic Mini Plc SplitterUS$ 2.5 - 16.8MOQ: 1 Piece
1x2xN 900μm Mini PLC Splitter
The PLC optical splitter is one of the most important passive components in the optical fiber link. It is an optical fiber tandem device with multiple like ends and multiple output ends. Among them, the three most important components are the optical fiber array. The design and assembly of these three components play a vital role in the stable and normal operation of the PLC optical splitter.
| Wavelength (nm) | 1260-1650 | ||||||||
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
| Insertion Loss(with connector)(dB) | ≤7.4 | ≤10.7 | ≤13.7 | ≤16.9 | ≤21 | ≤7.8 | ≤11.5 | ≤14.5 | ≤17.7 |
| Insertion Loss(W/O connector)(dB) | ≤7.7 | ≤11.2 | ≤14.2 | ≤17.5 | ≤21.5 | ≤8.3 | ≤12 | ≤15 | ≤18.2 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.7 | ≤1.7 | ≤1.7 | ≤2.2 | ≤2.7 |
| PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.4 | ≤0.4 |
| Size(Bare bype) | 4x4x40 | 4x4x50 | 4x7x50 | 4x12x60 | 4x4x40 | 4x4x50 | |||
| (H×W×L)(mm) | |||||||||
| Return Loss(dB) | >50 | ||||||||
| Directivity(dB) | >55 | ||||||||
| Temperature Range(°C) | -40~+75 | ||||||||
| Storage Temperature(°C) | -40~+85 | ||||||||
Shenzhen OE Photonics Co., Ltd is an ODM and OEM high-technology enterprise ,
devoted to design and manufacture premium quality optical passive and active devices and modules.As a pioneer and a leader in optoelectronic device R&D,OE Photonics applied more than 100 patent applications at home and abroad ,established a complete photonic chip development system from chip materials to chip technology, from R&D to production testing.Optical chip is our core technology. R&D team has more than 20 high educated engineers who can design premium quality chip for clients. there are over 500 staff in Shenzhen and 6000 square meter workshop.
