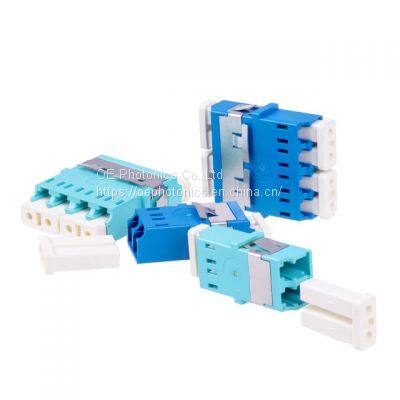

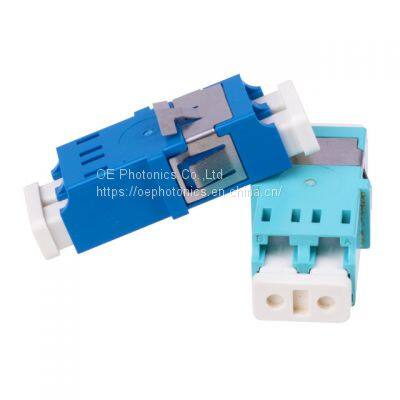

Reliable Quality sc Apc Optical Fiber Adapter Fiber Optic Connector Simplex Duplex Fiber Adapter/coupler
US$ 0.5 - 2.0
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OE Photonics
Place of Origin:
China
Model Number:
Optical adpater
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Cheap Price SC/UPC FTTH Optical Fiber Optic FC SC Couplers Adapter/CouplerUS$ 0.5 - 2.0MOQ: 100 Pieces -
Cheap SC UPC Simplex Single Mode Plastic Fiber Optic Coupler Adapter SC to SCUS$ 0.5 - 2.0MOQ: 100 Pieces
-
Cheap Price G657 A1 0.9mm Loose Tube 1*16 Optical Fibre Splitter SC/UPC sx Core Fiber Optic Mini Plc SplitterUS$ 2.5 - 16.8MOQ: 1 Piece
-
FTTH G657 a1 2.0 3.0 mm sx Core sc Apc Fiber Optic Plc Splitter , ABS Cassette Optical Plc SplitterUS$ 2.8 - 148MOQ: 1 Piece
-
OE Oem/odm 0.9mm 1/1.5 Meter FTTH sc Made Optique Prix Yellow Pigtail Fiber Optic Single Core sm G.652d Core Fiber Optic PigtailUS$ 0.5 - 4.8MOQ: 1 Piece
Brand Name
OE Photonics
Place of Origin
China
Model Number
Optical adpater
Reliable quality sc apc optical fiber adapter fiber optic connector simplex duplex fiber adapter/coupler
Product Description
Dust and Laser Proof
In today's network environment, eyes protection and the stable transmission are absolutely necessary. To meet this growing requirement, We designed an unique fiber optic adapter which has shutter plates inside to proof the dust and the light.
Single Shutter Design Style
LC to LC adapter connects two fiber jumpers together. Securely and perfectly connect multimode or singlemode fiber patch cords. Available in single channel visors.
Ferrule End Face Not Touch Shutter
Its ferrule end face doesn't contact shutter plate, to ensure no stain and no harm. Also, a real one-piece structure and a stable outer spring enable it more stable in panel. As well as a regular spring for more choice.
Low Environmental SensitivityThis LC Internal Shutter Adapter kit comply with IEC 61754-20 and TIA 604-4-B, FOCIS-4 intermateability standards and conform to RoHS environmental requirements and compatible with GR326, REACH, UL 94-V0 standard.
Support Customer Customization
It support Duplex and Quad available ,PC/APC and Various color available,Perfect fit Uniboot connector .
Specification:
Parameter |
Value |
||
SM |
MM |
||
UPC |
APC |
UPC |
|
Operating Wavelength(nm) |
1310/1550 |
850/1300 |
|
Insertion Loss(dB) |
≤0.3dB |
≤0.3dB |
≤0.3dB |
Return Loss(dB) |
≥50dB |
≥60dB |
≥35dB |
Repeatability(dB) |
≤0.1 |
||
Interchangeabilit(dB) |
≤0.1 |
||
Plug times(times) |
≥1000 |
||
Tensile Strength(N) |
≥100 |
||
Durability(dB) |
≤0.2 |
||
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
