1x32 Planar Lightwave Circuit Splitter with input bare fiber, scattered ribbon fiber 1.9m pigtail without connector PLC Splitter
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 7 days
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | OE Photonics | Place of Origin: | China | Model Number: | 1X32 PLC SPLITTER |
Product Description
Specifications 1×N PLC Splitter
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
Operating Wavelength(nm) | 1260~1650 | ||||||
Fiber Type | G657A1 or customer specified | ||||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
Loss Uniformit(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
Return Loss(dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Stability (-40~85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature(℃) | -40~+85 | ||||||
Storage Temperature(℃) | -40~+85 | ||||||
Device Dimension(mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A |
Module Dimension(mm) | 100×80×10 | 120×80×18 | 141×115×18 | ||||
Mini-Module Dimension(mm) | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |

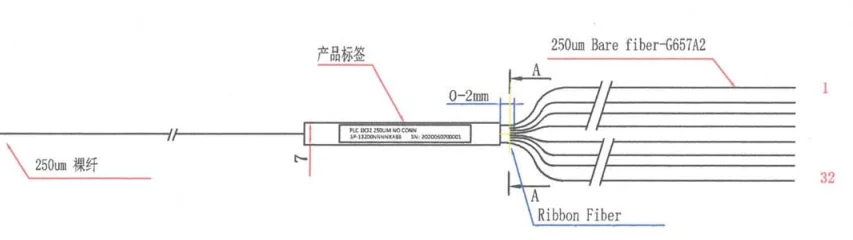

Dimensions Diagram

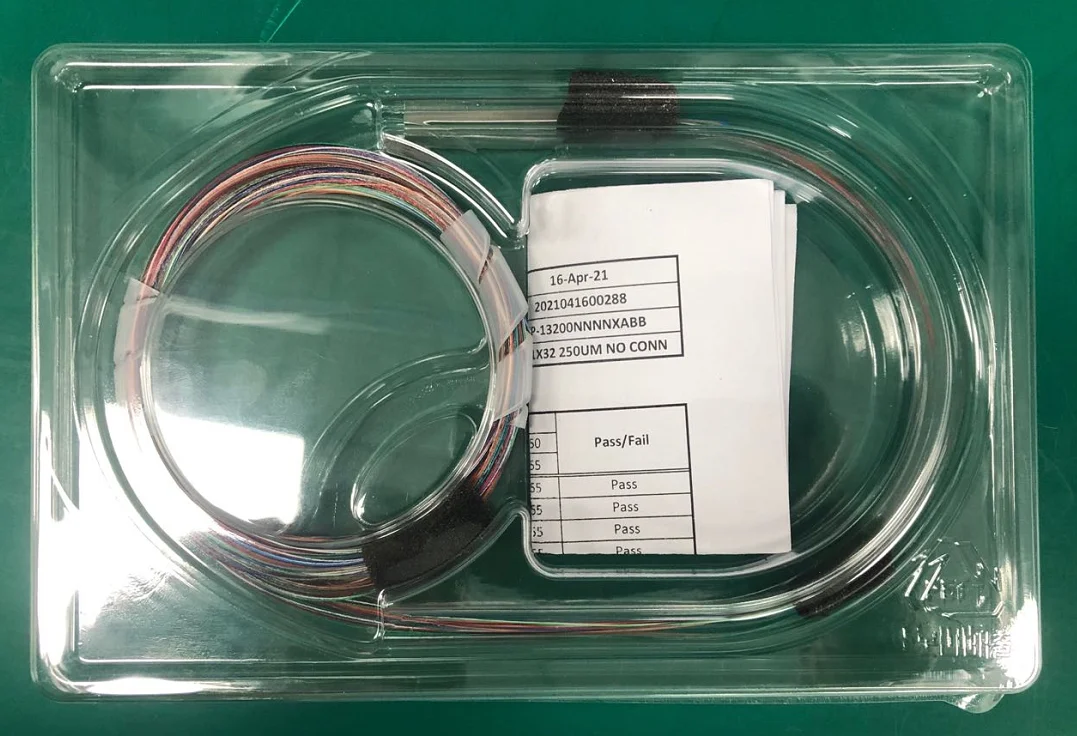

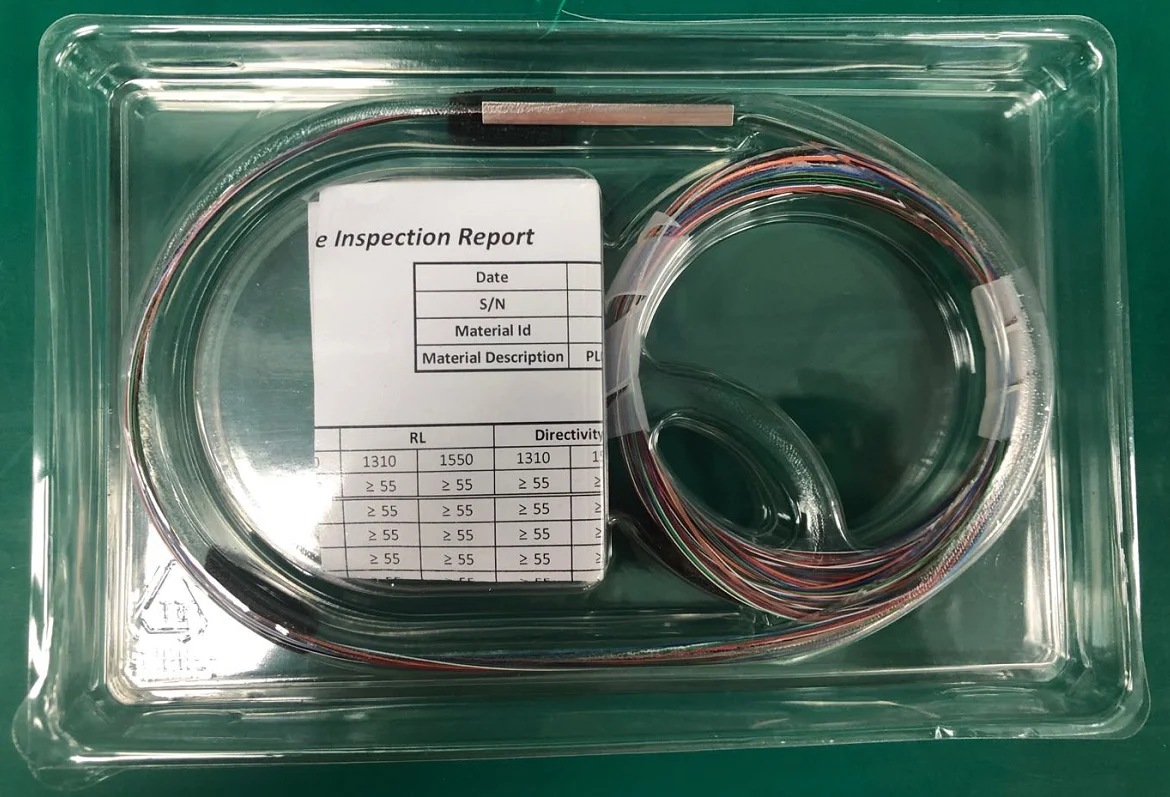

The test report should be provided when the products are delivered. The test data should include the following information:
Insertion loss (room temperature)
PDL (room temperature)
UF(room temperature)
PN, SN bar code
Shenzhen OE Photonics Co., Ltd is an ODM and OEM high-technology enterprise ,
devoted to design and manufacture premium quality optical passive and active devices and modules.As a pioneer and a leader in optoelectronic device R&D,OE Photonics applied more than 100 patent applications at home and abroad ,established a complete photonic chip development system from chip materials to chip technology, from R&D to production testing.Optical chip is our core technology. R&D team has more than 20 high educated engineers who can design premium quality chip for clients. there are over 500 staff in Shenzhen and 2000 square meter workshop.
