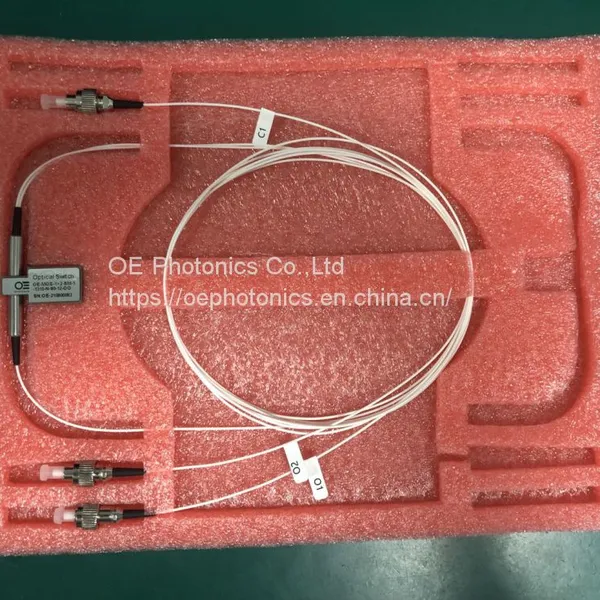

Help Center1x2 2x2 Polarization Maintaining PM1300 PM1550 Fiber Optic Switch Mechanical Optical Switch Bypass Switch
Related Products
-
Mechanical 1X1 Optical Switch for Optical Network ProtectionUS$ 68 - 398MOQ: 1 Piece -
0.9mm, 2.0mm, 3.0mm Cable and Ethernet Cctv Plc Splitter Tube Steel Optical Plc Splitter Ethernet Demarcation DeviceUS$ 2.8 - 16.8MOQ: 1 Piece
-
Cheap Price SC/UPC FTTH Optical Fiber Optic FC SC Couplers Adapter/CouplerUS$ 0.5 - 2.0MOQ: 100 Pieces
-
Cheap SC UPC Simplex Single Mode Plastic Fiber Optic Coupler Adapter SC to SCUS$ 0.5 - 2.0MOQ: 100 Pieces
-
FTTH Fiber Optic Splitter Coupler Single Mode Customized Splitting Ratio Steel Bar Fiber Optical Bare Splitter CouplerUS$ 2.5 - 4.8MOQ: 1 Piece
Polarization maintaining mechanical optical switch has been widely used in the field of PON networks, optical cross and connection system, network monitor, optical fiber ring protection along with excellent features: very low insertion loss(less than 0.5dB),fast switch speed, high stability & compact size.
Applications:
1. High crosstalk 1. Configuratable OADM
2. Low insertion loss 2. Optical Cross and connector system
3. Excellent stability and reliability 3. Polarization maintaining optical system
| Parameter | Unit | Specification | |
| Wavelength range | nm | 1260~1360 or 1510~1610 | |
| Switch type | / | Latching | Non-Latching |
| Insertion loss | dB | ≤0.65 | |
| WDL | dB | ≤0.20 | |
| Extinction ratio | dB | ≥20 | |
| Return loss | dB | ≥50 | |
| Cross talk | dB | ≥55 | |
| Repeatability | dB | ≤±0.03 | |
| Switching speed | ms | ≤10 | |
| Operating voltage (VDC) | V | 5 | |
| Durability | Cycles | >100,00,000 | |
| Operating current | mA | 40 | 28.1 |
| Coil resistance | Ω | 125 | 178 |
| Working axis | / | Both axis working | |
| Handling power | mW | 500 | |
| Operating temperature | ℃ | 0~70 | |
| Storage temperature | ℃ | -40~85 | |
| Fiber type | / | PM Panda Fiber | |
| Dimensions | mm | 27(L) x 12(W) x 8.2(H) | |
IL is 0.3dB (1310~1550nm) higher, RL is 5dB lower and ER is 2dB lower for each connector added. The default connector key is aligned to slow axis.
Electric Configuration |
Electric Drive |
Status Sensor |
||||
Optical Path |
Pin 1 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
P1→P2 |
+5V |
GND |
Open |
Close |
Open |
Close |
P1→P3 |
GND |
+5V |
Close |
Open |
Close |
Open |
Type：Latching
Electric Configuration |
Electric Drive |
Status Sensor |
||||
Optical Path |
Pin 1 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
P1→P2 |
+5V |
GND |
Open |
Close |
Close |
Open |
P1→P3 |
-- |
-- |
Close |
Open |
Open |
Close |
Type：Non-latching
Order Information：
OE-MOS-A-B-C-D-E-F-G-H (MOS:Mechanical Optical Switch )
A |
B |
C |
D |
E |
F |
G |
H |
Port type |
Fiber |
Control Voltage |
Test |
Switch Type |
Tube |
Fiber Length |
Connector |
|
1×1 1×2 2×2B D1×2 D2×2B |
SM:SM,9/125 MM:MM(50/125&62.5/125) X:Others |
3:3V 5:5V |
850:850nm 1310:1310nm 1550:1550nm 1315:1310&1550nm |
L：Latching N:Non-Latchig
|
25:250um 90:900um X:Others |
05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm X:Others |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X: Others |
Note:1. Above specifications just show the typical performance of Module,
2. Please contact our sales to discuss your specific requirements.
