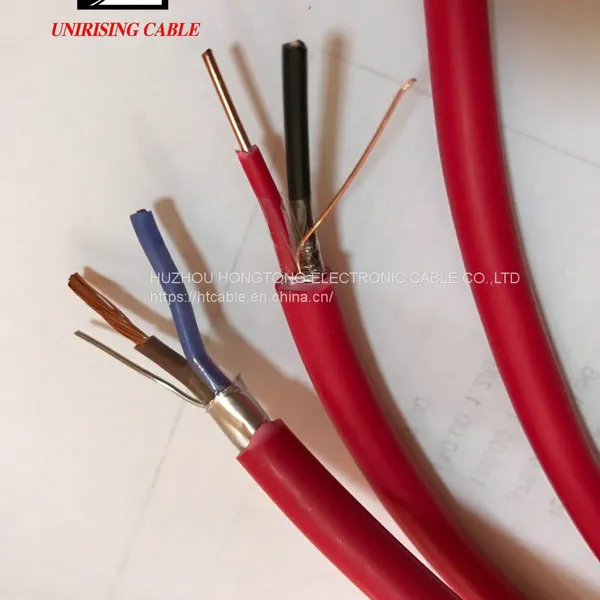

Help CenterLSZH Shield 2 Core1.0-1.5mm Fire Alarm Cable
Related Products
-
3core 4 Core 5 Core Silicone Medical High Temperature CableNegotiableMOQ: 30 Kilometers -
Mfi Certified for Apple IPhone Micro B to C to A USB Cable 1m 2m.......3MNegotiableMOQ: 1000 Pieces
-
FEP CABLENegotiableMOQ: 30 Kilometers
-
Manufacturer Car Adaptor Audio Connector Auto 8 Pin14pin 16 Pin 20pin 22pin Radio Wire HarnessNegotiableMOQ: 1000 Pieces
-
10AWG 12AWG 14AWG Flexible Flat Parallel Twin SPT WiresNegotiableMOQ: 30 Kilometers
Product Description
n Fire Resistant Cables are manufactured with latest technology to ensure consistent quality and reliability.
n Conductor:Solid bare copper(IEC/EN228,BS 6360,VDE 0295,HD 383)
n Insulation:Fire resistant silicon rubber(HD 22.1,BS 7655 EI2),Colors:BS7671/HD308-S2/VDE0293-308(for more than 5 cores white core/black numbered)
n Separator:Polyester tape
n Drain Wire:0.8mm solid tinned copper
n Shield:Aluminium laminated polyester tape
n Sheath:HFFR,Red(RAL3000) or white;EN 50290-2,VDE 0207 HM2,BS 7655 LTS1/LTS3
Applications:
n Fire detection and fire alarm systems for buildings
n Voice alarm systems
n Emergency voice communication.
n Emergency and escape lighting
n Other essential service control circuits for standard fire resistance.
| Part No. | Conductor | Dia(±5%)mm | Copper W (kg/km) | Cable W (kg/km) |
| UCA39 | 2x1.00mm2 | 5.8 | 23 | 51 |
| UCA40 | 3x1.00mm2 | 6 | 32 | 65 |
| UCA41 | 4x1.00mm2 | 6.6 | 41 | 81 |
| UCA42 | 2x1.50mm2 | 6.65 | 33 | 70 |
| UCA43 | 3x1.50mm2 | 6.75 | 46 | 90 |
| UCA44 | 4x1.50mm2 | 7.6 | 59 | 110 |
| UCA45 | 2x2.50mm2 | 7.8 | 50 | 100 |
| UCA46 | 3x2.50mm2 | 8.25 | 72 | 135 |
| UCA47 | 4x2.50mm2 | 9.1 | 95 | 165 |
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables ,silicone rubber , teflon cable,wire harnessand other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
