THWN-THHN Cable THHN Wire Has a Conductor of Soft Drawn Bare Copper.

THWN-THHN Cable THHN Wire Has a Conductor of Soft Drawn Bare Copper. photo-1

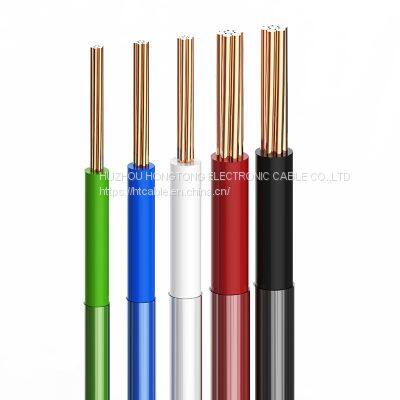

THWN-THHN Cable THHN Wire Has a Conductor of Soft Drawn Bare Copper. photo-2

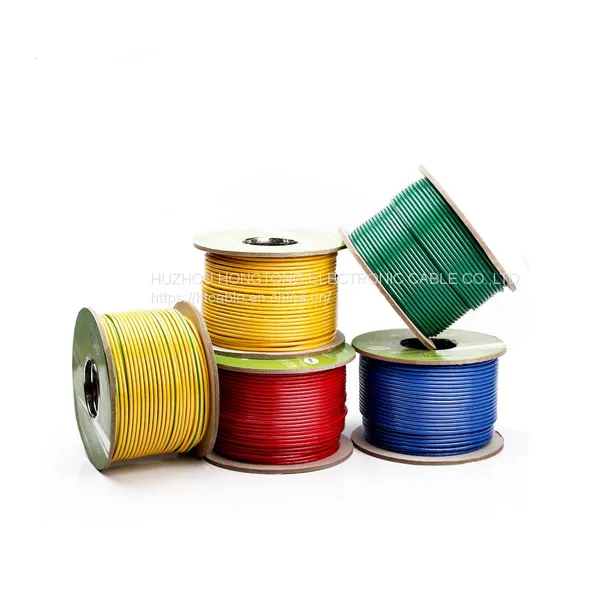

THWN-THHN Cable THHN Wire Has a Conductor of Soft Drawn Bare Copper. photo-3
Negotiable MOQ: 30 Kilometers (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
UNIRISING CABLE
Place of Origin:
China
Type:
Low Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
20 days
Brand Name UNIRISING CABLE
Place of Origin China
Type Low Voltage
Insulation Material PVC
Jacket PVC
Conductor Material Copper

THHN Wire has a conductor of soft drawn bare copper.
· THHN Wire has primary insulation of PVC with NYLON jacket.
· USA listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
· Gasoline and oil resistant II. Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
· CSA approval available upon request for the building wire.

SIZE

Conductor structure

±0.01mm

cable diameter±0.1mm

jacket material

insulation material

approx.cross sectionarea

(mm2

PVC insulation thickness

±0.05mm

Nylon thickness±0.05mm

approx.weight(kg/km)

8AWG

19/0.75

6.2

NYLON

PVC

8.39

1.0

0.2

104.35

9AWG

19/0.67

5.8

NYLON

PVC

6.7

1.0

      0.2

86.24

10AWG

19/0.59

5.4

NYLON

PVC

5.19

1.0

      0.2

69.95

11AWG

19/0.53

4.7

NYLON

PVC

4.19

0.8

      0.2

54.75

12AWG

19/0.47

4.4

NYLON

PVC

3.3

0.8

      0.2

45.00

13AWG

7/0.69

4.1

NYLON

PVC

2.62

0.8

      0.2

37.5

14AWG

7/0.61

3.9

NYLON

PVC

2.05

      0.8

      0.2

31.06

15AWG

7/0.55

3.5

NYLON

PVC

1.66

0.7

 0.2

25.15

16AWG

7/0.49

3.3

NYLON

PVC

1.32

0.7

       0.2

21.22

18AWG

7/0.38

3.0

NYLON

PVC

0.79

0.7

       0.2

14.98

THHN Building Wire is general purpose wiring in accordance with the NEC.

The building wire is rated at 600 volts for installation in conduit or other recognized raceway cable, cables, THHN cable, THWN
cable, FVN cable, digital cable,Electric wire, Electrical wires, Electric cable, Electrical cable, Electrical cables, PVC
Insulated and Sheathed Cable, PVC insulated cable, insulated cable, instrumentation cable, power cable, stranded cable, double
insulated, flat cable, CCC approved, AL conductor, installation wire, flexible wire, flex cable, single core, multi core cable,
fire resistant, XLPE, XLPE cable, LSZH, LSOH,
LSZH cable.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables ,silicone rubber , teflon cable,wire harnessand other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term


Product Tags: THWN CABLE , THHN CABLE , THW CABLE
