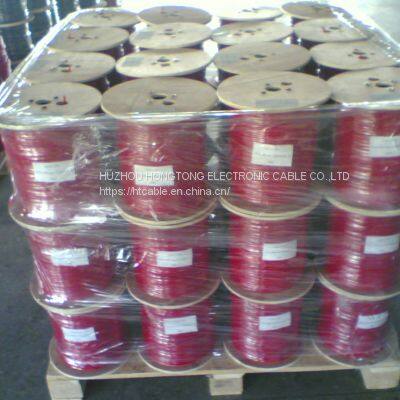

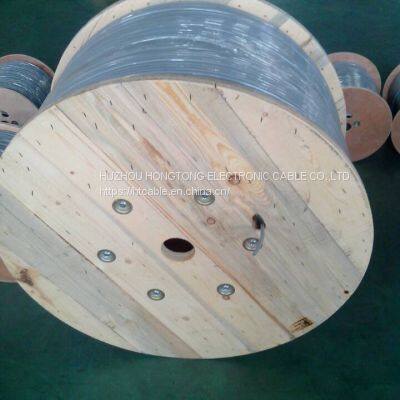

Help CenterSYTI 1Pair --112Pair PTT298 PTT299 CW1308 CW1309 TELEPHONE CABLE
Related Products
-
CW1308 CW1309 Communication Telephone CableNegotiableMOQ: 30 Kilometers -
Field Telephone CableNegotiableMOQ: 30 Kilometers
-
New Produtcs Pure Copper LSZH Insulation With LSZH JacketNegotiableMOQ: 10 Kilometers
-
TUV 600-1000V 4MM2-16MM2 Solar CableNegotiableMOQ: 10 Kilometers
-
CE&ROHS Network Cable SSTP Cat7 Cat6 Copper Cable Cat7 Twister Pair Communication CableNegotiableMOQ: 30 Kilometers
| Telephone Cables | |||||||
| Product Description: SYT | Electraical Characteristics | ||||||
| Tinned or barem, stranded or solid copper conductor,24-20 AWG | Impedance(1MHz):100±20Ω/km | ||||||
| Solid or foam PE insulation | Voltage test:1500Vcc/min | ||||||
| PET foil | Minimum insulation resistance at 20℃1500MΩ.km | ||||||
| AWG25 TC | Mutual capacity of the pairs:＜57.5nF/km | ||||||
| Blue surface mylar alumimum wrapping | |||||||
| Rip cord | |||||||
| Lead free PVC or non-migration PVC jacket | |||||||
| Appliction | |||||||
| For internal wiring of electronic and equipment. | |||||||
| Product Type | Pair | AWG | Insulation Nom.Dia Maximum-mm | Insulation Nom.Thick Min -mm | Shield Coverage | Jacket Nom.Dia-mm | Jacket Nom.Thick Min |
| SYT1 | 1 | 20 | 1.4 | 0.16 | 100% | 4.3 | 0.5 |
| SYT1 | 2 | 20 | 1.4 | 0.16 | 100% | 6 | 0.78 |
| SYT1 | 3 | 20 | 1.4 | 0.16 | 100% | 6.8 | 0.78 |
| SYT1 | 2 | 24 | 1 | 0.16 | 100% | 5 | 0.5 |
| SYT1 | 3 | 24 | 1 | 0.16 | 100% | 5.1 | 0.5 |
| SYT1 | 1 | 24 | 1 | 0.16 | 100% | 3.6 | 0.4 |
| SYT1 | 2 | 24 | 1 | 0.16 | 100% | 4.6 | 0.4 |
| SYT1 | 3 | 24 | 1 | 0.16 | 100% | 5.1 | 0.4 |
| SYT1 | 5 | 24 | 1 | 0.16 | 100% | 6.3 | 0.6 |
| SYT1 | 10 | 24 | 1 | 0.16 | 100% | 7.7 | 0.6 |
| SYT1 | 21 | 24 | 1 | 0.16 | 100% | 10.3 | 0.7 |
| SYT1 | 30 | 24 | 1 | 0.16 | 100% | 11.8 | 0.7 |
| SYT1 | 56 | 24 | 1 | 0.16 | 100% | 15 | 0.8 |
| SYT1 | 112 | 24 | 1 | 0.16 | 100% | 20.6 | 0.8 |
| SYT1 | 224 | 24 | 1 | 0.16 | 100% | 33 | 0.9 |
| SYT1 | 1 | 20 | 1.4 | 0.16 | 100% | 4.3 | 0.4 |
| SYT1 | 2 | 20 | 1.4 | 0.16 | 100% | 6 | 0.6 |
| SYT1 | 3 | 20 | 1.4 | 0.16 | 100% | 6.8 | 0.6 |
| SYT1 | 5 | 20 | 1.4 | 0.16 | 100% | 7.9 | 0.6 |
| SYT1 | 10 | 20 | 1.4 | 0.16 | 100% | 10.3 | 0.7 |
| SYT1 | 21 | 20 | 1.4 | 0.16 | 100% | 13.6 | 0.8 |
| SYT1 | 30 | 20 | 1.4 | 0.16 | 100% | 16.1 | 0.8 |
| SYT1 | 56 | 20 | 1.4 | 0.16 | 100% | 20.7 | 0.8 |
| SYT1 | 112 | 20 | 1.4 | 0.16 | 100% | 28 | 0.8 |
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables ,silicone rubber , teflon cable,wire harnessand other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
