Hose Type Cable Drum

Hose Type Cable Drum

Hose drum is designed for coiling hoses transferring water, cooil and gas etc., it can be installed on the ground or on the machine equipment.

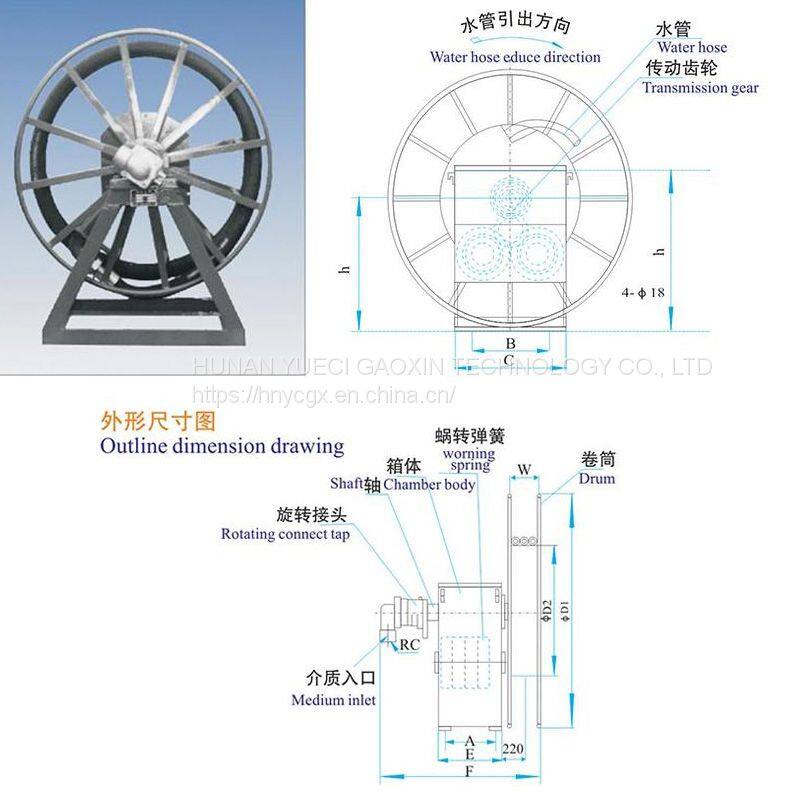

Hose drum makes up mainly chamber body, hollow main shaft pipe, driving power part of rotating putting tap.

The rotating putting tap is a connection to activity hose and static pipe. Can be divided into two types by structure as spring type and torque motor type.

Spring type is mainly used for short distance gs transferring hose drum; torque motor type mainly for long distance hose drum, rotating contact tap has low, middle and high voltage. The largest pressure allows to more than 200kg/cm²
