Electromagnetic Stirrer M-EMS/S-EMS for Slab

Electromagnetic Stirrer M-EMS/S-EMS for Slab

M-EMS for slab

Two stirrer shall be installed along with direct between meniscus surface and side hole of outlet for water. Feed in triphase power, it will produce traveling wave magnetic field. It is mainly used for medium and thick slab with low casting speed.

S-EMS for slab

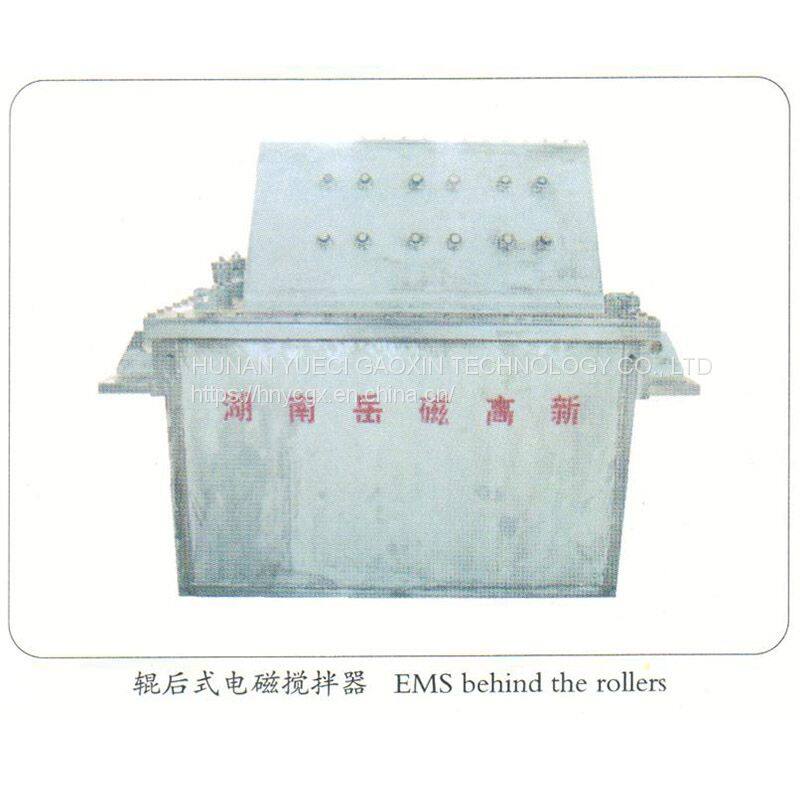

EMS behind the rollers

EMS is installed behind the rollers, in one side or each side. It needs little change of caster and installation is simple. It can be moved promptly when molten steel breakouts happen. Stirring Freq: 0.5~5Hz

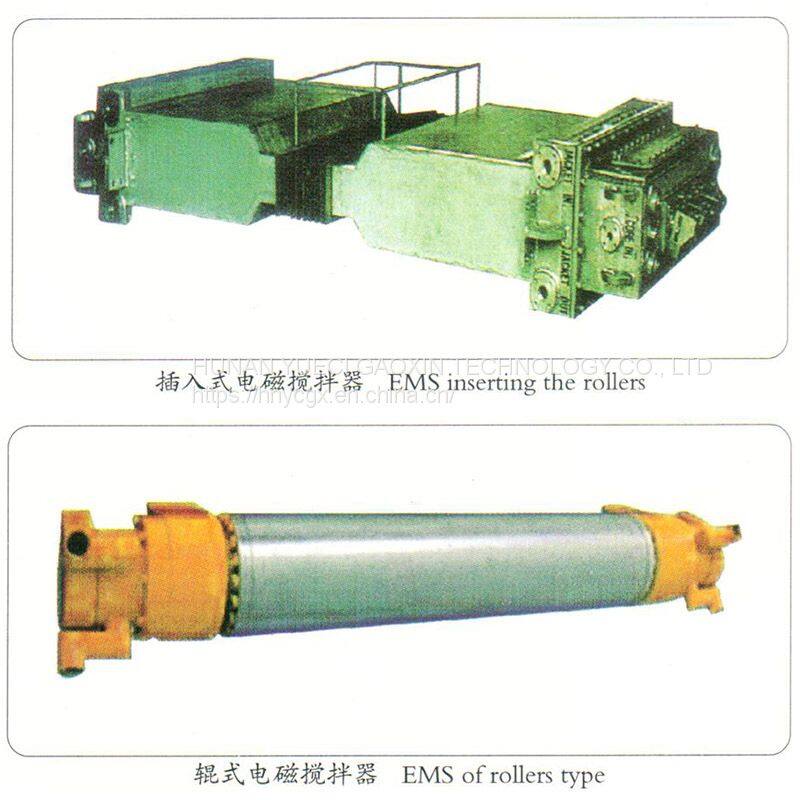

EMS inserting the rollers

Two stirrer are installed in each side of the curve. The head of EMS is small to insert between rollers and be near to slab. Stirring effect is good for its high efficiency and low energy consumption. Stirring freq: 6~20Hz

EMS of roller type

EMS shall be made with the same size of the roller, and placed of rollers, installed in each side of the curve. These two couple stirring rollers are of CrNi heat-proof stainless steel. It is simple to install EMS without limit of caster size. Stirring freq: 2~5Hz
