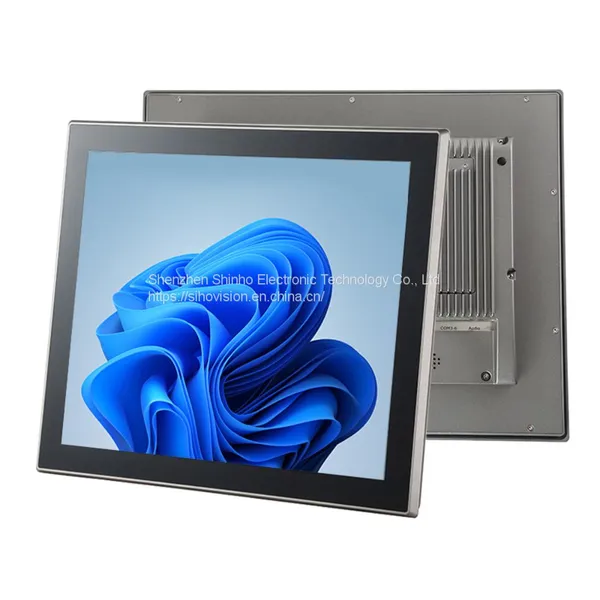

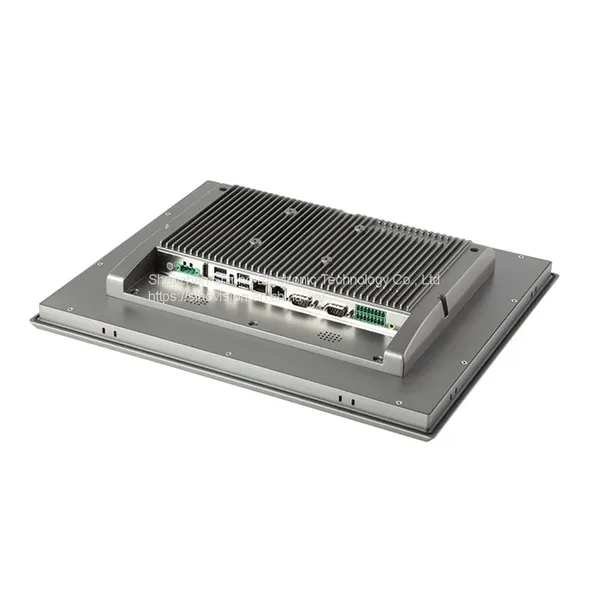

2*mini Pcie Slot Cordless Motherboard Industrial PC

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T PayPal
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sihovision	Place of Origin	China
Model Number	SC17	Type	Panel PC
Products Status	Stock

Product Description

Features

1. Cordless motherboard design, high-end industrial panel PC

2. Fully enclosed design, the whole PC is dustproof.

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.

4. Industrial LCD panel, wide viewing angle, high nits, true color.

5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

6. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.

7. High performance motherboard, 7x24 continuous operation.

Specification

Model:SC17
PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU optional	Intel® Core, I5-4200U, dual core, 1.6GHz, fanless
CPU optional	Intel® Core, I7-4500U, dual core, 1.8GHz, fanless
CPU optional	Intel® Core, I5-6360U, dual core, 2.0GHz, fanless
CPU optional	Intel® Core, I5-7267U, dual core, 3.1GHz, fanless
CPU optional	Intel® Core, I7-7500U, dual core, 2.7GHz, fanless
CPU optional	Intel® Core, I5-8250U, quad core, 1.6GHz, fanless
CPU optional	Intel® Core, I7-8550U, quad core, 1.8GHz, fanless
Memory	4G DDR3
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 128GB, 256GB, 512G SSD
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	2×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI

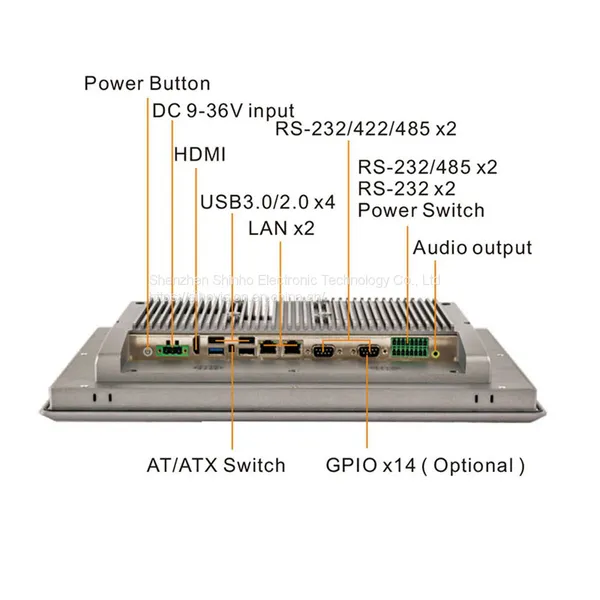

I/O Interface	3xUSB 2.0, 1xUSB 3.0, 1x built in USB SoftDog,
	2x DB-9 COM1& COM2, RS232/422/485
	2x3 wire COM3 & COM4 RS232/485 Phoenix terminal, 2x3 wire COM5 & COM6 RS232
	1xPhoenix terminal remote switch interface
	1x AT/ATX switch
	1x HDMI/Audio Line-out/ Power Button
Expansion slot	1x 14 bit GPIO optional
	2x 8Ω 1W Amplifier out optional
	MINI-PCIE x 1, on board SIM card slot, support 3G/4G module
	MINI-PCIE x 1, support WIFI/ Bluetooth
Watchdog timer	1~255 second Programmable Setting
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size	17"
Resolution	1280*1024
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	400
Response time	5ms
Contrast ratio	1000:1
View angle	85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points)
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Luminousness	90%
Surface Hardness	7H
Working life	>50 million times
Touch options	(5 wire resistive touch optional)
Power Supply
External Power Supply	AC 100-240V
Working voltage	9V-36V wide voltage
Power consumption	≤34W
Enclosure
Material	Aluminum Alloy
Color	Grey
VESA mounting	75x75mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	Operating: -20 to 60°C, storage: -30 to 70°C
Relative humidity	10%~90% @ 30° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight	5kg
Gross weight	6.6kg
Product Dimension	40.066x32.976x5.81cm
Packing size	53x47x18cm
Accessories	Power adapter, power cord, embedded screws, 2.5-inch hard drive holder
Other
Mounting (options)	Embedded mounting screws
	Wall mounting brackets (optional)
	Desk stand holder (optional)
Warranty	2 year warranty
Certificate	CE, FCC, RoHS

Certifications

Company Introduction

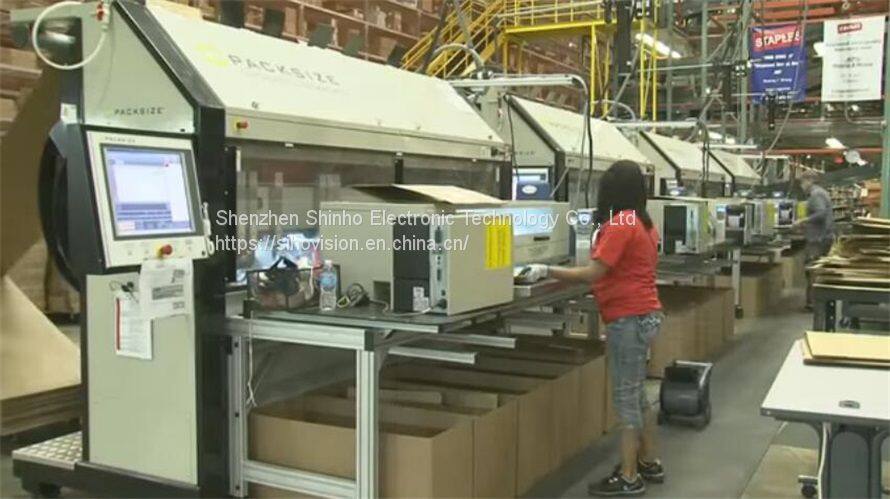

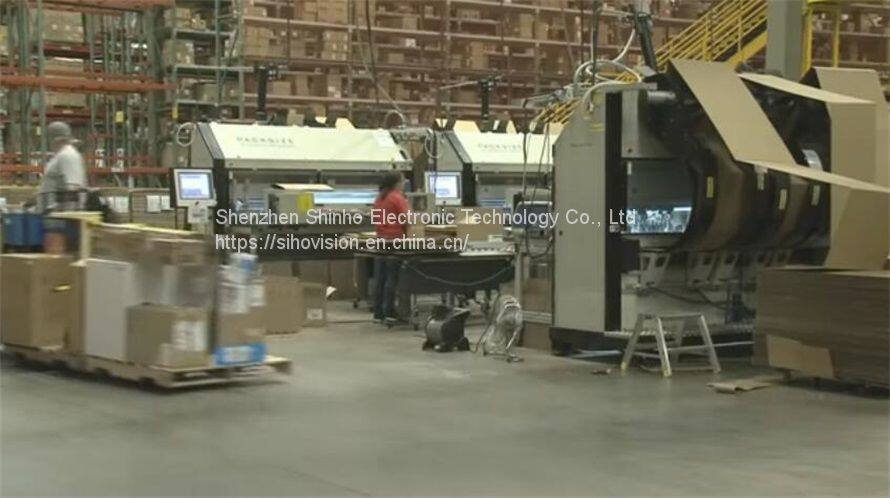

Using Effects
