Home > Products > diesel steam boiler > 5T/H 5ton 5000kg Automatic Gas or Oil Fired Steam Boiler Heating System
5T/H 5ton 5000kg Automatic Gas or Oil Fired Steam Boiler Heating System
- 100 Set / Sets per Month
- Qingdao or Shanghai
- T/T L/C Credit Card
- 20 days
- 5th 5,000kg/H 5ton Diesel Powered Steam Boiler,Gas Steam Boiler For Oil Press
- Gas Oil Fired Thermal Oil Boiler Thermal Fluid Heater For Bitumen Heating Processing System
- 300000 kcal Horizontal Organic Heat Carrier Boiler Thermal Oil Furnace For Heat Exchanger
- Gas Fired Thermal Oil Boiler Hot Oil Systems For Hot Press Machine
- Heavy Oil Fired Skid Mounted Thermal Oil Boiler For Wood Processing Plant
- High Temperature Thermal Fluid Heater Heat Conducting Oil Boiler For Heating Bitumen Tank
Product Details
Brand Name: | Jinzhen Boiler | Place of Origin: | China | Model Number: | WNS5-1.25 5ton/hr, 5000kg/h |
Certification: | CE | Type: | Natural Circulation | After-sales Service Provided: | Engineers available to service machinery overseas |
Weight: | 5300×3200×3300 | Dimension(L*W*H): | 16 ton | Condition: | New |
Style: | Horizontal | Fuel: | Oil-fired | Usage: | Industrial |
Output: | Steam | Structure: | Fire Tube | Pressure: | Low Pressure |
Product Description
5T/H 5ton 5000kg Automatic Gas or Oil Fired Steam Boiler Heating System
WNS series gas-fired (oil-fired) steam boiler
Product thermal capacity: | 1-20 t/h |
Working pressure: | 0.7-2 Mpa |
Available fuel: | Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc. |
Available industries: | Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc. |
WNS type automatic horizontal steam boiler is a horizontal quick - mounted internal - burning three - return - trip fire tube boiler.The bifurcated flue gas is used to wash the second and third return flue gas pipes successively, and then the flue gas chamber is discharged into the atmosphere through the chimney.The boiler is fitted with movable front and rear smoke box covers to facilitate boiler maintenance.
Steam Boiler Specification
Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight | ||
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) | |
WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 | ||
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 | ||
WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 | ||
WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 | ||
WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
Boiler Features
Special Structure and High Efficiency: All system is well mounted on the base, its system is portable. The users no need to consider the pipeline installation, wire connection. After receiving the goods, just supply water, electricity, fuel. It is equipped with renowned brand burners(BALTUR, RIELLO, HOFAMAT, ECOFLAM), also finned tube type economizer can ensure boiler's thermal efficiency up to 95%.
High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting plate rolling/
welding,100% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent pene-trating check, hydraulic (water) pressure test, boiler thermal efficiency test, etc, to make sure all finished products is qualified.
Automatic Safe Operation: WNS series package steam boiler is equipped automatic burner ignition, automatic water-level control, auto-matic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system's working states on screen.
Easy Maintenance: WNS series boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry-fire broken, reduce the range of steel cooling contraction and hotting expansion. Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently.

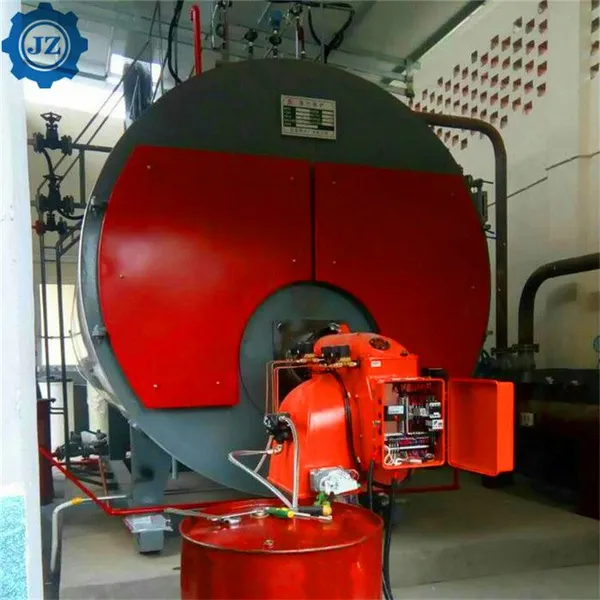

WNS type automatic steam boiler is equipped with industrial burners with good technical performance. It adopts advanced technologies such as automatic proportional regulation of combustion, automatic regulation of water supply, program start and stop, automatic operation, etc. It also has automatic protection functions such as high and low water level alarm, extremely low water level, ultra-high steam pressure and flameout.The boiler has the characteristics of compact structure, safe and reliable, simple operation, quick installation, less pollution, low noise and high efficiency.
