Help CenterGas Oil Fired Thermal Oil Boiler Thermal Fluid Heater For Bitumen Heating Processing System
Related Products
-
300000 Kcal Horizontal Organic Heat Carrier Boiler Thermal Oil Furnace For Heat ExchangerUS$ 8000 - 15000MOQ: 1 Set -
High Temperature Thermal Fluid Heater Heat Conducting Oil Boiler For Heating Bitumen TankUS$ 8000 - 15000MOQ: 1 Set
-
Industrial Thermal Fluid Heater/Thermal Oil Boiler for Wood Processing PlantUS$ 8000 - 90000MOQ: 1 Set
-
Oil Gas Fired Thermal Fluid Heaters Hot Oil Boilers for Drying, Hot PressingUS$ 8000 - 90000MOQ: 1 Set
-
Industrial Gas Fired Thermal Fluid Heater/Thermal Oil Boiler for Synthetic Fiber IndustryUS$ 8000 - 90000MOQ: 1 Set
Thermic Fluid Heater, thermal oil boiler, hot oil boiler
thermal capacity: 350kw-1400KW
Working pressure:0.8-1.0 MPA
Outlet temperature:320 C
Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

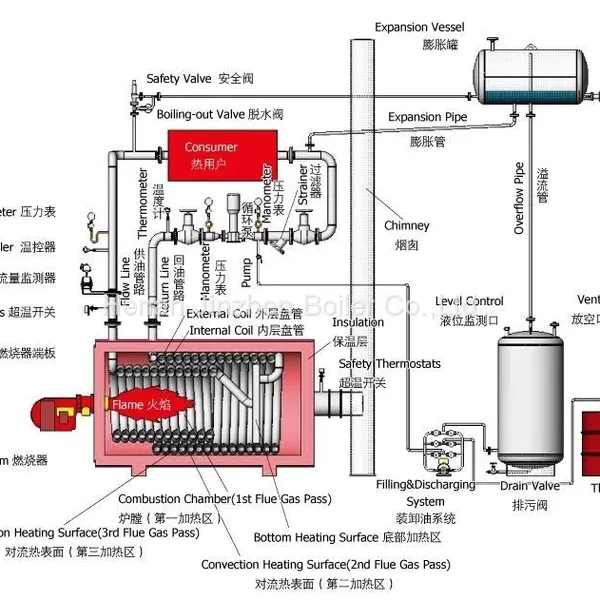

Thermal oil heater takes diesel, gas, town gas or oil as fuel. Three pass and wet back structure enhance it’s thermal efficiency and lower flue gas temperature.
The Thicker insulated material layer makes radiating at minimum limit.
All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.
Main characters of thermal oil heater:
Model No. |
Thermal power(kcal/h) |
Heating efficiency (%) |
Max. working temp.(℃) |
Medium circulation(M3/H) |
Transport size (mm) |
Weight (Kg) |
YY(Q)W-120Y(Q) |
10*104 |
≥92.26 |
340 |
12.5 |
Φ1060*2045 |
1215 |
YY(Q)W-240Y(Q) |
20*104 |
≥92.26 |
340 |
18 |
Φ1020*1980 |
1355 |
YY(Q)W-350Y(Q) |
30*104 |
≥92.26 |
340 |
30 |
Φ1212*2310 |
1590 |
YY(Q)W-500Y(Q) |
40*104 |
≥92.26 |
340 |
30 |
Φ1212*2730 |
1680 |
YY(Q)W-700Y(Q) |
60*104 |
≥92.26 |
340 |
60 |
Φ1400*3410 |
2715 |
YY(Q)W-930Y(Q) |
80*104 |
≥92.26 |
340 |
80 |
Φ1616*3400 |
3142 |
YY(Q)W-1200Y(Q) |
100*104 |
≥92.26 |
340 |
100 |
Φ1616*4000 |
3660 |
YY(Q)W-1400Y(Q) |
120*104 |
≥92.26 |
340 |
100 |
Φ1820*4905 |
5420 |
YY(Q)W-2000Y(Q) |
160*104 |
≥92.26 |
340 |
100 |
Φ1840*4950 |
7850 |
YY(Q)W-2400Y(Q) |
200*104 |
≥92.26 |
340 |
160 |
Φ2060*4700 |
8850 |
YY(Q)W-3000Y(Q) |
250*104 |
≥92.26 |
340 |
180 |
Φ2060*5450 |
9210 |
Boiler Application
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the hot oil boiler could be widely used in a variety of industrial production.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9) Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry
