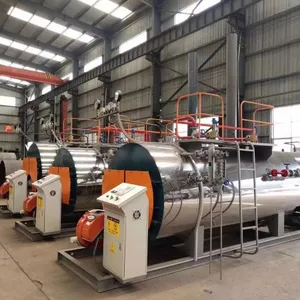

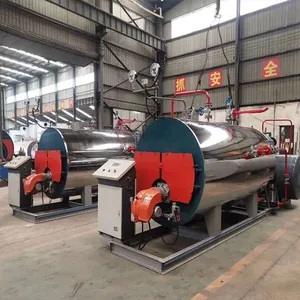

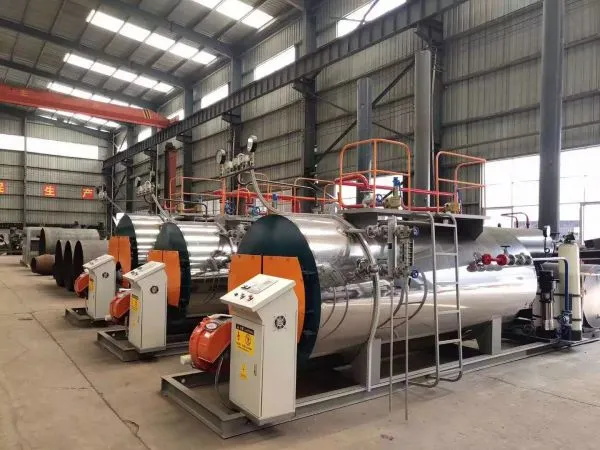

Fire Tube Type 0.5-20 ton/h Natural Gas Diesel Oil Steam Boiler for Sterilizing
Rated steam capacity:0.5ton-20ton/h;
Fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;
Rated steam pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar);
Application scope: the pharmaceutical, paper making, tobacco, printing and dyeing, garment and other industries. Civil: catering, laundry room, (hospital) disinfection, sauna, etc.
WNS type automatic horizontal steam boiler is a horizontal quick - mounted internal - burning three - return - trip fire tube boiler.The bifurcated flue gas is used to wash the second and third return flue gas pipes successively, and then the flue gas chamber is discharged into the atmosphere through the chimney.The boiler is fitted with movable front and rear smoke box covers to facilitate boiler maintenance.
WNS type horizontal automatic steam boiler is equipped with industrial burners with good technical performance. It adopts advanced technologies such as automatic proportional regulation of combustion, automatic regulation of water supply, program start and stop, automatic operation, etc. It also has automatic protection functions such as high and low water level alarm, extremely low water level, ultra-high steam pressure and flameout.The boiler has the characteristics of compact structure, safe and reliable, simple operation, quick installation, less pollution, low noise and high efficiency.
Main features
1. Boiler proprietary technology
Full wet backburn chamber, backburn chamber and back tube plate butt joint, boiler full butt welding, stress, more reliable quality.
2, large diameter corrugated furnace
The boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption expansion and large radiation heating surface.
3. Sufficient heat
The heating area of the boiler is designed and configured according to ≥25m2/ steam ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and efficiency
4. High quality steam
Large pot shell diameter, large water capacity, strong adaptability to load changes, stable output;The steam space volume is large, the net distance between the soda interface and the steam outlet is high enough, and the steam humidity is low.
5. Safe precipitation time is sufficient
The boiler combustor is arranged in a low position, the water level is determined in accordance with the regulations, and the water level fluctuation time is strictly in accordance with the international general norms and standards, with sufficient safe precipitation space, to ensure the operation safety of the boiler.
Technical parameter
WNS0.5-1.0-Y(Q) |
WNS0.7-1.0-Y(Q) |
WNS1-1.25-Y(Q) |
WNS1.5-1.25-Y(Q) |
|
Steam Capacity |
500 KG/H |
700 KG/H |
1000 KG/H |
1500 KG/H |
Boiler Horsepower |
30 HP |
50 HP |
70 HP |
100 HP |
Working Pressure |
0-10 BAR |
0-10 BAR |
0-13 BAR |
0-13 BAR |
Steam Temperature |
≤184 ℃ |
≤184 ℃ |
≤194 ℃ |
≤194 ℃ |
Fuel Type |
Gas, Oil |
Gas, Oil |
Gas, Oil |
Gas, Oil |
