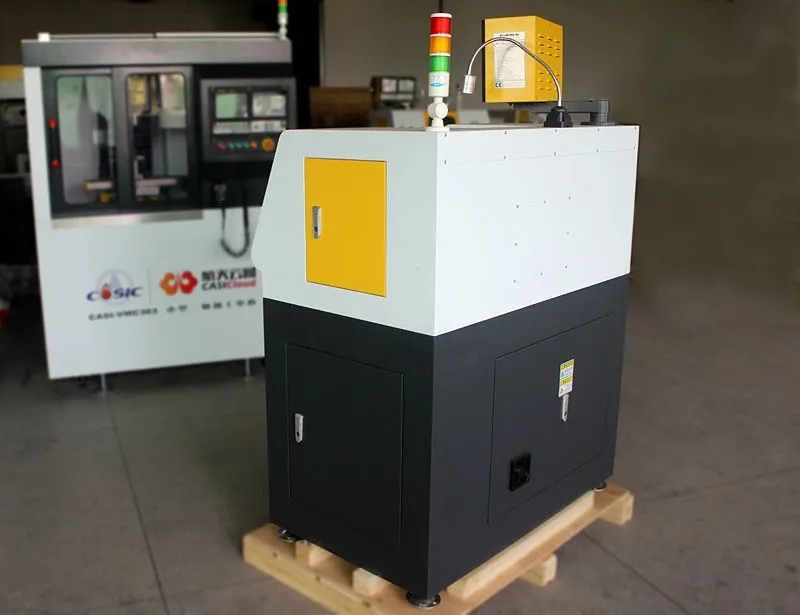

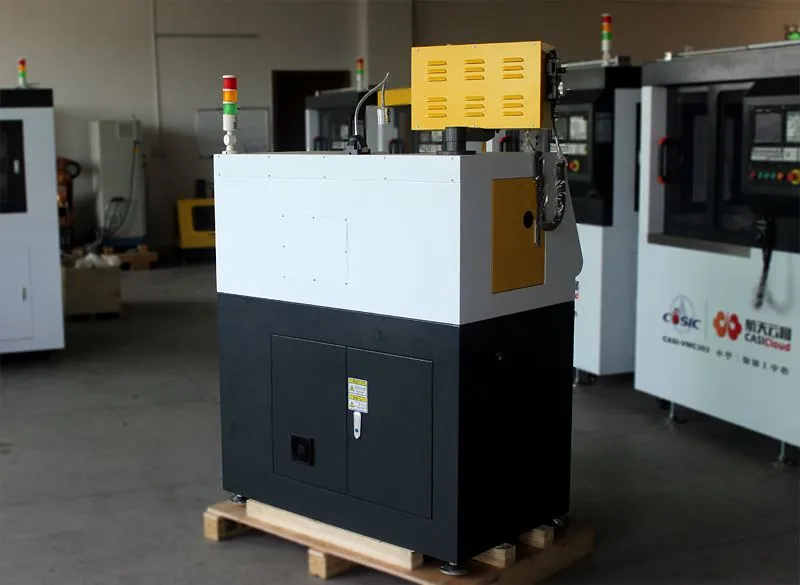

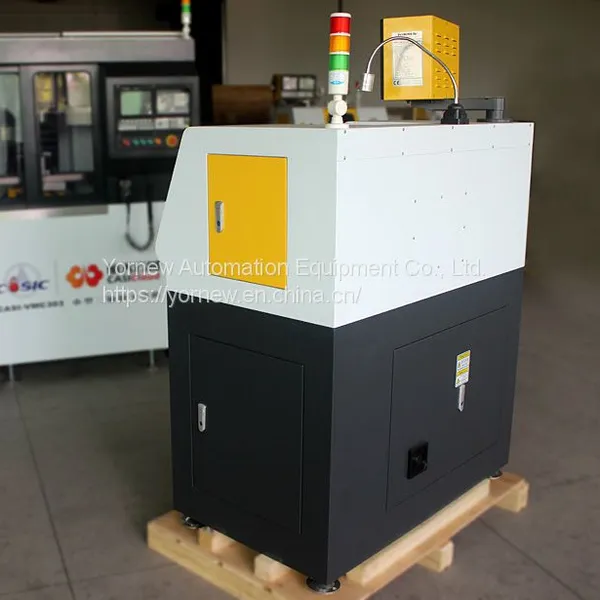

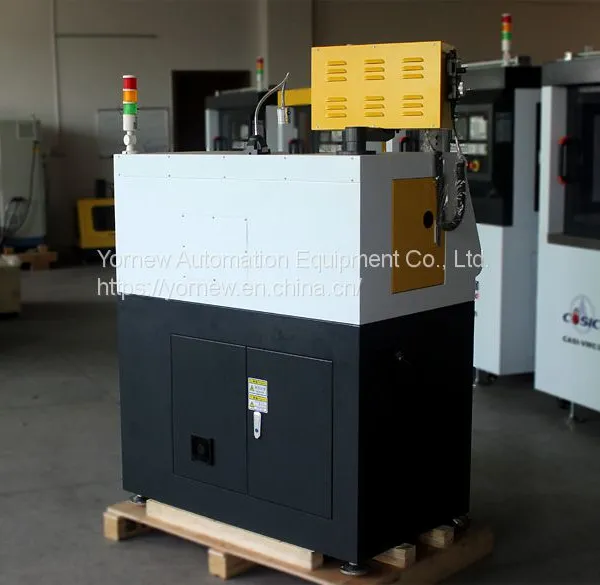

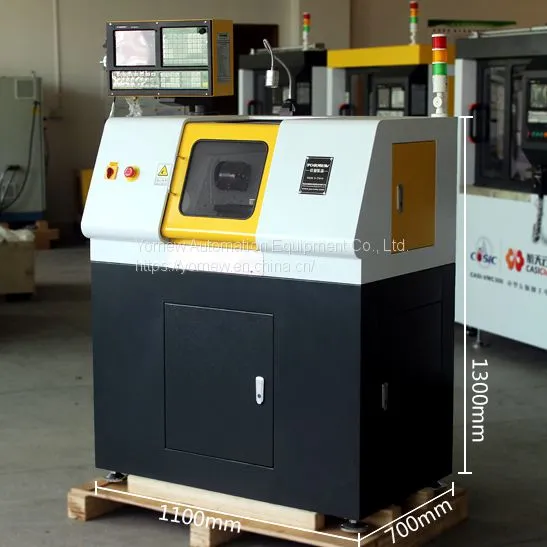

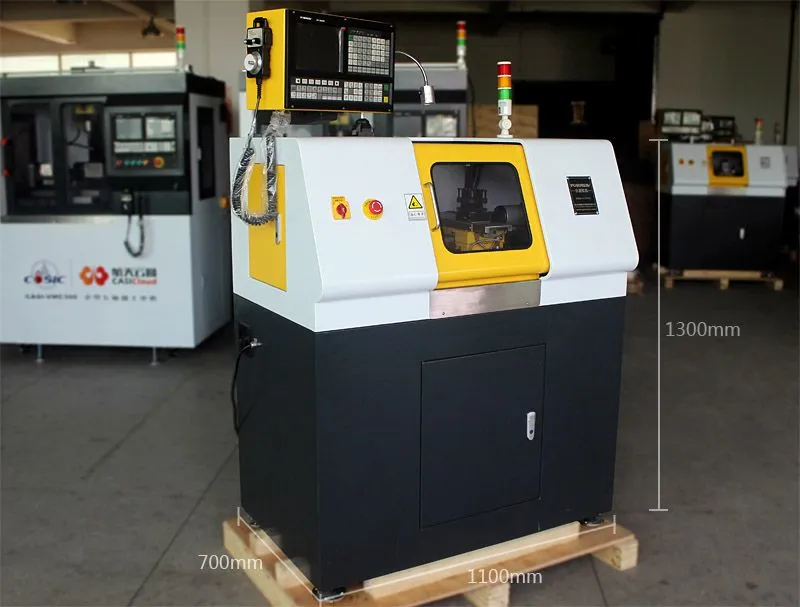

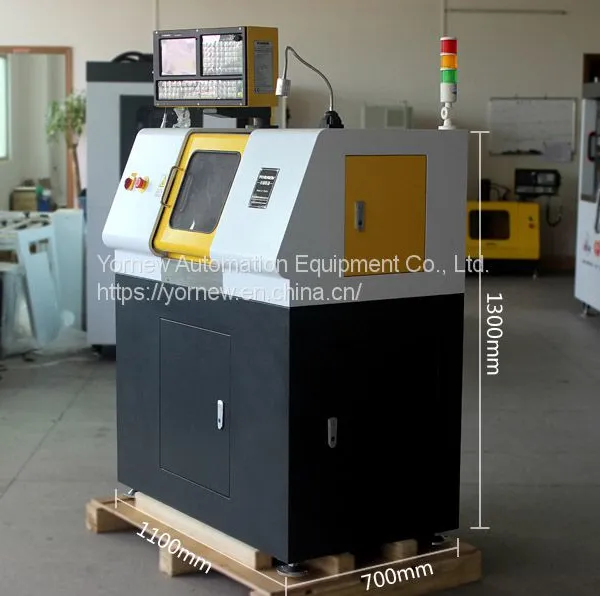

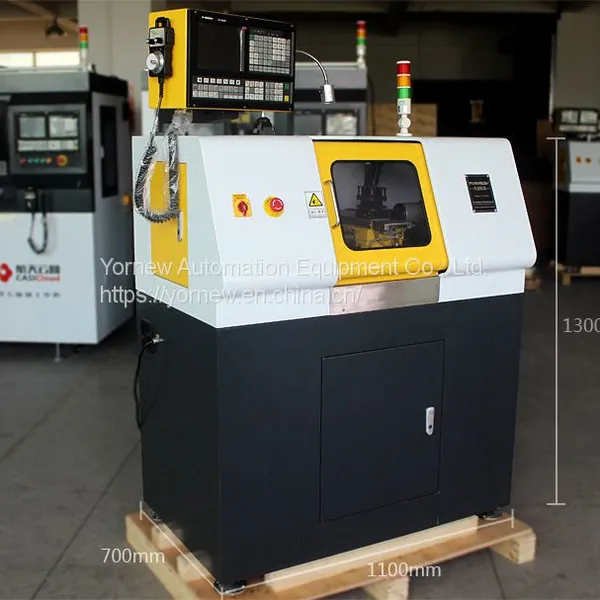

Product No: CK210BProduct Name: Small CNC Lathe
Features
(1).XZ axis servo motor, Automatic 4 positions tool post.

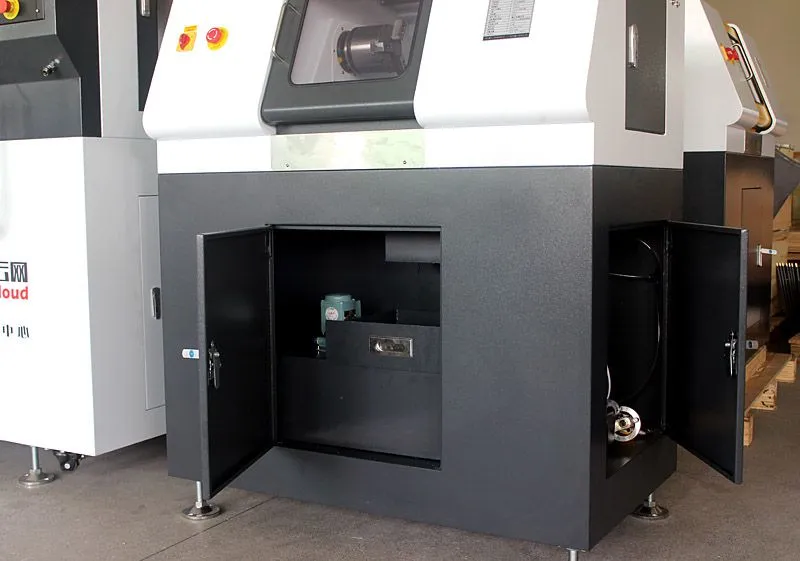

(2).With sink and nozzles.
(3).YORNEW 980Tc Turning CNC System,Optional siemens 808D or Mach3
(4). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function.
(5).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(6). The standard spec includes MPG hand wheel.
(7). USB and RS232 port, DNC function of USB.
(8). Network interface, supporting for remote monitoring and DNC file transfer processing.
(9). Control speed of G code.
(10). Selection of high -quality casting materials,more compact.
(11). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(12). 220VAC or 110VAC single-phase AC power supply.
(13). Safety electrical components of high quality.
(14). Auto power off when door open.
(15). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
|---|---|
| Turning diameter over bed(max) | 210mm |
| Chuck diameter | 100mm |
| Spindle speed | 100-1750r/min(control speed of G code) |
| Spindle through-hole | 26mm |
| Spindle mount | MT3 |
| Spindle motor power | 1100W |
| X travel | 80mm |
| Z travel | 290mm |
| X/Z motor | 400W Servo Motor |
| The max moving speed | 4000mm/min |
| The max feeding speed | 2000mm/min |
| Control system | YORNEW 980Tc Turning CNC System,Optional siemens 808D or Mach3 |
| Instruction | DXF+G code template function, converting DXF automatically to G code for processing |
| MPG handwheel | 4 axis |
| Tool position | 4 |
| Tool dimension | 10*10mm |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy: | 0.02mm |
| Repeatability accuracy | 0.03mm |
| Power | 230VAC / 120VAC |
| Weight(NW/GW) | 280/320KG |

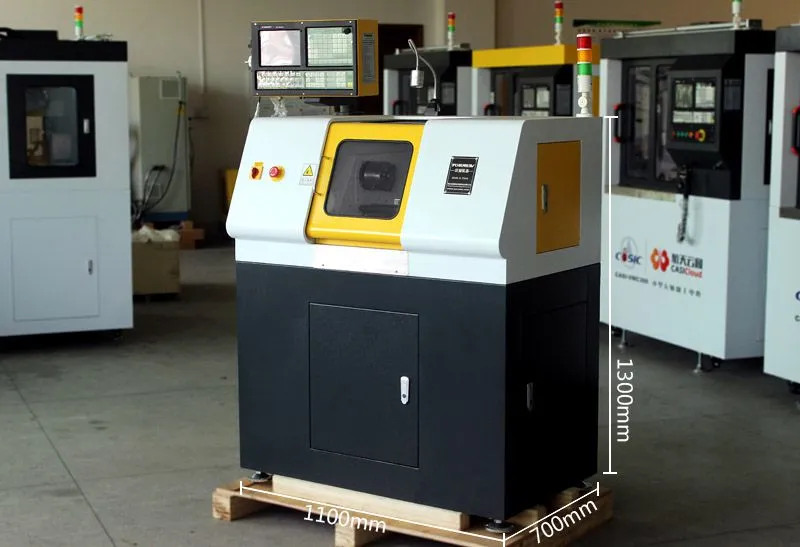

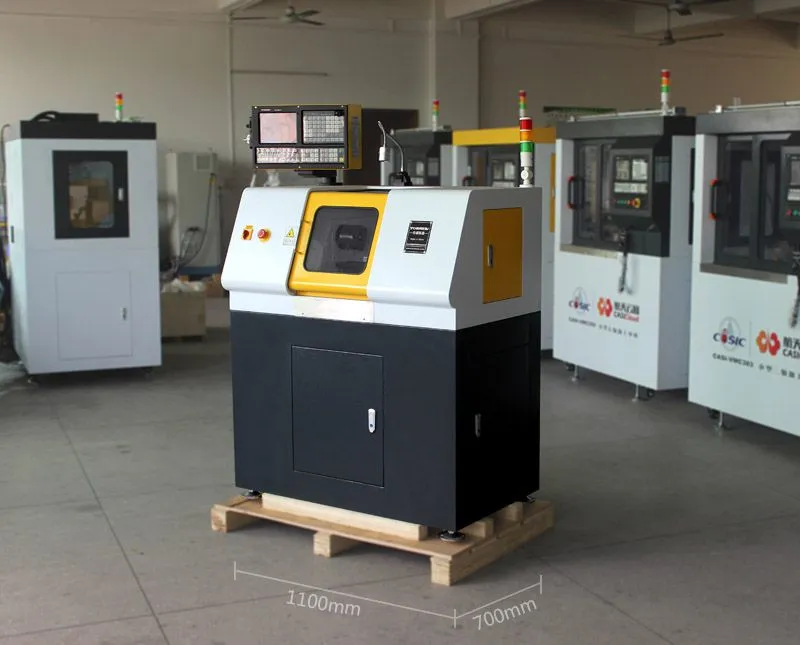

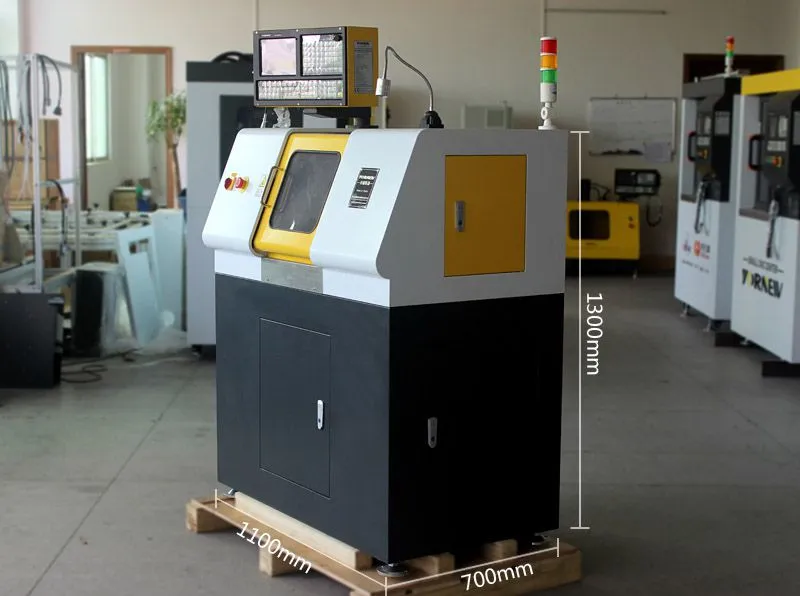

| Overall dimension | 1000*580*1180mm |
| Packing size | 1100*800*1770mm |
