Product Description
The performance characteristics of 3v winding supercapacitor：
High energy Capacitor, high power series
Kamcap's supercapacitor 3V series is available in temperatures ranging from -40 to +65 °C and is suitable for long-term stability in high pressure environments.
SE/HE series kamcap super capacitor products use a temperature range of -25 ° C ~ 70 ° C low leakage, suitable for long-term continuous discharge of small current.
SP/HP/LR seires kamcap super capacitor products use a temperature range of -40 ° C ~ 70 ° C low internal resistance, providing instantaneous high current output.
Typical application of 3v winding super capacitor：
Kamcap 3.0V ultracapacitor is widely applied into different industries. For example, it can be used in RAM, detonator, car recorder, water meter, electricity meter, gas meter, controller, vacuum switch, digital camera, motor drive and clock circuit. The 3.0v super capacitor also performs well in industrial backup power supply, toy, program-controlled switch, distribution Transformer supervisory Terminal Unit（TTU）etc.
If you are interested in our 3.0V ultracapacitor, please contact us through info@kamcap.com. We would like to provide you with more details.
3v winding ultracapacitor series specification sheet：
Series name | HP Series High power type ultracap |
Type name | HP-3R0 |
Rated voltage VR | 3.0V |
Surge voltage | 3.15V |
Capacity range | 1F-500F |
Operating temperature range | -40 ~ +65℃ |
Product life | Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times. |
High temperature endurance life：Maximum temperature retention VR，1000 hours.Capacity attenuation≤30%, ESR change≤4 times. |

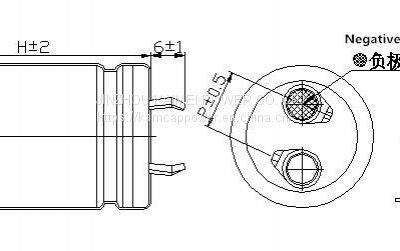

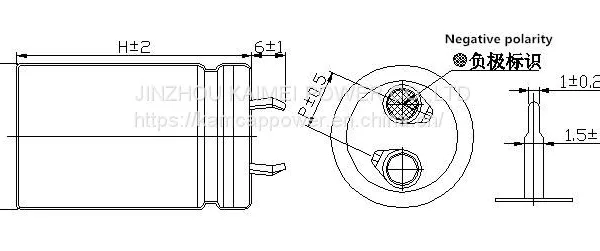

Ultracap product drawings：
HP Series: 0.1-120F
3.0V Series products
Model | Capacity F | ESR mΩ | Product size（mm） | |||
DC | AC 1kHz |
Diameter
| Height | Pin distance | ||
HP-3R0-J504VYJ17 | 0.5 | 1100 | 550 | 6.3 | 12.5 | 2.5 |
HP-3R0-J704VYJ06 | 0.7 | 1100 | 550 | 8 | 13 | 3.5 |
HP-3R0-J105VYJ06 | 1 | 600 | 300 | 8 | 13 | 3.5 |
HP-3R0-J105TYJ16 | 1 | 1100 | 550 | 6.3 | 10 | 2.5 |
HP-3R0-J155VYJ66 | 1.5 | 600 | 300 | 10 | 13 | 5 |
HP-3R0-J155UYJ18 | 1.5 | 700 | 350 | 6.3 | 14 | 2.5 |
HP-3R0-J205VYJ07 | 2 | 360 | 180 | 8 | 20 | 3.5 |
HP-3R0-J205VYJ42 | 2 | 480 | 240 | 6.3 | 22 | 2.5 |
HP-3R0-J335VYJ07 | 3.3 | 280 | 140 | 8 | 20 | 3.5 |
HP-3R0-J335VYJ13 | 3.3 | 280 | 140 | 10 | 20 | 5 |
HP-3R0-J405VYJ13 | 4 | 200 | 100 | 10 | 20 | 5 |
HP-3R0-J405VYJ07 | 4 | 200 | 100 | 8 | 20 | 3.5 |
HP-3R0-J475VYJ13 | 4.7 | 180 | 90 | 10 | 20 | 5 |
HP-3R0-J475VYJ09 | 4.7 | 180 | 90 | 12.5 | 21 | 5 |
HP-3R0-J505UYJ04 | 5 | 180 | 90 | 8 | 24 | 3.5 |
HP-3R0-J505VYJ13 | 5 | 180 | 90 | 10 | 20 | 5 |
HP-3R0-J505TYJ07 | 5 | 180 | 90 | 8 | 20 | 3.5 |
HP-3R0-J605VYJ13 | 6 | 150 | 75 | 10 | 20 | 5 |
HP-3R0-J705UYJ13 | 7 | 140 | 70 | 10 | 20 | 5 |
HP-3R0-J805VYJ09 | 8 | 120 | 60 | 12.5 | 21 | 5 |
HP-3R0-J106UYJ11 | 10 | 120 | 60 | 10 | 25 | 5 |
HP-3R0-J106VYJ12 | 10 | 110 | 55 | 10 | 30 | 5 |
HP-3R0-J106VYJ09 | 10 | 110 | 55 | 12.5 | 21 | 5 |
HP-3R0-J156VYJ10 | 15 | 76 | 38 | 12.5 | 25 | 5 |
HP-3R0-J156VYJ19 | 15 | 76 | 38 | 12.5 | 34 | 5 |
HP-3R0-J166VYJ20 | 16 | 76 | 38 | 16 | 20 | 7.5 |
HP-3R0-J186VYJ74 | 18 | 60 | 30 | 16 | 24 | 7.5 |
HP-3R0-J206VYJ19 | 20 | 60 | 30 | 12.5 | 34 | 5 |
HP-3R0-J256VYJ21 | 25 | 60 | 30 | 16 | 26 | 7.5 |
HP-3R0-J256UYJ19 | 25 | 60 | 30 | 12.5 | 34 | 5 |
HP-3R0-J306VYJ21 | 30 | 40 | 20 | 16 | 26 | 7.5 |
HP-3R0-J406VYJ25 | 40 | 40 | 20 | 18 | 41 | 7.5 |
HP-3R0-J506VYJ25 | 50 | 40 | 20 | 18 | 41 | 7.5 |
HP-3R0-J606VYJ25 | 60 | 40 | 20 | 18 | 41 | 7.5 |
HP-3R0-J107VYJ27 | 100 | 30 | 15 | 22 | 42 | 10 |
HP-3R0-J107UYJ28 | 100 | 16 | 8 | 22 | 46 | 10 |
HP-3R0-J367UYJ33 | 360 | 6.4 | 3.2 | 35 | 61 | 10 |
HP-3R0-J407UYJ33 | 400 | 6.4 | 3.2 | 35 | 61 | 10 |
HP-3R0-J507UYJ44 | 500 | 6 | 3 | 35 | 80 | 22 |
Typical Application
Series | Application range | Instance |
SP, LR, HP, HT | Backup power | RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
SE, HP, HE | Energy storage | Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
SE Coin type, HE | Energy storage | Flashlights, water meters, gas meters, taillights, small appliances, etc. |
HP、LR | High power support | Wind power, locomotive start, ignition, electric vehicles, etc. |
MK | Backup power High current operation | Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
