Kamcap is one of the leading supercapacitor manufacturers in China. We supply high-quality supercapacitor ultracapacitor, including coin type supercapacitor, winding type supercapacitor, combined type supercap capacitor, module supercaps, high temperature supercap and hybrid capacitor.

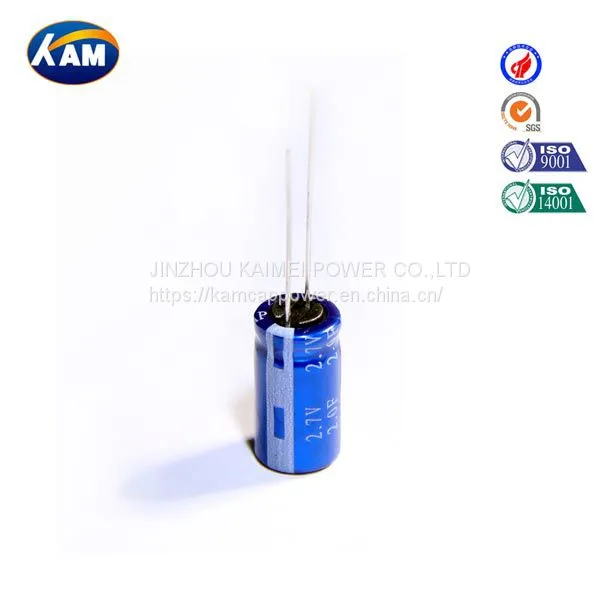

2.7V Winding Type Series
Why Choose Kamcap Supercaps
Supercapacitor is a new type of energy storage device with fast charge and discharge and energy storage characteristics. All of kamcap super capacitor products have passed the ROHS, REACH,ISO9001, ISO14001:2004,TS16949 Certification.
As a leader in the industry, kamcap supercapacitor is constantly working on the development of supercapacitors, with the strongest R&D team and the strongest production capacity to provide customers with protection.
Performance of 2.7V Winding Type Series Supercapacitor
High energy, high power series
The capacity of 2.7V winding type series supercapacitor is from 0.1F to 3000F. Thus, the applied fields of 2.7 volt supercapacitor applications are very extensive.
SE/HE series Kamcap super capacitor products use a temperature range of -25 ℃ ~ 70 ℃ low leakage, suitable for long-term continuous discharge of small current.
SP/HP/LR seires kamcap super capacitor products use a temperature range of -40 ℃ ~ 70 ℃ low internal resistance, providing instantaneous high current output.
Typical Application of 2.7V Winding Type Series Supercapacitor
Our 2.7 v 3000f ultracapacitor is widely applied into different industries. For example, our super capacitor 2.7 v 3000f can be used in RAM, detonator, car recorder, smart meter and electric meter. This 2.7 volt Capacitor cap can also be used for controller, vacuum switch, digital camera, motor drive, clock circuit, backup power, toy, program-controlled switch, etc.
If you are interested in our products and want to buy super capacitor, please contact our professional team through info@kamcap.com.
Specification and Drawing of 2.7V Winding Ultracapacitor
HE & HP Series Winding Ultracapacitor
Series name |
HE Series |
HP Series |
Type name |
HE-2R7 |
HP-2R7 |
Rated voltage VR |
2.7V |
2.7V |
Surge voltage |
2.85V |
2.85V |
Capacity range |
0.35F~25F |
0.1F~3000F |
Operating temperature range |
-25 ~ +70℃ |
-40 ~ +70℃ |
Product life |
Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times. |
|
High temperature endurance life：Maximum temperature retention VR，1000 hours.Capacity attenuation≤30%, ESR change≤4 times. | ||
Key Features of 2.7V Series Winding Supercapacitor
HP 2.7V Series products:
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
HP-2R7-J104VYJ03 |
0.1 |
1400 |
700 |
5 |
12 |
2 |
HP-2R7-J104VYJ01 |
0.1 |
1400 |
700 |
5 |
10 |
2 |
HP-2R7-J154VYJ01 |
0.15 |
500 |
250 |
5 |
10 |
2 |
HP-2R7-J204VYJ01 |
0.2 |
1200 |
600 |
5 |
10 |
2 |
HP-2R7-J204VYJ03 |
0.2 |
400 |
200 |
5 |
12 |
2 |
HP-2R7-J254VYJ03 |
0.25 |
4000 |
200 |
5 |
12 |
2 |
HP-2R7-J354VYJ03 |
0.35 |
500 |
250 |
5 |
12 |
2 |
HP-2R7-J504VYJ16 |
0.5 |
700 |
350 |
6.3 |
10 |
2.5 |
HP-2R7-J504VYJ17 |
0.5 |
700 |
350 |
6.3 |
12.5 |
2.5 |
HP-2R7-J704VYJ06 |
0.7 |
600 |
300 |
8 |
13 |
3.5 |
HP-2R7-J704VYJ15 |
0.7 |
2600 |
1300 |
4 |
18 |
1.6 |
HP-2R7-J105VYJ06 |
1 |
600 |
300 |
8 |
13 |
3.5 |
HP-2R7-J105TYJ16 |
1 |
1100 |
550 |
6.3 |
10 |
2.5 |
HP-2R7-J105VYJ17 |
1 |
1300 |
650 |
6.3 |
12.5 |
2.5 |
HP-2R7-J155VYJ06 |
1.5 |
700 |
350 |
8 |
13 |
3.5 |
HP-2R7-J155VYJ66 |
1.5 |
600 |
300 |
10 |
13 |
5 |
HP-2R7-J155UYJ18 |
1.5 |
700 |
350 |
6.3 |
14 |
2.5 |
HP-2R7-J155VYJ08 |
1.5 |
500 |
250 |
8 |
16 |
3.5 |
HP-2R7-J205VYJ42 |
2 |
480 |
240 |
6.3 |
22 |
2.5 |
HP-2R7-J205VYJ70 |
2 |
500 |
250 |
6.3 |
17 |
2.5 |
HP-2R7-J205VYJ08 |
2 |
400 |
200 |
8 |
16 |
3.5 |
HP-2R7-J205VYJ07 |
2 |
260 |
130 |
8 |
20 |
3.5 |
HP-2R7-J205VYJ13 |
2 |
240 |
120 |
10 |
20 |
5 |
HP-2R7-J225VYJ13 |
2.2 |
240 |
120 |
10 |
20 |
5 |
HP-2R7-J305VYJ42 |
3 |
500 |
250 |
6.3 |
22 |
2.5 |
HP-2R7-J335VYJ42 |
3.3 |
500 |
250 |
6.3 |
22 |
2.5 |
HP-2R7-J335TYJ07 |
3.3 |
240 |
120 |
8 |
20 |
3.5 |
HP-2R7-J335VYJ13 |
3.3 |
140 |
70 |
10 |
20 |
5 |
HP-2R7-J405VYJ13 |
4 |
140 |
70 |
10 |
20 |
5 |
HP-2R7-J405VYJ09 |
4 |
200 |
100 |
12.5 |
21 |
5 |
HP-2R7-J405VYJ07 |
4 |
200 |
100 |
8 |
20 |
3.5 |
HP-2R7-J475VYJ09 |
4.7 |
120 |
60 |
12.5 |
21 |
5 |
HP-2R7-J505VYJ13 |
5 |
180 |
90 |
10 |
20 |
5 |
HP-2R7-J505UYJ04 |
5 |
180 |
90 |
8 |
24 |
3.5 |
HP-2R5-J505TYJ07 |
5 |
180 |
90 |
8 |
20 |
3.5 |
HP-2R7-J605VYJ11 |
6 |
120 |
60 |
10 |
25 |
5 |
HP-2R7-J605VYJ04 |
6 |
300 |
150 |
8 |
24 |
3.5 |
HP-2R7-J605VYJ13 |
6 |
150 |
75 |
10 |
20 |
5 |
HP-2R7-J705VYJ13 |
7 |
160 |
80 |
10 |
20 |
5 |
HP-2R7-J705VYJ05 |
7 |
160 |
80 |
8 |
30 |
3.5 |
HP-2R7-J805VYJ09 |
8 |
100 |
50 |
12.5 |
21 |
5 |
HP-2R7-J106VYJ10 |
10 |
80 |
40 |
12.5 |
25 |
5 |
HP-2R7-J106VYJ19 |
10 |
80 |
40 |
12.5 |
34 |
5 |
HP-2R7-J106VYJ11 |
10 |
100 |
50 |
10 |
25 |
5 |
HP-2R7-J106VYJ12 |
10 |
110 |
55 |
10 |
30 |
5 |
HP-2R7-J106VYJ09 |
10 |
110 |
55 |
12.5 |
21 |
5 |
HP-2R7-J126VYJ19 |
12 |
80 |
40 |
12.5 |
34 |
5 |
HP-2R7-J126VYJ09 |
12 |
80 |
40 |
12.5 |
21 |
5 |
HP-2R7-J156VYJ21 |
15 |
60 |
30 |
16 |
26 |
7.5 |
HP-2R7-J156VYJ10 |
15 |
70 |
35 |
12.5 |
25 |
5 |
HP-2R7-J156VYJ19 |
15 |
76 |
38 |
12.5 |
34 |
5 |
HP-2R7-J156VYJ12 |
15 |
80 |
40 |
10 |
30 |
5 |
HP-2R7-J166VYJ20 |
16 |
76 |
38 |
16 |
20 |
7.5 |
HP-2R7-J186VYJ10 |
18 |
60 |
30 |
12.5 |
25 |
5 |
HP-2R7-J206VYJ22 |
20 |
46 |
23 |
16 |
34 |
7.5 |
HP-2R7-J206VYJ21 |
20 |
50 |
25 |
16 |
26 |
7.5 |
HP-2R7-J206UYJ10 |
20 |
50 |
25 |
12.5 |
25 |
5 |
HP-2R7-J206VYJ19 |
20 |
50 |
25 |
12.5 |
34 |
5 |
HP-2R7-J256VYJ22 |
25 |
40 |
20 |
16 |
34 |
7.5 |
HP-2R7-J256VYJ21 |
25 |
50 |
25 |
16 |
26 |
7.5 |
HP-2R7-J256UYJ19 |
25 |
60 |
30 |
12.5 |
34 |
5 |
HP-2R7-J306VYJ22 |
30 |
40 |
20 |
16 |
34 |
7.5 |
HP-2R7-J306VYJ19 |
30 |
44 |
22 |
12.5 |
34 |
5 |
HP-2R7-J306VYJ23 |
30 |
44 |
22 |
18 |
26 |
7.5 |
HP-2R7-J306VYJ39 |
30 |
44 |
22 |
16 |
32 |
7.5 |
HP-2R7-J356VYJ21 |
35 |
40 |
20 |
16 |
26 |
7.5 |
HP-2R7-J406VYJ22 |
40 |
40 |
20 |
16 |
34 |
7.5 |
HP-2R7-J406VYJ40 |
40 |
40 |
20 |
18 |
34 |
7.5 |
HP-2R7-J406VYJ25 |
40 |
40 |
20 |
18 |
41 |
7.5 |
HP-2R7-J406VYJ25 |
40 |
40 |
20 |
18 |
41 |
7.5 |
HP-2R7-J506VYJ25 |
50 |
40 |
20 |
18 |
41 |
7.5 |
HP-2R7-J506UYJ40 |
50 |
40 |
20 |
18 |
34 |
7.5 |
HP-2R7-J506VYJ40 |
50 |
40 |
20 |
18 |
34 |
7.5 |
HP-2R7-J606UYJ25 |
60 |
40 |
20 |
18 |
41 |
7.5 |
HP-2R7-J606VYJ25 |
60 |
40 |
20 |
18 |
41 |
7.5 |
HP-2R7-J906UYJ28 |
90 |
30 |
15 |
22 |
46 |
10 |
HP-2R7--J107VYJ27 |
100 |
30 |
15 |
22 |
42 |
10 |
HP-2R7-J107UYJ28 |
100 |
30 |
15 |
22 |
46 |
10 |
HP-2R7-J107VYJ29 |
100 |
30 |
15 |
25.4 |
40 |
10 |
HP-2R7-J127VYJ30 |
120 |
30 |
15 |
25.4 |
54 |
10 |
HP-2R7-J127VYJ28 |
120 |
30 |
15 |
22 |
46 |
10 |
HP-2R7-J127VYJ29 |
120 |
30 |
15 |
25.4 |
40 |
10 |
HP-2R7-J157VYJ30 |
150 |
30 |
15 |
25.4 |
54 |
10 |
HP-2R7-J157VYJ29 |
150 |
30 |
15 |
25.4 |
40 |
10 |
HP-2R7-J187UYJ30 |
180 |
20 |
10 |
25.4 |
54 |
10 |
HP-2R7-J187VYJ77 |
180 |
20 |
10 |
30 |
40 |
10 |
HP-2R7-J207VYJ33 |
200 |
20 |
10 |
35 |
61 |
10 |
HP-2R7-J207VYJ30 |
200 |
20 |
10 |
25.4 |
54 |
10 |
HP-2R7-J207VYJ31 |
200 |
20 |
10 |
30 |
50 |
10 |
HP-2R7-J227VYJ31 |
220 |
20 |
10 |
30 |
50 |
10 |
HP-2R7-J227VYJ33 |
220 |
20 |
10 |
35 |
61 |
10 |
HP-2R7-J247VYJ31 |
240 |
20 |
10 |
30 |
50 |
10 |
HP-2R7-J267VYJ31 |
260 |
20 |
10 |
30 |
50 |
10 |
HP-2R7-J267VYJ33 |
260 |
20 |
10 |
35 |
61 |
10 |
HP-2R7-J307VYJ32 |
300 |
20 |
10 |
35 |
54 |
10 |
HP-2R7-J307VYJ33 |
300 |
20 |
10 |
35 |
61 |
10 |
HP-2R7-J367UYJ33 |
360 |
7 |
3.5 |
35 |
61 |
10 |
HP-2R7-J407UYJ33 |
400 |
20 |
10 |
35 |
61 |
10 |
HP-2R7-J477VYJ33 |
470 |
10 |
5 |
35 |
61 |
10 |
HP-2R7-J507UYJ33 |
500 |
20 |
10 |
35 |
61 |
10 |
HP-2R7-J507UCJ59 |
500 |
2.5 |
1.5 |
33 |
76 |
/ |
HP-2R7-J557VYJ75 |
550 |
20 |
10 |
35 |
70 |
10 |
HP-2R7-J607VYJ75 |
600 |
20 |
10 |
35 |
70 |
10 |
HP-2R7-J657UNJ34 |
650 |
10 |
5 |
35 |
96 |
12.7 |
HP-2R7-J707UNJ34 |
700 |
10 |
5 |
35 |
96 |
12.7 |
HP-2R7-J727UCJ60 |
720 |
2 |
1.3 |
33 |
101 |
/ |
HP-2R7-J807UNJ34 |
800 |
10 |
5 |
35 |
96 |
12.7 |
HP-2R7-J108UNJ47 |
1000 |
10 |
5 |
51 |
71 |
21.8 |
HP-2R7-J128UNJ49 |
1200 |
6 |
3 |
51 |
108 |
21.8 |
HP-2R7-J158UNJ49 |
1500 |
6 |
3 |
51 |
108 |
21.8 |
HP-2R7-J208UNJ50 |
2000 |
4 |
2 |
51 |
133 |
21.8 |
HP-2R7-J248UNJ50 |
2400 |
4 |
2 |
51 |
133 |
21.8 |
HP-2R7-J308UNJ52 |
3000 |
4 |
2 |
64 |
133 |
28.2 |
HP-2R7-J357UCJ45 |
350 |
3 |
1.6 |
35 |
62 |
/ |
HP-2R7-J308ULJ70 |
3000 |
0.29 |
0.25 |
60 |
140 |
/ |
HP-2R7-J308UMJ70 |
3000 |
0.29 |
0.25 |
60 |
140 |
/ |
HE 2.7V Series products:
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
HE-2R7-J104VYJ03 |
0.1 |
1800 |
900 |
5 |
12 |
2 |
HE-2R7-J204VYJ01 |
0.2 |
2400 |
1200 |
5 |
10 |
2 |
HE-2R7-J354VYJ03 |
0.35 |
1200 |
600 |
5 |
12 |
2 |
HE-2R7-J504VYJ17 |
0.5 |
1200 |
600 |
6.3 |
12.5 |
2.5 |
HE-2R7-J504VYJ16 |
0.5 |
1200 |
600 |
6.3 |
10 |
2.5 |
HE-2R7-J704VYJ06 |
0.7 |
1200 |
600 |
8 |
13 |
3.5 |
HE-2R7-J105VYJ06 |
1 |
1200 |
600 |
8 |
13 |
3.5 |
HE-2R7-J205VYJ13 |
2 |
500 |
250 |
10 |
20 |
5 |
HE-2R7-J205VYJ07 |
2 |
500 |
250 |
8 |
20 |
3.5 |
HE-2R7-J335TYJ07 |
3.3 |
500 |
250 |
8 |
20 |
3.5 |
HE-2R7-J335TYJ04 |
3.3 |
500 |
250 |
8 |
24 |
3.5 |
HE-2R7-J335VYJ13 |
3.3 |
400 |
200 |
10 |
20 |
5 |
HE-2R7-J475VYJ09 |
4.7 |
240 |
120 |
12.5 |
21 |
5 |
HE-2R7-J805VYJ09 |
8 |
200 |
100 |
12.5 |
21 |
5 |
HE-2R7-J106VYJ10 |
10 |
160 |
80 |
12.5 |
25 |
5 |
HE-2R7-J106VYJ19 |
10 |
120 |
60 |
12.5 |
34 |
5 |
HE-2R7-J126VYJ19 |
12 |
100 |
50 |
12.5 |
34 |
5 |
HE-2R7-J156VYJ21 |
15 |
100 |
50 |
16 |
26 |
7.5 |
HE-2R7-J206VYJ22 |
20 |
100 |
50 |
16 |
34 |
7.5 |
Send Inquiry to This Supplier
You May Also Like
-
Coin Type SeriesUS$ 1 - 10MOQ: 100 Pieces -
2.7V High Temperature SeriesUS$ 1 - 10MOQ: 100 Pieces
-
5.5V High Temperature SeriesUS$ 1 - 10MOQ: 100 Pieces
-
2.3V 3.8V Hybrid Capacitor SeriesUS$ 1 - 10MOQ: 100 Pieces
-
Low ESR Winding Type SeriesUS$ 1 - 10MOQ: 100 Pieces
-
Commercial SupercapacitorsUS$ 5 - 150MOQ: 100000 Pieces
-
5.5V Combined SupercapacitorUS$ 5 - 150MOQ: 100000 Pieces
-
5.5V Fully Sealed (Waterproof) SupercapacitorUS$ 5 - 150MOQ: 100000 Pieces
-
0.1F~1.5F 5.5V Coin Type Supercapacitor for SaleUS$ 5 - 150MOQ: 10000 Pieces
-
Combined Type SeriesUS$ 5 - 150MOQ: 100000 Pieces
